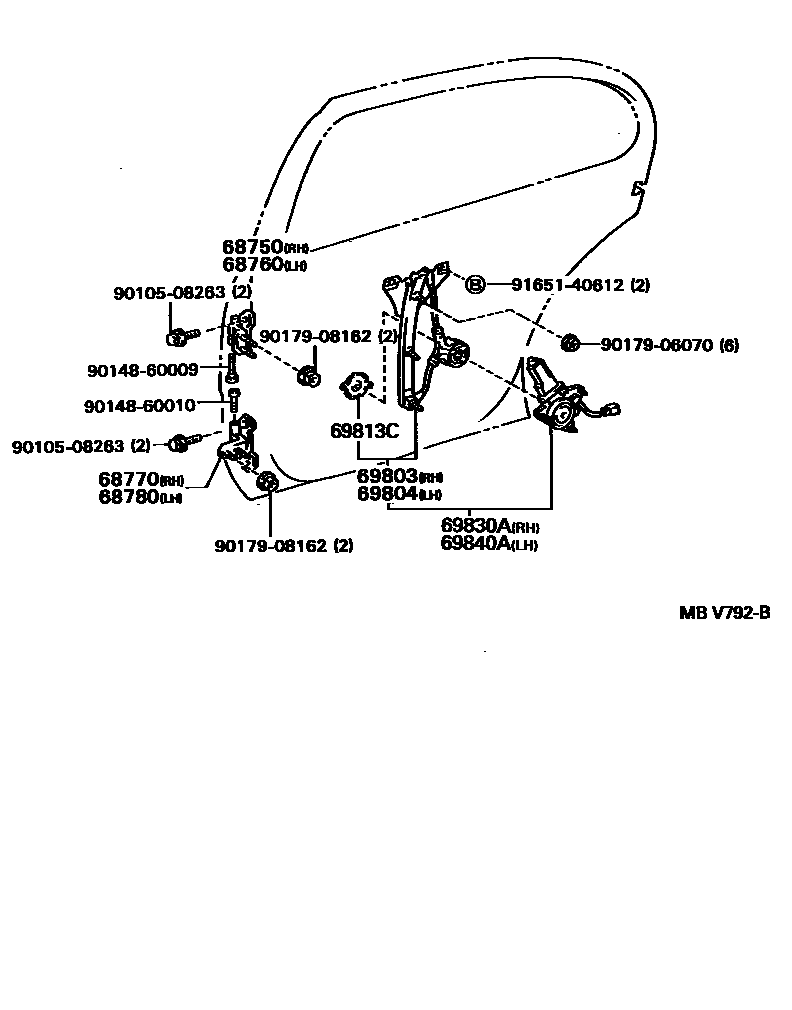

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-30080iJZS147199303-199708

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-30090iJZS147199303-199708

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-30060iJZS147199303-199708

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-30080iJZS147199303-199708

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-30190iJZS147199303-199708

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-30190iJZS147199303-199708

69813CPLATE, REAR DOOR POWER WINDOW REGULATOR BASE

main69813-32010iJZS147199303-199708

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-30250iJZS147199303-199708

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-30250iJZS147199303-199708

9010508263

main90105-08263

9014860009

main90148-60009

9014860010

main90148-60010

9017906070

main90179-06070

9017908162

main90179-08162

9165140612

main91651-40612

15 parts on this diagram · 1 diagram in section
