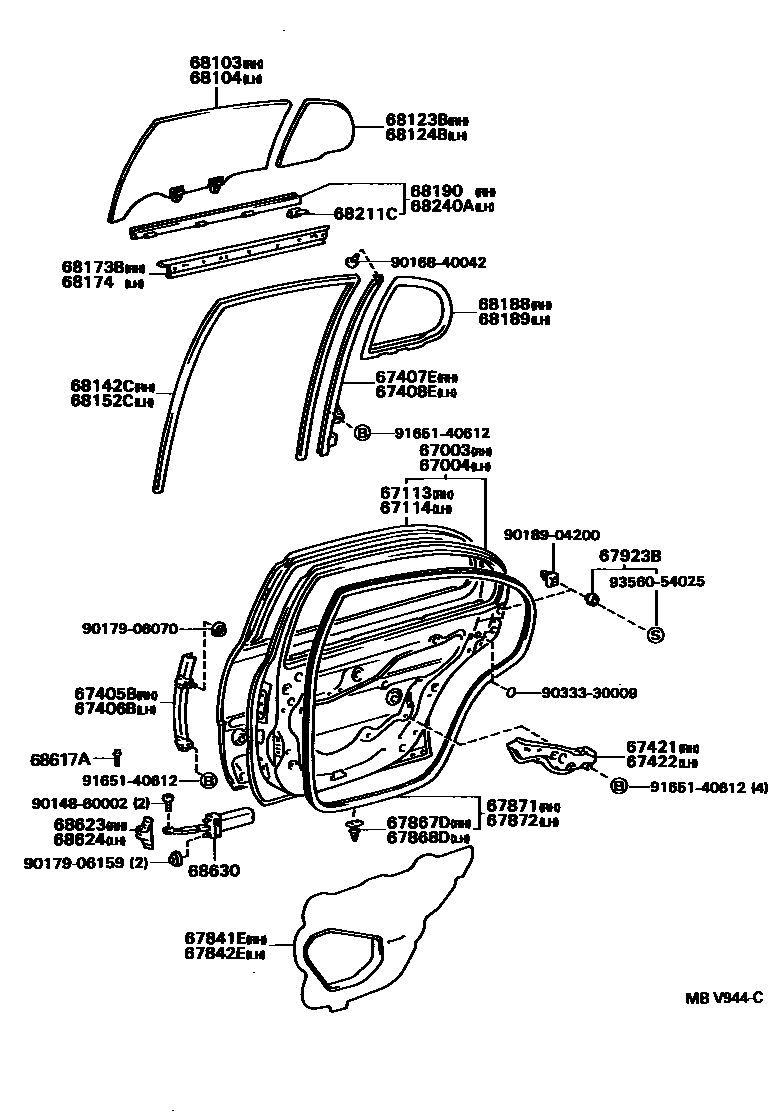

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67421FRAME, REAR DOOR WINDOW, FRONT UPPER RH
67422FRAME, REAR DOOR WINDOW, FRONT UPPER LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67923BCUSHION, REAR DOOR STIFFENER, NO.1
68103GLASS SUB-ASSY, REAR DOOR, RH
*TEM,T=3.5,GRAY
*TEM,T=3.5,BRONZE
68104GLASS SUB-ASSY, REAR DOOR, LH
*TEM,T=3.5,GRAY
*TEM,T=3.5,BRONZE
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*TEM,T=3.5,GRAY
*TEM,T=3.5,BRONZE
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*TEM,T=3.5,GRAY
*TEM,T=3.5,BRONZE
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH
68174WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68211CCLIP(FOR REAR DOOR GLASS WEATHERSTRIP)
68240AWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH
68617APIN, REAR DOOR CHECK
68623COVER, DOOR CHECK, RH
68624COVER, DOOR CHECK, LH
68630CHECK ASSY, REAR DOOR
RH
LH
9014860002
9016840042
9017906070
9017906159
9018904200
9033330009
9165140612
9356054025
42 parts on this diagram · 4 diagrams in section
