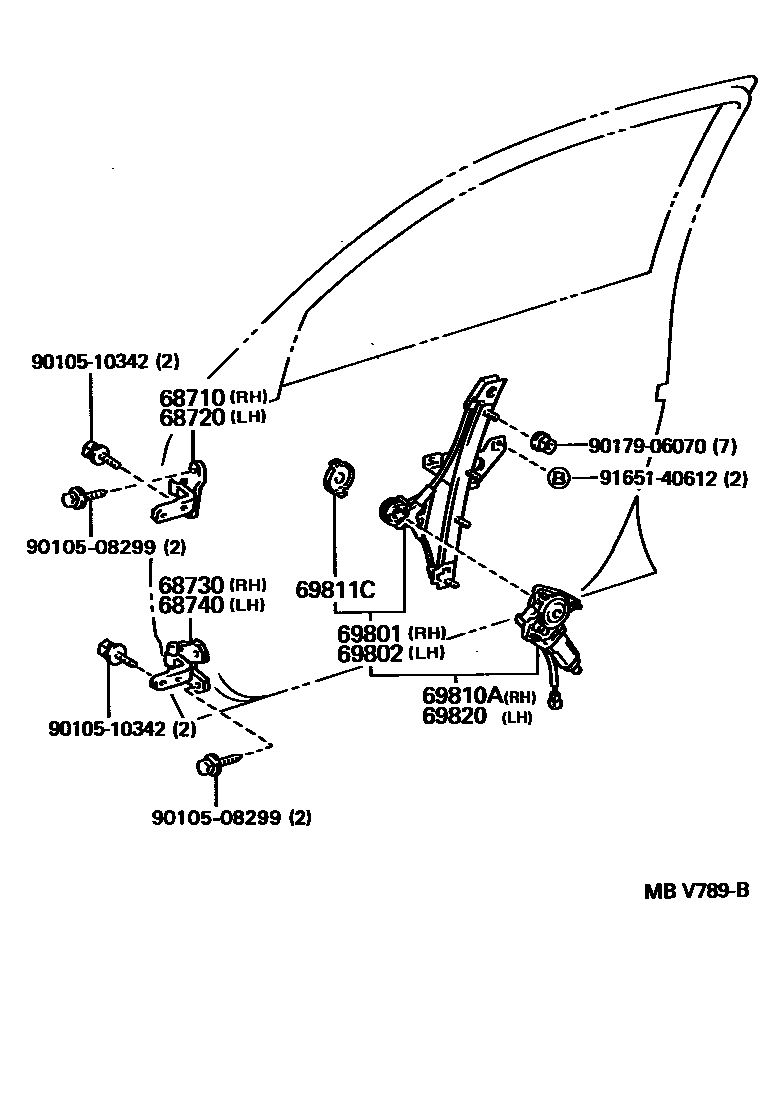

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-30140iJZS147199303-199708

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-30060iJZS147199303-199708

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-30110iJZS147199303-199708

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68730-30110iJZS147199303-199708

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-30190iJZS147199303-199708

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-30190iJZS147199303-199708

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-30330iJZS147199303-199708

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69811-32040iJZS147199303-199708

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-30260iJZS147199303-199708

9010508299

main90105-08299

9010510342

main90105-10342

9017906070

main90179-06070

9165140612

main91651-40612

13 parts on this diagram · 1 diagram in section
