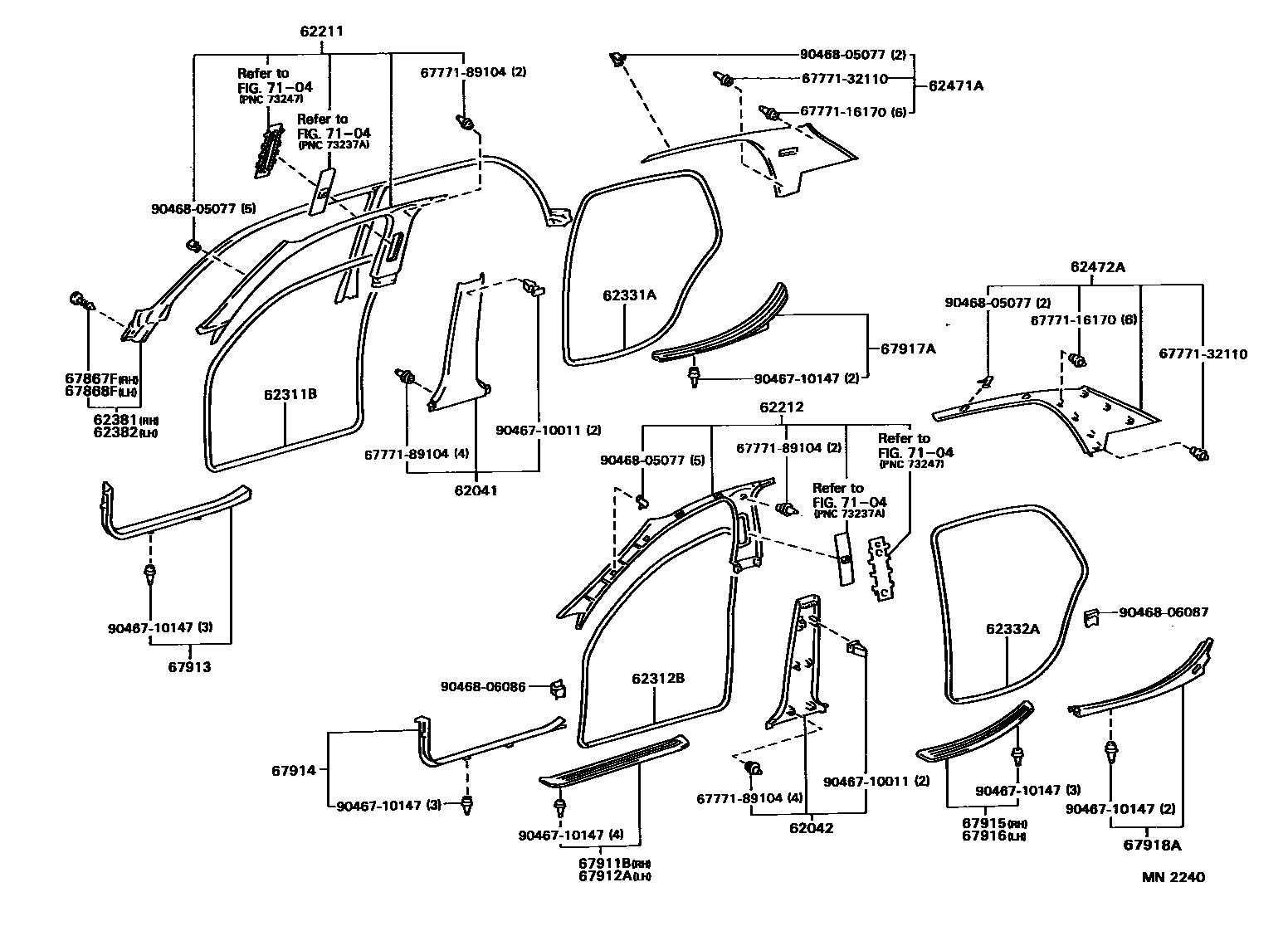

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62041PANEL SUB-ASSY, CENTER PILLAR GARNISH, LOWER RH
62042PANEL SUB-ASSY, CENTER PILLAR GARNISH, LOWER LH
62211GARNISH, FRONT PILLAR, RH
62212GARNISH, FRONT PILLAR, LH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH
62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH
62471AGARNISH, ROOF SIDE, INNER RH
62472AGARNISH, ROOF SIDE, INNER LH
67867FRETAINER, DOOR WEATHERSTRIP, RH
67868FRETAINER, DOOR WEATHERSTRIP, LH
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913PLATE, FRONT DOOR SCUFF, RH
IVORY,TRIM0#
GRAY,TRIM1#
LI.SPRUCE,TRIM6#
67914PLATE, FRONT DOOR SCUFF, LH
IVORY,TRIM0#
GRAY,TRIM1#
LI.SPRUCE,TRIM6#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917APLATE, REAR DOOR SCUFF, RH
IVORY,TRIM0#
GRAY,TRIM1#
LI.SPRUCE,TRIM6#
67918APLATE, REAR DOOR SCUFF, LH
IVORY,TRIM0#
GRAY,TRIM1#
LI.SPRUCE,TRIM6#
7104
6777116170WEATHERSTRIP, BACK DOOR TRIM, RH
6777132110WEATHERSTRIP, BACK DOOR TRIM, RH
6777189104WEATHERSTRIP, BACK DOOR TRIM, RH
9046710011
9046710147
9046805077
9046806086
9046806087
31 parts on this diagram · 2 diagrams in section
