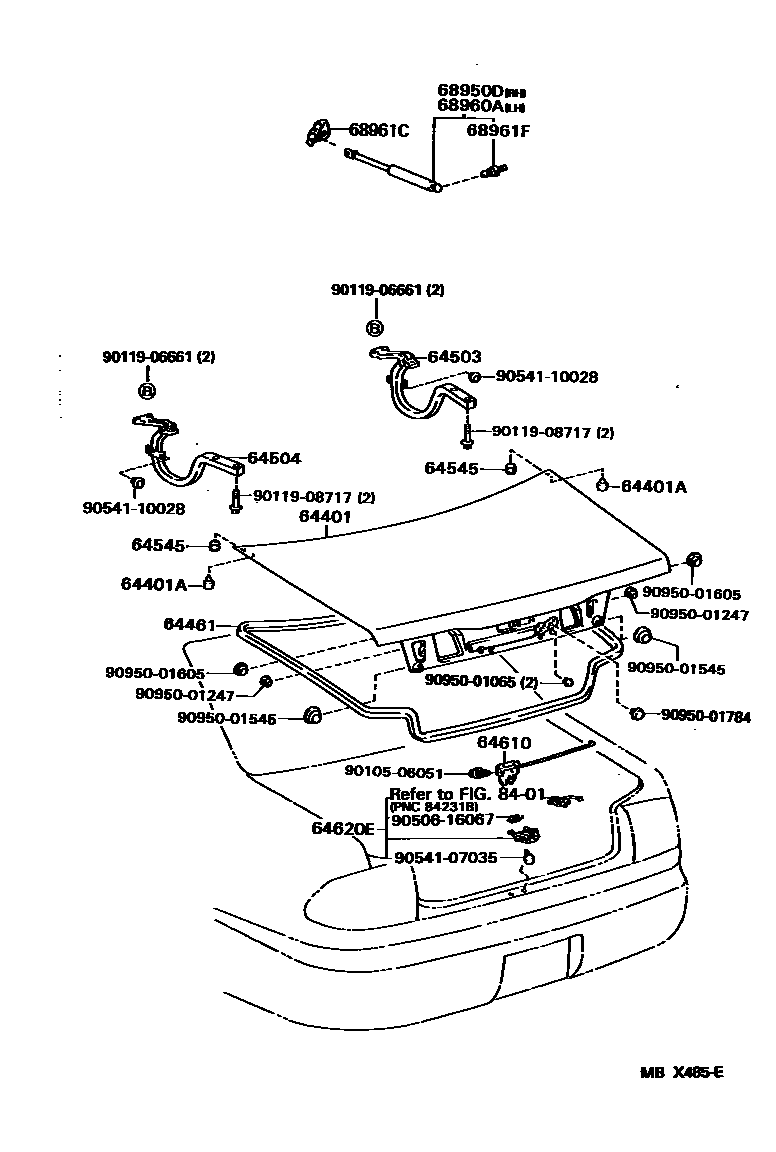

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-30830iJZS147199303-199708

main64401-30890iJZS147..GCC199508-199708

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06041iJZS147199303-199401

sub90541-06059

main90541-06056iJZS147199401-199708

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-30220iJZS147199303-199708

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64510-30150iJZS147199303-199708

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64520-30100iJZS147199303-199708

64545CUSHION, LUGGAGE DOOR HINGE

main90541-10028iJZS147199303-199708

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-30060iJZS147199303-199708

main64600-30140iJZS147..GCC199508-199708

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64602-50010iJZS147199303-199309

sub64620-30100

main64620-30091iJZS147199309-199708

68950DSTAY ASSY, LUGGAGE DOOR, RH

main64530-39035iJZS147199303-199708

68960ASTAY ASSY, LUGGAGE DOOR, LH

main64540-39035iJZS147199303-199708

68961CBOLT, LUGGAGE DOOR STAY

main64127-30110iJZS147199303-199708

68961FBOLT, BACK DOOR STAY

main68961-10030iJZS147199303-199708

8401

9010506051

main90105-06051

9011906661

main90119-06661

9011908717

main90119-08717

9050616067

main90506-16067

9054107035

main90541-07035

9054110028

main90541-10028

9095001065

main90950-01065

9095001247

main90950-01247

9095001545

main90950-01545

9095001605

main90950-01605

9095001784

main90950-01784

24 parts on this diagram · 1 diagram in section
