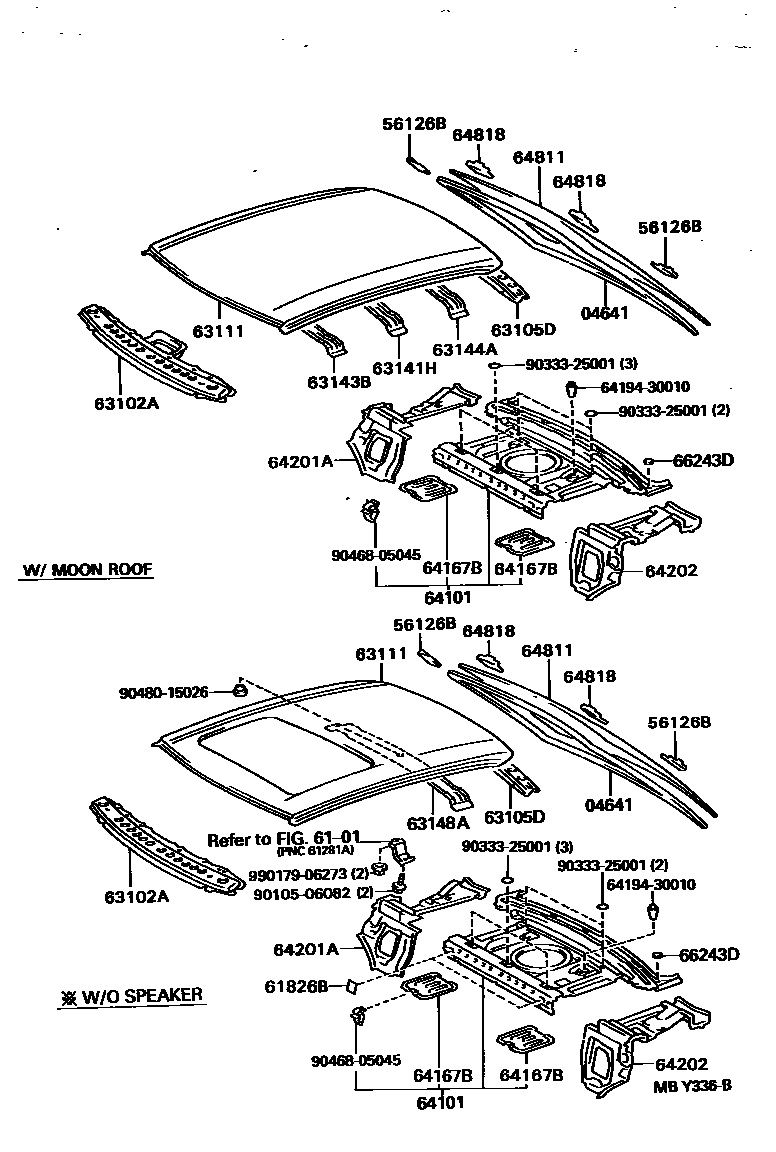

ROOF PANEL & BACK WINDOW GLASS
56126BSPACER, WINDSHIELD GLASS, NO.2
6101
61826BPLATE, NOISE CONTROL, NO.3
UPPER BACK PANEL
63102APANEL SUB-ASSY, WINDSHIELD HEADER
W(MOON ROOF)
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
63141HREINFORCEMENT, ROOF PANEL, CENTER
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
64101PANEL SUB-ASSY, UPPER BACK
64167BCOVER, UPPER BACK PANEL HOLE, NO.3
64201AEXTENSION SUB-ASSY, PACKAGE TRAY, RH
64202EXTENSION SUB-ASSY, PACKAGE TRAY, LH
64811GLASS, BACK WINDOW
*EHTT,T=3.5,BRONZE,SINGAPORE SPEC OR HONGKONG SPEC
*EHTT,T=3.5,GRAY,SINGAPORE SPEC OR HONGKONG SPEC
sub64801-3A011
*EHTT,T=3.5,BRONZE
64818SPACER, BACK WINDOW GLASS
66243DPROTECTOR, REAR BODY, NO.1
6419430010BRACKET, NOISE SHUTTER SUPPORT
main64194-30010
9010506082
main90105-06082
9017906273
main90179-06273
9033325001
main90333-25001
9046805045
main90468-05045
9048015026
main90480-15026
24 parts on this diagram · 2 diagrams in section
