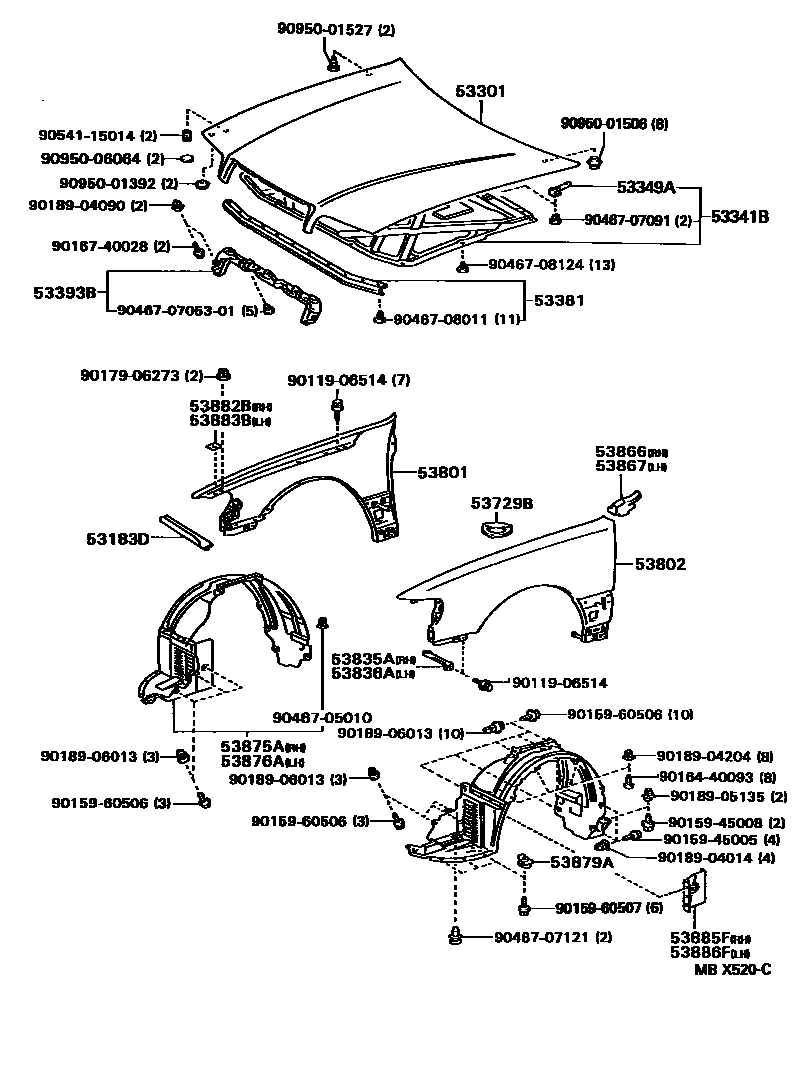

HOOD & FRONT FENDER

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-30100iJZS147199303-199708

RH

sub53183-30080

main53184-30060iJZS147199303-199708

LH

sub53184-30040

53301HOOD SUB-ASSY

main53301-30310iJZS147199303-199708

53341BINSULATOR, HOOD

main53341-30150iJZS147199303-199508

sub53341-30151

main53341-30151iJZS147199508-199708

main53341-30170iJZS147..LHD..EUR199308-199408

COLD AREA

sub53341-30171

main53341-30170iJZS147..LHD..EUR199408-199508

FINLAND OR NORWAY SPEC

sub53341-30171

main53341-30171iJZS147..LHD..EUR199508-199607

FINLAND OR NORWAY SPEC

53349ARETAINER, HOOD INSULATOR

main53349-30010iJZS147199303-199708

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-30090iJZS147199303-199708

53393BPROTECTOR, HOOD, FRONT

main53393-30030iJZS147199303-199708

53729BREINFORCEMENT, FRONT SPRING SUPPORT, NO.3

main53729-30020iJZS147199303-199708

53801FENDER SUB-ASSY, FRONT RH

main53801-3F250iJZS147199303-199708

53802FENDER SUB-ASSY, FRONT LH

main53802-3F020iJZS147199303-199708

main53802-3F090iJZS147..GCC199508-199708

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-30050iJZS147199303-199708

53836ABRACE, FRONT FENDER TO APRON, LH

main53835-30050iJZS147199303-199708

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-30060iJZS147199303-199708

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-30060iJZS147199303-199708

53875ALINER, FRONT FENDER, RH

main53875-30050iJZS147199303-199708

53876ALINER, FRONT FENDER, LH

main53876-30030iJZS147199303-199708

53879ARETAINER, FRONT FENDER LINER

main53879-17020iJZS147199303-199708

53882BSEAL, FRONT FENDER, RH

main53882-30030iJZS147199303-199708

53883BSEAL, FRONT FENDER, LH

main53882-30030iJZS147199303-199708

53885FSHIELD, FRONT FENDER SPLASH, REAR RH

main53885-30050iJZS147199303-199708

53886FSHIELD, FRONT FENDER SPLASH, REAR LH

main53886-30050iJZS147199303-199708

9011906514

main90119-06514

9015945005

main90159-45005

9015945008

main90159-45008

9015960506

main90159-60506

9015960507

main90159-60507

9016440093

main90164-40093

9016740028

main90167-40028

9017906273

main90179-06273

9018904014

main90189-04014

9018904090

main90189-04090

9018904204

main90189-04204

9018905135

main90189-05135

9018906013

main90189-06013

9046705010

main90467-05010

904670705301

main90467-0705301

9046707091

main90467-07091

9046707121

main90467-07121

9046708011

main90467-08011

9046708124

main90467-08124

9054115014

main90541-15014

9095001392

main90950-01392

9095001506

main90950-01506

9095001527

main90950-01527

9095006064

main90950-06064

44 parts on this diagram · 1 diagram in section
