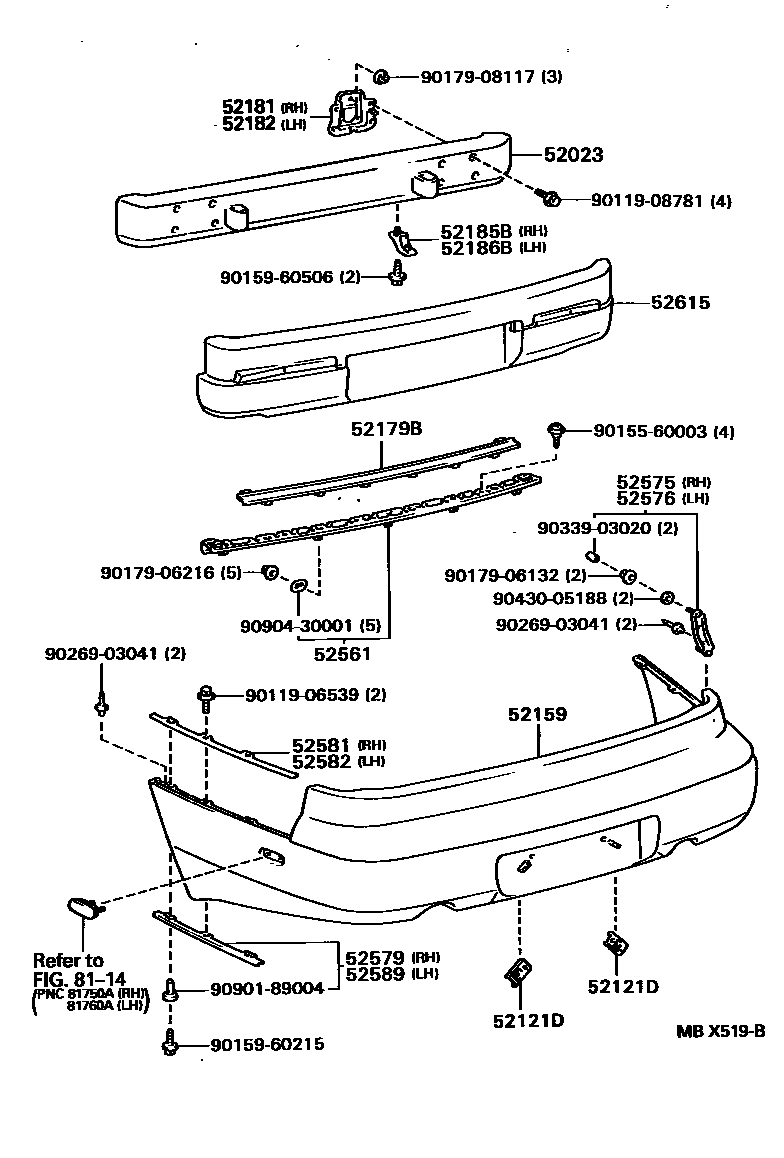

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-30190iJZS147199303-199708

52121DBRACKET, REAR LICENSE PLATE MOUNTING

main52121-20110iJZS147199303-199708

52159COVER, REAR BUMPER

main52159-30919iJZS147199303-199708

52179BPLATE, REAR BUMPER BAR

main52179-30110iJZS147199303-199708

52181ARM, REAR BUMPER, RH

main52181-30260iJZS147199303-199708

52182ARM, REAR BUMPER, LH

main52181-30260iJZS147199303-199708

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-30070iJZS147199303-199708

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-30070iJZS147199303-199708

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-30120iJZS147199303-199708

52575RETAINER, REAR BUMPER SIDE, RH

main52575-30090iJZS147199303-199708

52576RETAINER, REAR BUMPER SIDE, LH

main52576-30080iJZS147199303-199708

52579RETAINER, REAR BUMPER SIDE, NO.3

main52579-30050iJZS147199303-199708

52581PROTECTOR, REAR BUMPER, RH

main52581-30030iJZS147199303-199708

52582PROTECTOR, REAR BUMPER, LH

main52582-30020iJZS147199303-199708

52589RETAINER, REAR BUMPER END, NO.2

main52589-30060iJZS147199303-199708

52615ABSORBER, REAR BUMPER ENERGY

main52615-30130iJZS147199303-199708

8114

9011906539

main90119-06539

9011908781

main90119-08781

9015560003

main90155-60003

9015960215

main90159-60215

9015960506

main90159-60506

9017906132

main90179-06132

9017906216

main90179-06216

9017908117

main90179-08117

9026903041

main90269-03041

9033903020

main90339-03020

9043005188

main90430-05188

9090189004

main90901-89004

9090430001

main90904-30001

30 parts on this diagram · 1 diagram in section
