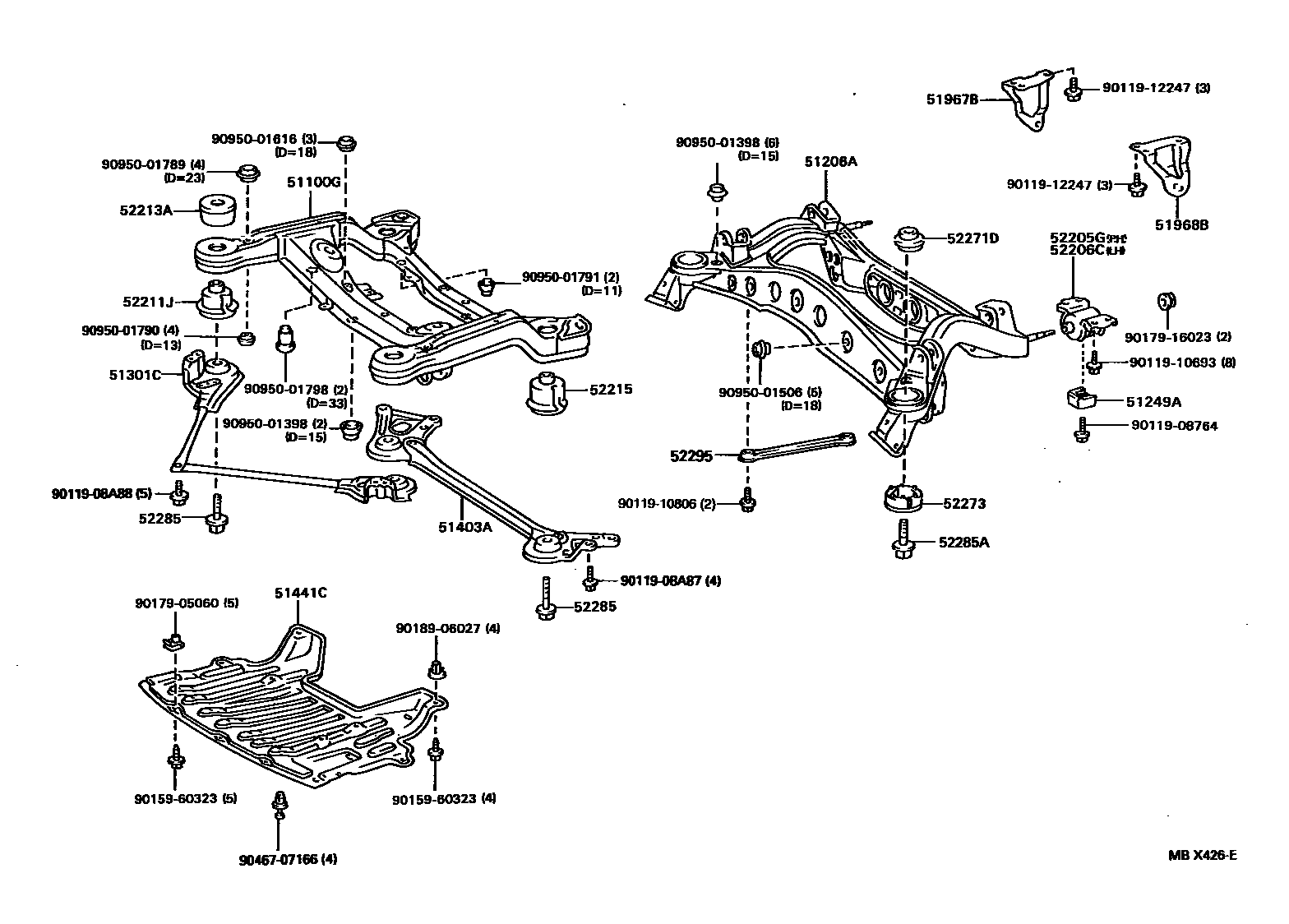

SUSPENSION CROSSMEMBER & UNDER COVER
51100GFRAME ASSY, FRONT
51206AMEMBER SUB-ASSY, REAR SUSPENSION
51249ADAMPER, REAR SUSPENSION MEMBER
51301CROD SUB-ASSY, FRONT FRAME
51403ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51441CCOVER, ENGINE UNDER, RH
51967BHOOK, TRANSPORT, REAR RH
51968BHOOK, TRANSPORT, REAR LH
52205GCUSHION SUB-ASSY, BODY MOUNTING, LOWER
52206CCUSHION SUB-ASSY, BODY MOUNTING, REAR LH
52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52273STOPPER, REAR SUSPENSION MEMBER, LOWER
52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285ABOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52295BRACE, REAR SUSPENSION MEMBER, RH
9011908764
9011908A87
9011908A88
9011910693
9011910806
9011912247
9015960323
9017905060
9017916023
9018906027
9046707166
9095001398
9095001506
9095001616
9095001789
9095001790
9095001791
9095001798
36 parts on this diagram · 1 diagram in section
