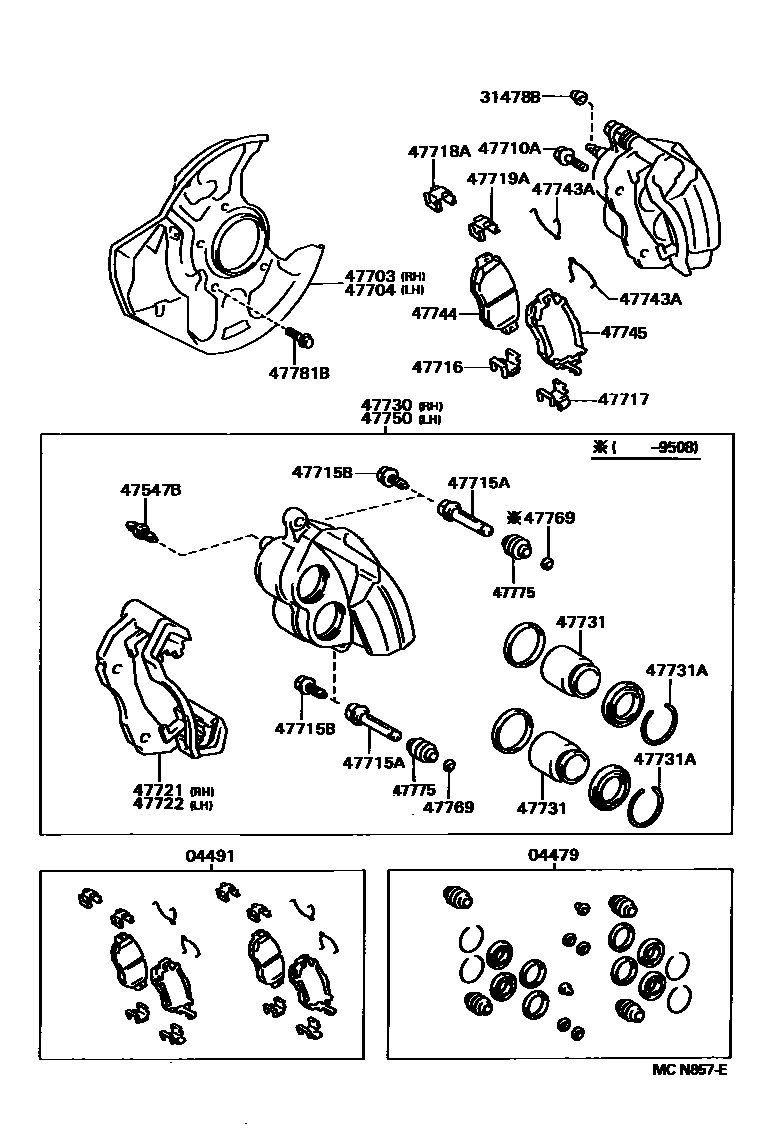

FRONT DISC BRAKE CALIPER & DUST COVER

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-30120i¥3,550199303-199503

main04479-30121i¥3,420199503-199508

main04479-30190i¥3,420199508-199708

sub04479-30191¥3,420

04491PAD KIT, DISC BRAKE, FRONT

main04491-30330i¥14,300199303-199304

sub04491-50120¥14,300

main04491-30341i¥14,500199308-199410

sub04465-30110¥13,200

main04491-30350i¥14,400199410-199505

sub04465-30110¥13,200

main04491-50120i¥14,300199304-199411

sub04491-50121

main04491-50180i¥11,000199411-199505

sub04465-50040¥13,400

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010i¥160199303-199708

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030i¥180199303-199708

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47781-30150i¥2,210199303-199508

sub47781-30191¥2,220

sub90148-60028¥200

main47781-30190i¥2,210199508-199609

sub47781-30191¥2,220

sub90148-60028¥200

main47781-30191i¥2,220199609-199708

sub47781-30210¥2,460

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47782-30150i¥2,210199303-199508

sub47782-30191¥2,220

sub90148-60028¥200

main47782-30190i¥2,210199508-199609

sub47782-30191¥2,220

sub90148-60028¥200

main47782-30191i¥2,220199609-199708

sub47782-30210¥2,460

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12228i¥270199303-199708

*12-1.25PX32-24

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070i¥620199509-199708

SUB PIN SIDE

main47715-30060i¥820199509-199708

MAIN PIN SIDE

main47715-50010i¥460199508-199509

SUB PIN SIDE

main47715-50020i¥750199303-199508

main47715-50030i¥510199508-199509

MAIN PIN SIDE

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164i¥90199303-199708

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-24010i¥460199303-199708

main47716-50050i¥370199304-199411

sub47716-50051¥370

main47716-50051i¥370199411-199508

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-24020i¥460199303-199708

main47716-50060i¥370199304-199411

sub47716-50061¥370

main47716-50061i¥370199411-199508

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-24010i¥390199303-199411

main47717-30070i¥370199508-199708

main47717-50051i¥360199411-199508

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-24020i¥390199303-199411

main47717-30080i¥370199508-199708

main47717-50061i¥360199411-199508

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-30130i¥8,600199303-199402

sub47721-30132¥8,600

main47721-30132i¥8,600199402-199508

main47721-30180i¥9,300199508-199708

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-30050i¥8,600199303-199402

sub47722-30052¥8,600

main47722-30052i¥8,600199402-199508

main47722-30100i¥9,300199508-199708

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-30230i¥54,100199303-199304

sub47730-30231¥54,300

main47730-30231i¥54,300199304-199402

sub47730-30233¥54,300

main47730-30233i¥54,300199402-199508

main47730-30400i¥53,600199508-199708

47731PISTON, FRONT DISC BRAKE

main47731-30140i¥1,870199509-199708

main47731-50030i¥1,870199303-199509

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-52006i¥170199509-199708

main90522-50002i¥230199303-199509

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-30020i¥310199303-199708

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14130i¥270199304-199708

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-14060i¥270199304-199708

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-30230i¥54,100199303-199304

sub47750-30231¥54,300

main47750-30231i¥54,300199304-199402

sub47750-30233¥54,300

main47750-30233i¥54,300199402-199508

main47750-30400i¥53,600199508-199708

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010i¥50199508-199708

main47769-50010i¥50199303-199508

SUB PIN SIDE

main47769-50020i¥360199303-199508

MAIN PIN SIDE

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070i¥840199509-199708

sub47775-50010¥580

main47775-50010i¥580199303-199509

47781BBOLT(FOR DUST COVER SETTING)

main90119-06227i¥90199303-199609

*6-1.0PX14-7.5

main90148-60028i¥200199609-199708

*6-1.0PX14-10.5

25 parts on this diagram · 3 diagrams in section
