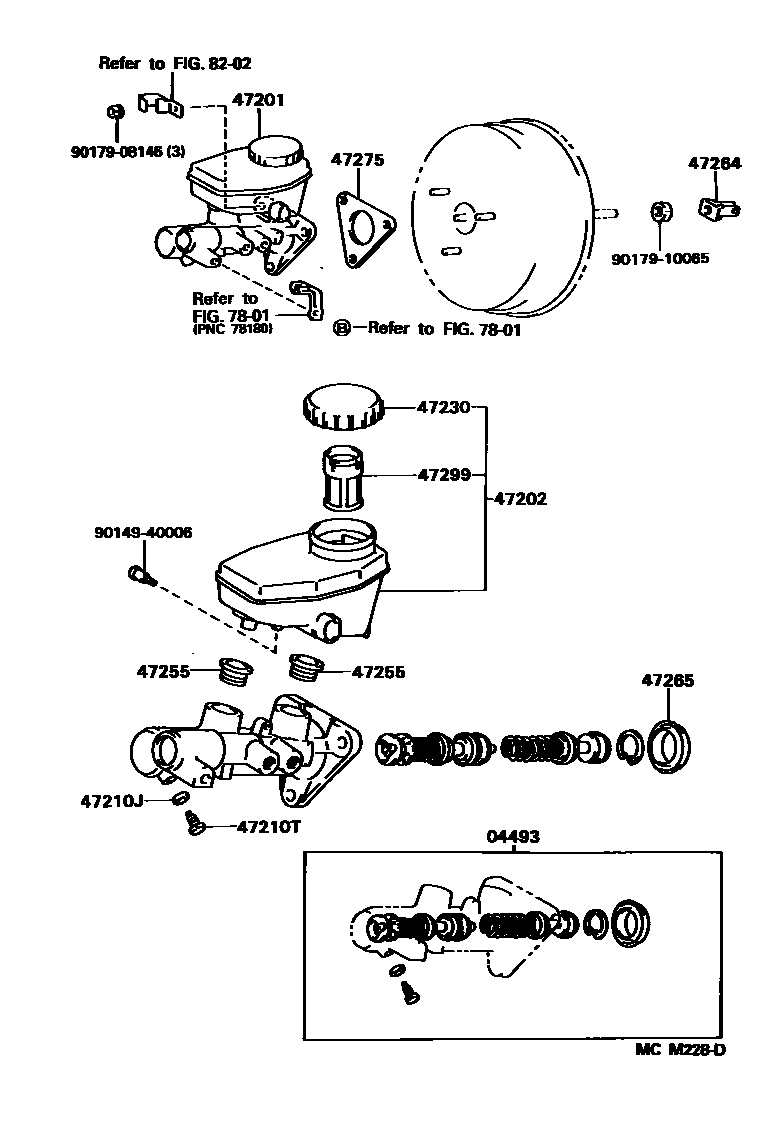

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-24050iJZS147199303-199508

sub04493-30240

main04493-30240iJZS147199508-199708

sub04493-30241

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30530iJZS147..GCC199303-199508

main47201-30540iJZS147..RHD199308-199508

main47201-30550iJZS147..LHD..EUR199308-199508

main47201-30640iJZS147..GCC199508-199708

main47201-30650iJZS147..RHD199508-199708

main47201-30660iJZS147..LHD..EUR199508-199708

main47201-30670iJZS147..LHD..EUR199508-199708

W/O(*TRC)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-24010iJZS147..GCC199303-199508

sub47220-30080

main47202-30190iJZS147..RHD199308-199508

sub47220-30090

main47202-30200iJZS147..LHD..EUR199308-199508

sub47220-30100

main47220-30080iJZS147..GCC199508-199708

main47220-30090iJZS147..RHD199508-199708

main47220-30100iJZS147..LHD..EUR199508-199708

main47220-30110iJZS147..LHD..EUR199508-199708

W/O(*TRC)

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iJZS147..RHD;JZS147..GCC199303-199708

main90430-06104iJZS147..LHD..EUR199508-199708

W/O(*TRC)

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iJZS147..RHD;JZS147..GCC199303-199708

main90109-06077iJZS147..LHD..EUR199508-199708

W/O(*TRC)

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20100iJZS147..EUR199308-199708

sub47230-47090

main47230-24010iJZS147..GCC199303-199708

sub47230-47090

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iJZS147199303-199708

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-50010iJZS147199303-199708

47265BOOT, MASTER CYLINDER

main47265-22030iJZS147199303-199708

47275GASKET, BRAKE MASTER CYLINDER

main47275-32010iJZS147199303-199708

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iJZS147199303-199708

7801

8202

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

16 parts on this diagram · 1 diagram in section
