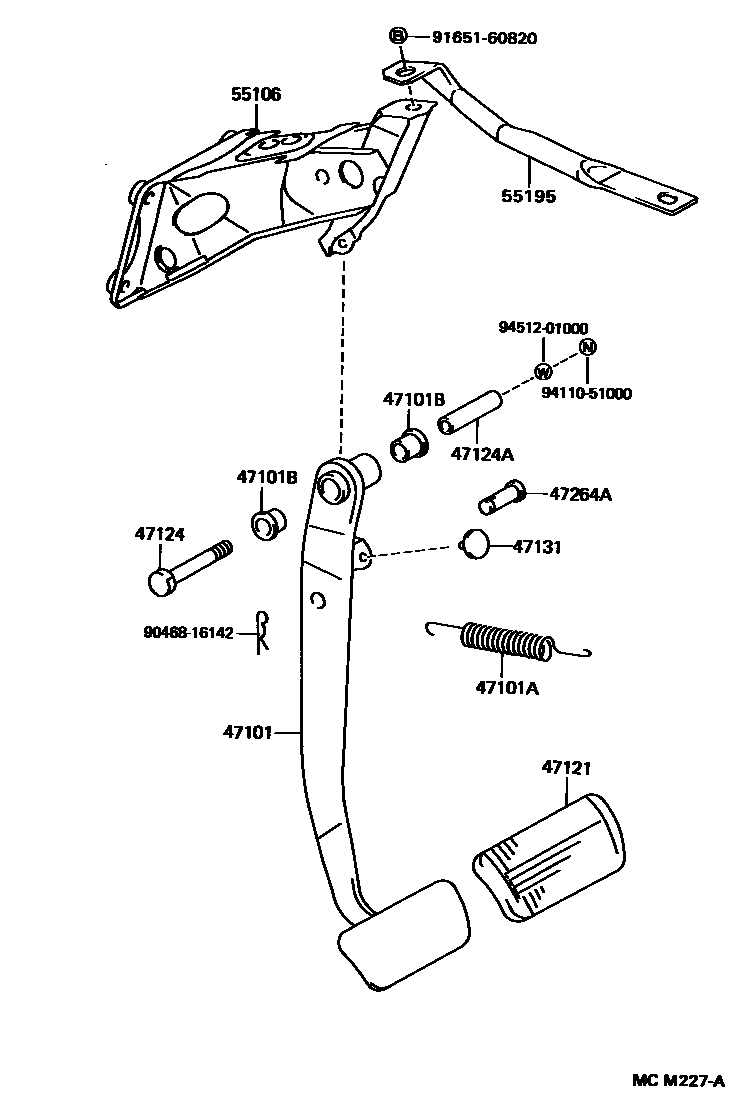

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-30310iJZS147..RHD199308-199508

main47101-30360iJZS147..LHD199303-199508

sub47101-30361

main47101-30361iJZS147..LHD199508-199708

main47101-30390iJZS147..RHD199508-199708

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12033iJZS147199303-199508

main90507-14041iJZS147199508-199708

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iJZS147199308-199708

main90386-13192iJZS147199303-199308

47121PAD, BRAKE PEDAL

main47121-14010iJZS147199303-199508

main47121-50010iJZS147199508-199708

47124SHAFT, BRAKE PEDAL

main90101-10015iJZS147199508-199708

main90101-10039iJZS147199303-199508

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iJZS147199303-199708

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iJZS147199303-199708

47264APIN(FOR PUSH ROD)

main90249-10064iJZS147199303-199708

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-30220iJZS147..RHD199308-199708

main55106-30260iJZS147..LHD199303-199708

55195STAY, PEDAL BRACKET, NO.1

main55195-30030iJZS147..RHD199308-199708

main55195-30040iJZS147..LHD199303-199708

9046816142

main90468-16142

9165160820

main91651-60820

9411051000

main94110-51000

9451201000

main94512-01000

14 parts on this diagram · 1 diagram in section
