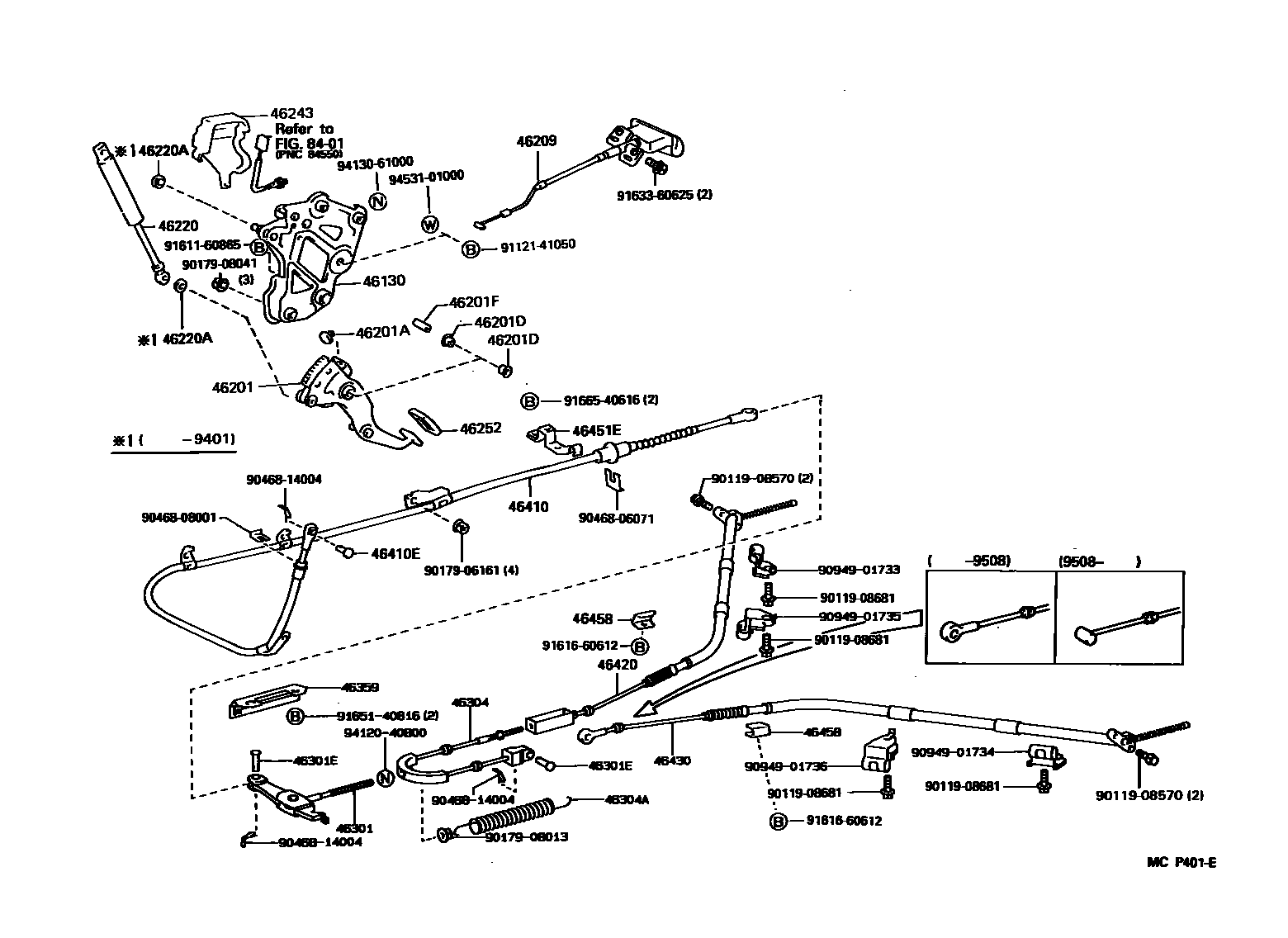

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46130BRACKET ASSY, PARKING BRAKE PEDAL

main46130-30130iJZS147..RHD199308-199708

main46130-30150iJZS147..LHD199303-199708

46201PEDAL SUB-ASSY, PARKING BRAKE

main46201-30120iJZS147..RHD199308-199708

main46201-50010iJZS147..LHD199303-199708

46201ACUSHION(FOR PARKING BRAKE PEDAL)

main90541-06036iJZS147..LHD199303-199403

46201DBUSH(FOR PARKING BRAKE PEDAL)

main90386-16022iJZS147..LHD199303-199708

main90386-30002iJZS147..RHD199308-199708

LH

main90386-30003iJZS147..RHD199308-199708

RH

46201FCOLLAR(FOR PARKING BRAKE PEDAL)

main90387-10109iJZS147..LHD199303-199708

46209CABLE SUB-ASSY, PARKING BRAKE RELEASE

main46209-30090-A0iJZS147..RHD199308-199609

IBORY,TRIM0#

sub46209-30091

main46209-30090-B0iJZS147..RHD199308-199609

GRAY,TRIM1#

sub46209-30091

main46209-30090-G0iJZS147..RHD199308-199609

LIGHT SPRUCE,TRIM6#

sub46209-30091

main46209-30091-A0iJZS147..RHD199609-199708

IVORY,TRIM0#

main46209-30091-B0iJZS147..RHD199609-199708

GRAY,TRIM1#

main46209-30091-G0iJZS147..RHD199609-199708

LI.SPRUCE,TRIM6#

main46209-30120-A0iJZS147..LHD199303-199609

IVORY,TRIM0#

sub46209-30121

main46209-30120-B0iJZS147..LHD199303-199609

GRAY,TRIM1#

sub46209-30121

main46209-30120-G0iJZS147..LHD199303-199609

LI.SPRUCE,TRIM6#

sub46209-30121

main46209-30121-A0iJZS147..LHD199609-199708

IVORY,TRIM0#

main46209-30121-B0iJZS147..LHD199609-199708

GRAY,TRIM1#

main46209-30121-G0iJZS147..LHD199609-199708

LI.SPRUCE,TRIM6#

46220ABSORBER ASSY, PARKING BRAKE PEDAL RETURN

main46220-30010iJZS147199303-199708

46220ACUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER)

main90540-07010iJZS147199303-199401

46243COVER, PARKING BRAKE LEVER

main46243-50020iJZS147..LHD199303-199708

46252PAD, PARKING PEDAL

main46252-20010iJZS147..RHD199308-199708

main46252-50010iJZS147..LHD199303-199708

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-30230iJZS147199303-199508

main46301-30260iJZS147199508-199708

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-08059iJZS147199303-199708

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-30070iJZS147199303-199508

main46304-30090iJZS147199508-199708

46304ASPRING, TENSION(FOR PARKING BRAKE EQUALIZER)

main46305-50010iJZS147199508-199708

main90507-22001iJZS147199303-199508

46359GUIDE, PARKING BRAKE INTERMEDIATE LEVER

main46359-30140iJZS147199303-199708

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-30520iJZS147..RHD199308-199708

main46410-30630iJZS147..LHD199303-199708

46410EPIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1)

main90240-08062iJZS147199303-199708

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-30410iJZS147199303-199708

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-30050iJZS147199303-199508

main46430-30100iJZS147199508-199708

46451EBRACKET, CABLE GUIDE SUPPORT, NO.1

main46451-30110iJZS147..LHD199303-199708

46458RETAINER, CABLE

main46458-30060iJZS147199303-199708

8401

9011908570

main90119-08570

9011908681

main90119-08681

9017906161

main90179-06161

9017908013

main90179-08013

9017908041

main90179-08041

9046806071

main90468-06071

9046808001

main90468-08001

9046814004

main90468-14004

9094901733

main90949-01733

9094901734

main90949-01734

9094901735

main90949-01735

9094901736

main90949-01736

9112141050

main91121-41050

9161160865

main91611-60865

9161660612

main91616-60612

9163360625

main91633-60625

9165140816

main91651-40816

9166540616

main91665-40616

9412040800

main94120-40800

9413061000

main94130-61000

9453101000

main94531-01000

43 parts on this diagram · 3 diagrams in section
