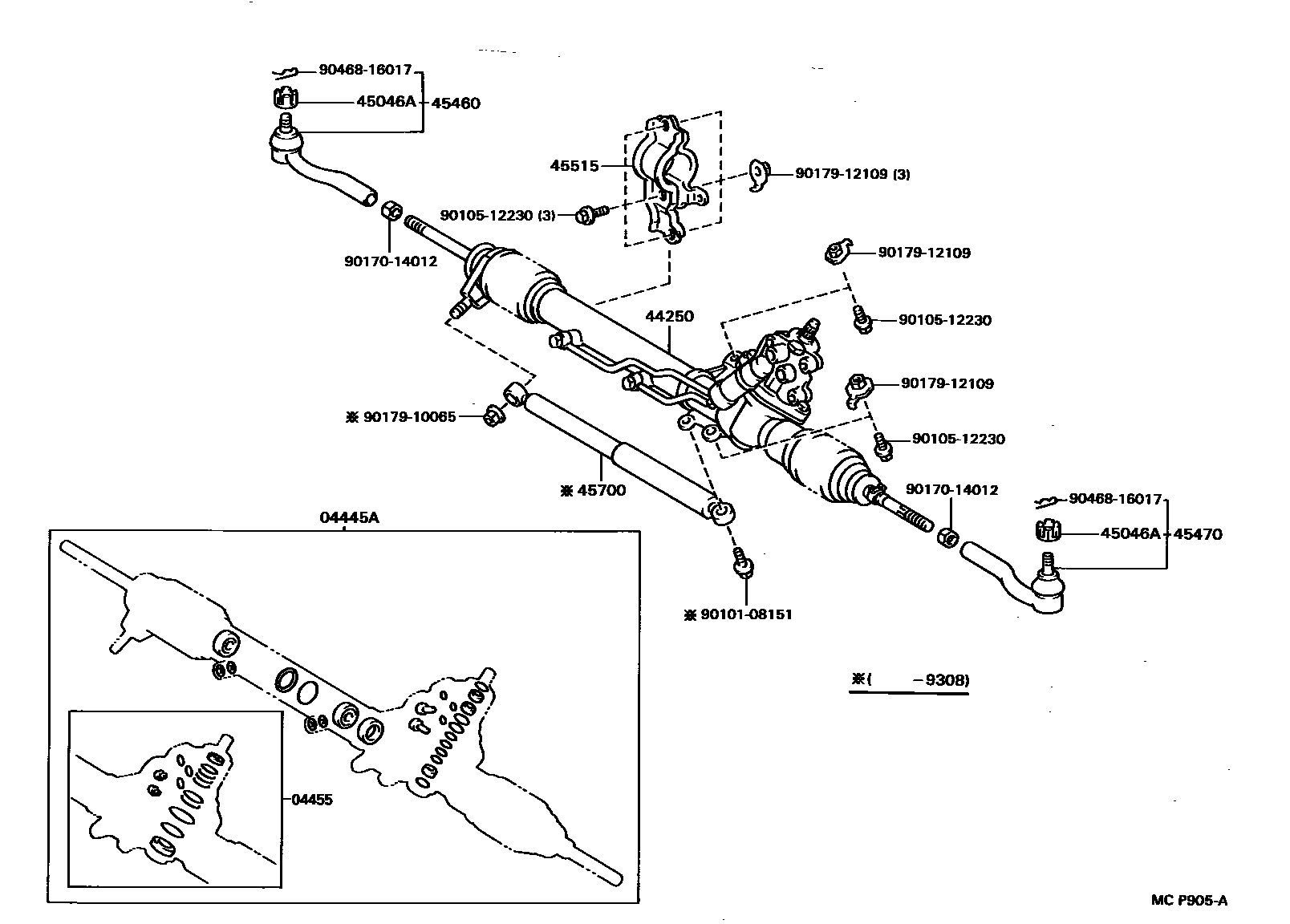

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-30160iJZS147..RHD199308-199604

sub04445-30230

main04445-30170iJZS147..LHD199303-199604

sub04445-30240

main04445-30230iJZS147..RHD199604-199708

main04445-30240iJZS147..LHD199604-199708

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-30040iJZS147..LHD199303-199708

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-30021iJZS147..RHD199308-199708

main44250-30070iJZS147..LHD199303-199708

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002iJZS147199303-199708

45460ROD ASSY, TIE, RH

main45460-39365iJZS147199303-199708

sub45460-39395

45470ROD ASSY, TIE, LH

main45470-39125iJZS147199303-199708

sub45470-39145

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-30021iJZS147..RHD199308-199708

main45515-30050iJZS147..LHD199303-199708

45700DAMPER ASSY, STEERING

main45700-30020iJZS147199303-199308

9010108151

main90101-08151

9010512230

main90105-12230

9017014012

main90170-14012

9017910065

main90179-10065

9017912109

main90179-12109

9046816017

main90468-16017

14 parts on this diagram · 4 diagrams in section
