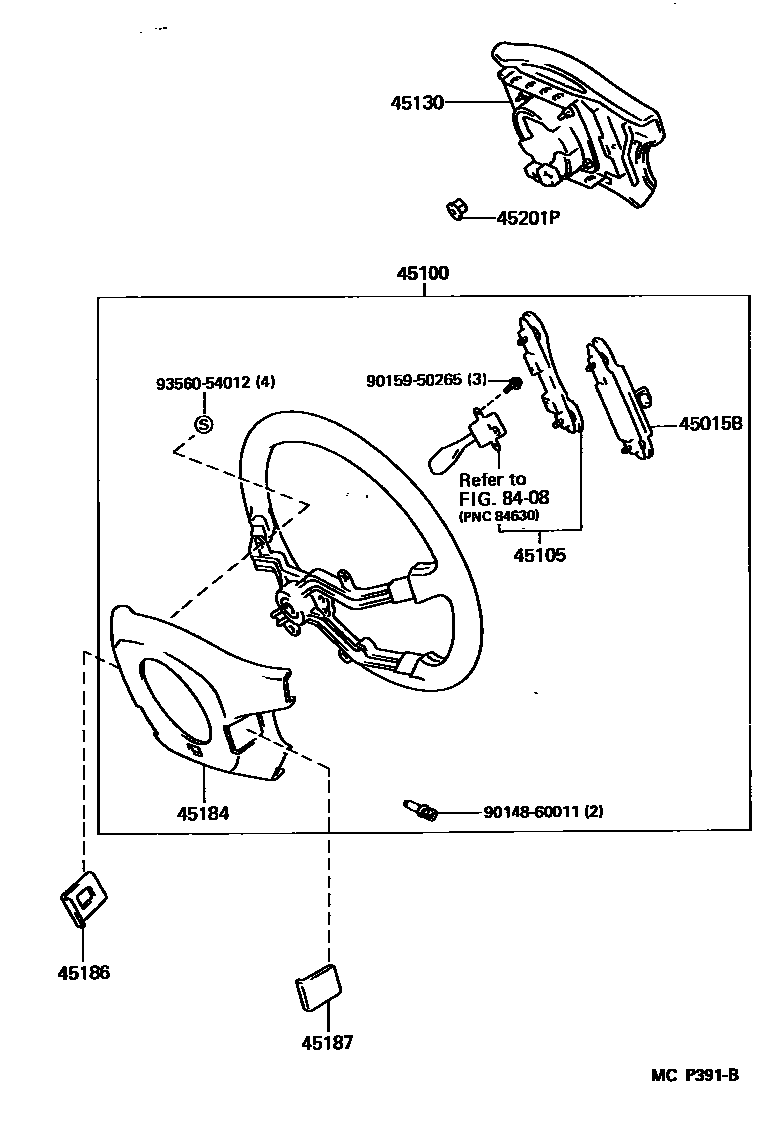

STEERING WHEEL

45015BPLATE SUB-ASSY, HORN BUTTON CONTACT, NO.2

main45015-30030iJZS147199303-199708

45100WHEEL ASSY, STEERING

main45100-30630-B0iJZS147199303-199408

4-SPOKE,LEATHER,GRAY,TRIM1#

sub45100-30670

sub45100-34030

main45100-30630-E0iJZS147199303-199408

4-SPOKE,LEATHER,SABLE,TRIM0#

sub45100-30670

sub45100-34030

main45100-30630-G0iJZS147199303-199408

4-SPOKE,LEATHER,SPRUCEGRAY,TRIM6#

sub45100-30670

sub45100-34030

main45100-30670-B0iJZS147199408-199508

4-SPOKE,LEATHER,SHADOW GRAY,TRIM1#

sub45100-30671

main45100-30670-E0iJZS147199408-199508

4-SPOKE,LEATHER,SABLE,TRIM0#

sub45100-30671

main45100-30670-G0iJZS147199408-199508

4-SPOKE,LEATHER,DK.SPRUCE GRAY,TRIM6#

sub45100-30671

main45100-30671-B0iJZS147199508-199708

4-SPOKE,LEATHER,SHADOW GRAY,TRIM1#

sub45100-30671

main45100-30671-E0iJZS147199508-199708

4-SPOKE,LEATHER,SABLE,TRIM0#

sub45100-30671

main45100-30671-G0iJZS147199508-199708

4-SPOKE,LEATHER,DK.SPRUCE GRAY,TRIM6#

sub45100-30671

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-30210iJZS147199303-199708

45130BUTTON ASSY, HORN

main45130-30450-B0iJZS147..GCC199303-199508

GRAY,TRIM1#

sub45130-30451

main45130-30450-E0iJZS147199303-199508

SABLE,TRIM0#

sub45130-30451

main45130-30450-G0iJZS147..GCC199303-199508

SPRUCE GRAY,TRIM6#

sub45130-30451

main45130-30451-B0iJZS147199508-199708

SHADOW GRAY,TRIM1#

sub45130-30451

main45130-30451-E0iJZS147199508-199708

SABLE,TRIM0#

sub45130-30451

main45130-30451-G0iJZS147199508-199708

DK.SPRUCE GRAY,TRIM6#

sub45130-30451

main45130-30460-B0iJZS147..EUR199308-199404

SHADOW GRAY,TRIM1#

sub45130-30451

main45130-30460-E0iJZS147..EUR199308-199404

SABLE,TRIM0#

sub45130-30451

main45130-30460-G0iJZS147..EUR199308-199404

SPRUCE GRAY,TRIM6#

sub45130-30451

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-30240-B0iJZS147199303-199508

SHADOW GRAY,TRIM1#

sub45184-30241

main45184-30240-E0iJZS147199303-199508

SABLE,TRIM0#

sub45184-30241

main45184-30240-G0iJZS147199303-199508

SPRUCE GRAY,TRIM6#

sub45184-30241

main45184-30241-B0iJZS147199508-199708

SHADOW GRAY,TRIM1#

sub45184-30241

main45184-30241-E0iJZS147199508-199708

SABLE,TRIM0#

sub45184-30241

main45184-30241-G0iJZS147199508-199708

DK.SPRUCE GRAY,TRIM6#

sub45184-30241

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-30020-B0iJZS147199303-199708

SHADOW GRAY,TRIM1#

sub45186-30020

main45186-30020-E0iJZS147199303-199708

SABLE,TRIM0#

sub45186-30020

main45186-30020-G0iJZS147199303-199708

SPRUCE GRAY,TRIM6#

sub45186-30020

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-30020-B0iJZS147199303-199708

SHADOW GRAY,TRIM1#

sub45187-30020

main45187-30020-E0iJZS147199303-199708

SABLE,TRIM0#

sub45187-30020

main45187-30020-G0iJZS147199303-199708

SPRUCE GRAY,TRIM6#

sub45187-30020

45201PNUT, STEERING WHEEL SET

main90179-12071iJZS147199306-199708

main90179-12086iJZS147199303-199306

8408

9014860011

main90148-60011

9015950265

main90159-50265

9356054012

main93560-54012

12 parts on this diagram · 1 diagram in section
