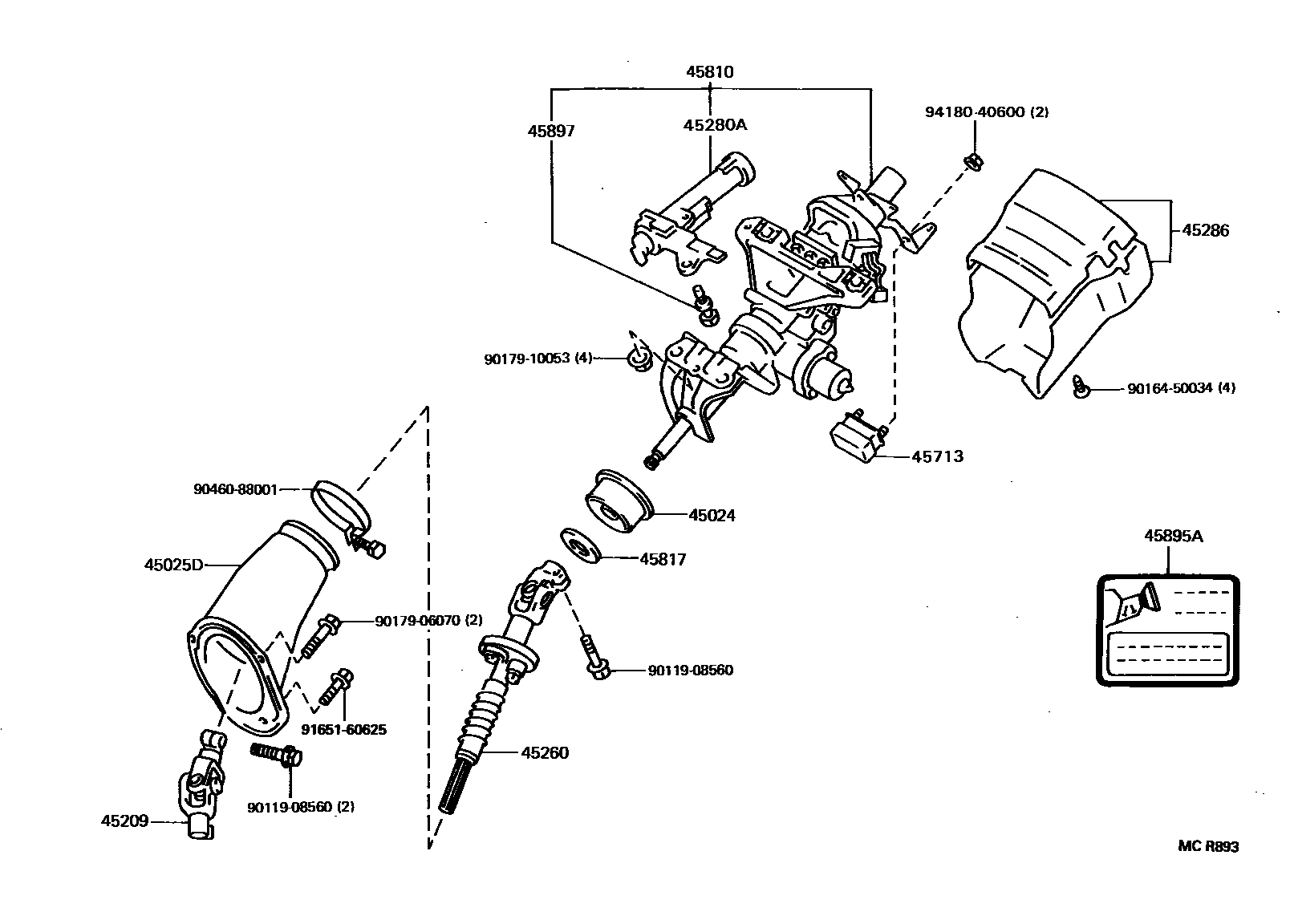

STEERING COLUMN & SHAFT
45024COVER SUB-ASSY, STEERING COLUMN, LOWER
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45209YOKE SUB-ASSY, STEERING SLIDING
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
45713DUMPER, STEERING SHAKE
45810GEAR ASSY, TILT STEERING, W/MOTOR
45817STOPPER, STEERING SHAFT THRUST
45895APLATE, TILT STEERING CAUTION
45897BOLT, STEERING LOCK SET
9011908560
main90119-08560
9016450034
main90164-50034
9017906070
main90179-06070
9017910053
main90179-10053
9046088001
main90460-88001
9165160625
main91651-60625
9418040600
main94180-40600
18 parts on this diagram · 1 diagram in section
