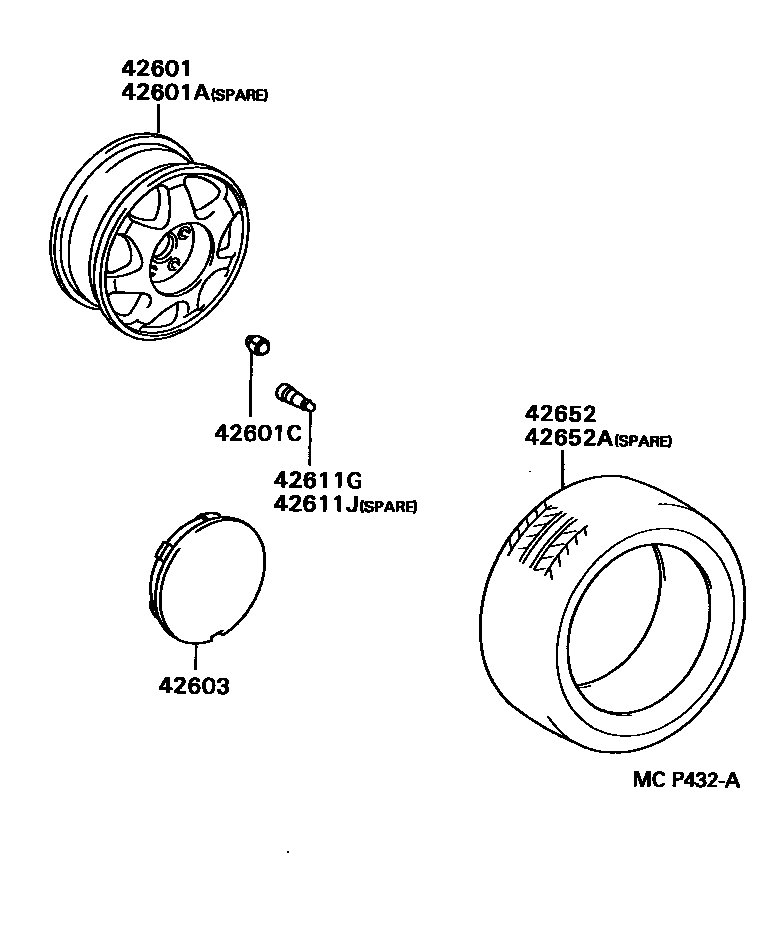

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-30760iJZS147199303-199401

16X7.5JJ

sub42611-30761

main42611-30761iJZS147..RHD199401-199708

16X7 1/2JJ

42601AWHEEL, DISC (FOR SPARE)

main42611-30760iJZS147199303-199401

16X7.5JJ

sub42611-30761

main42611-30761iJZS147..RHD199401-199708

16X7 1/2JJ

42601CNUT, HUB (FOR AXLE)

main90942-01062iJZS147199303-199708

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30220iJZS147199303-199708

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iJZS147199303-199708

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iJZS147199303-199708

42652TIRE

main42652-30500iJZS147..LHD199303-199708

225/55R16 94V

main42652-30510iJZS147..RHD199308-199708

225/55R16 94V

42652ATIRE (FOR SPARE)

main42652-30500iJZS147..LHD199303-199708

225/55R16 94V

main42652-30510iJZS147..RHD199308-199708

225/55R16 94V

8 parts on this diagram · 2 diagrams in section
