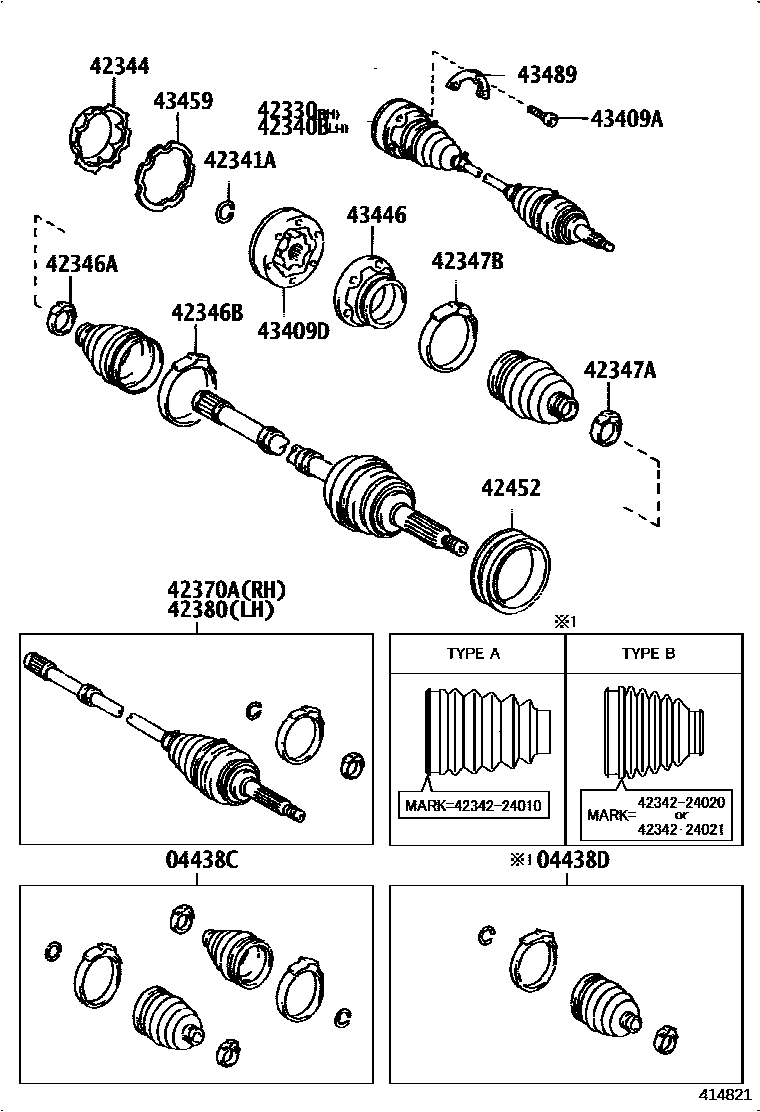

REAR AXLE SHAFT & HUB
04438CBOOT KIT, REAR DRIVE SHAFT
04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
42330SHAFT ASSY, REAR DRIVE, RH
W/O(*TRC)
42340BSHAFT ASSY, REAR DRIVE, LH
W/O(*TRC)
42341ARING, SNAP (FOR REAR DRIVE SHAFT)
42344COVER, REAR AXLE INBOARD JOINT END
42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH
W/O(*TRC)
42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH
W/O(*TRC)
42452DEFLECTOR, REAR WHEEL BEARING DUST, NO.2
43409ABOLT (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)
43409DJOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE
43446COVER, REAR AXLE INBOARD JOINT
43459GASKET, REAR AXLE INBOARD JOINT END COVER
43489WASHER, REAR DRIVE SHAFT CROSS GROOVE JOINT
18 parts on this diagram · 2 diagrams in section
