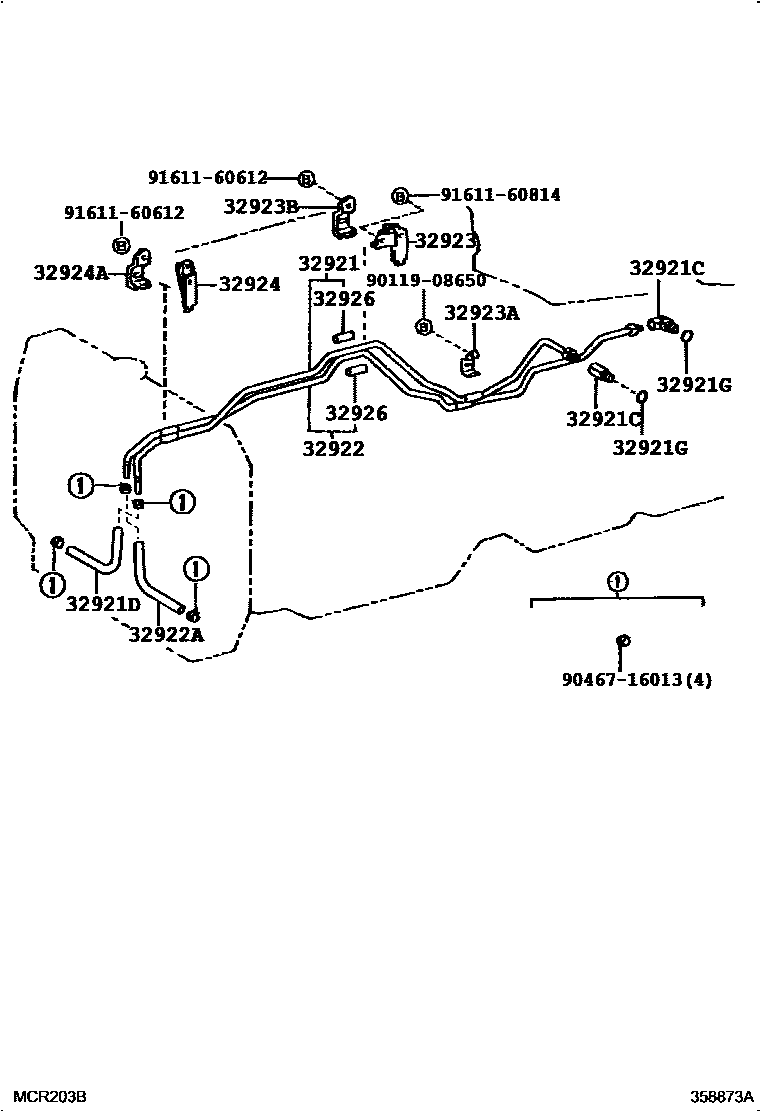

OIL COOLER & TUBE (ATM)

0001 1 0002 1AIR COOLED OIL COOLER

32921TUBE, OIL COOLER INLET, NO.1

main32921-30531iJZS147¥1,890199303-199708

32921CUNION(FOR OIL COOLER TUBE)

main90404-16029iJZS147¥430199303-199708

INLET

main90407-16009iJZS147¥390199303-199708

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-30190iJZS147¥1,850199303-199306

main32941-30250iJZS147¥1,460199306-199708

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006iJZS147¥220199303-199708

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-30531iJZS147¥2,100199303-199708

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-30090iJZS147¥2,820199303-199708

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-30161iJZS147¥460199303-199708

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32929-30140iJZS147¥500199303-199708

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32929-30160iJZS147¥230199304-199708

main32929-60010iJZS147199303-199304

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-30190iJZS147¥410199303-199708

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main32929-30160iJZS147¥230199304-199708

main32929-60010iJZS147199303-199304

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30030iJZS147..GCC¥170199303-199708

L=35,ID=10,RR

main32926-30060iJZS147..GCC¥270199303-199708

L=35,ID=10,FR & CTR

9011908650

main90119-08650¥160

9046716013

main90467-16013¥300

9161160612

main91611-60612¥130

9161160814

main91611-60814¥100

16 parts on this diagram · 2 diagrams in section
