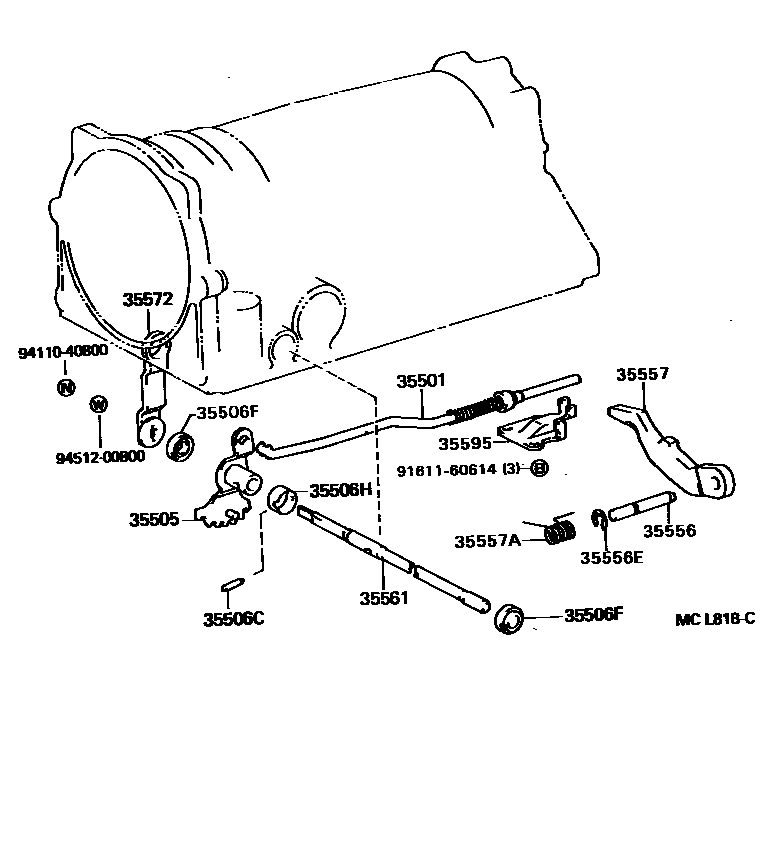

THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1

35501ROD SUB-ASSY, PARKING LOCK

main35501-30010iJZS147199303-199508

main35501-60010iJZS147199508-199708

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-50010iJZS147199303-199708

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iJZS147199303-199708

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iJZS147199303-199708

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iJZS147199303-199708

35556SHAFT, PARKING LOCK PAWL

main35556-30020iJZS147199303-199708

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iJZS147199303-199708

35557PAWL, PARKING LOCK

main35557-30020iJZS147199303-199508

main35557-60020iJZS147199508-199708

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iJZS147199303-199708

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iJZS147199303-199708

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-30060iJZS147199306-199708

main35572-50011iJZS147199303-199306

sub35572-30060

35595BRACKET, PARKING LOCK PAWL

main35595-30010iJZS147199303-199508

main35595-60010iJZS147199508-199708

9161160614

main91611-60614

9411040800

main94110-40800

9451200800

main94512-00800

15 parts on this diagram · 2 diagrams in section
