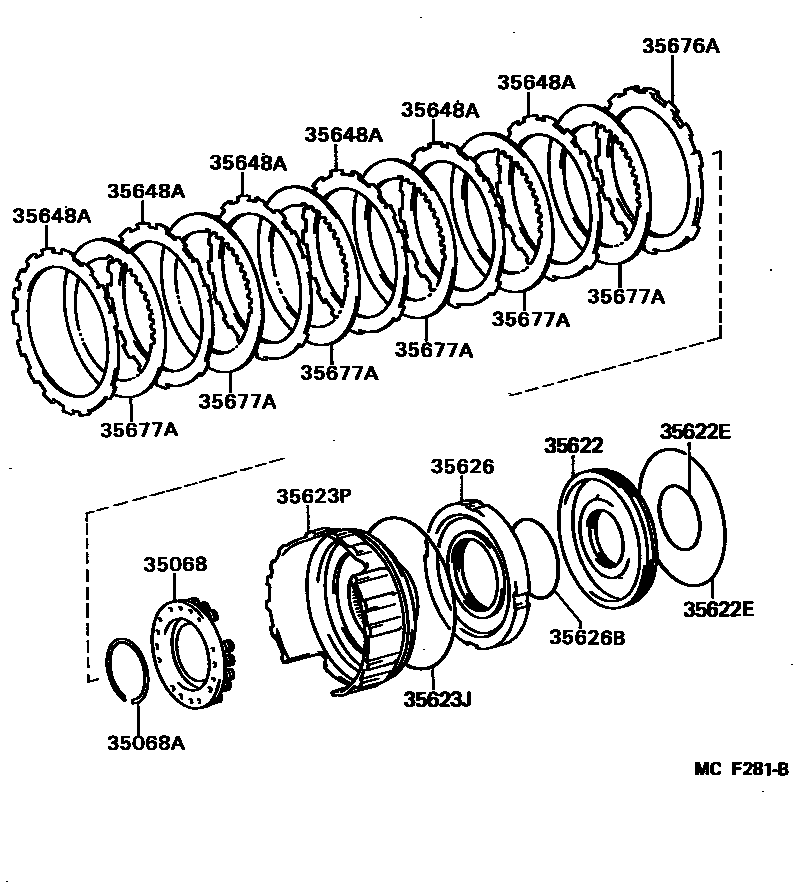

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-50010iJZS147199303-199708

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-52262iJZS147199303-199708

35622PISTON, BRAKE, NO.2

main35622-30010iJZS147199303-199708

35622ERING, O (FOR BRAKE PISTON NO.2)

main90301-57188iJZS147199303-199708

INNER

main90301-99193iJZS147199303-199708

OUTER

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99192iJZS147199303-199708

35623PPISTON, 1ST & REVERSE BRAKE, NO.2

main35623-30030iJZS147199303-199708

35626SLEEVE, BRAKE REACTION

main35626-30020iJZS147199303-199708

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iJZS147199303-199708

sub90301-67005

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-30031iJZS147199303-199708

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-30100iJZS147199508-199708

T=5.2

main35676-30110iJZS147199508-199708

T=5.4

main35676-50010iJZS147199303-199708

T=5.0

main35676-50020iJZS147199303-199708

T=4.8

main35676-50030iJZS147199303-199708

T=4.6

main35676-50040iJZS147199303-199708

T=4.4

main35676-50050iJZS147199303-199708

T=4.2

main35676-50060iJZS147199303-199708

T=4.0

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-30110iJZS147199303-199508

sub35677-30130

main35677-30130iJZS147199508-199708

11 parts on this diagram · 1 diagram in section
