SHIFT LEVER & RETAINER
33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33502PLATE SUB-ASSY, SHIFT LEVER
33502ACOLLAR (FOR FLOOR SHIFT SETTING)
OD=10.8,ID=6.8
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504FKNOB SUB-ASSY, SHIFT LEVER
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33511CCOLLAR (FOR CONTROL SHAFT)
33542ASCREW, W/WASHER(FOR SPRING BACK SHIFT LEVER KNOB)
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33555BOOT, SHIFT LEVER
33569AGUIDE, SHIFT LOCK RELEASE BUTTON
33623BUTTON, SHIFT LEVER KNOB
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33626STOPPER, SHIFT LEVER BUTTON
33631ROD, DETENT
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631BPIN, SLOTTED SPRING (FOR DETENT ROD)
33631CRING, E (FOR DETENT ROD)
33631DPIN, GROOVED (FOR DETENT ROD)
33631EROLLER (FOR DETENT ROD)
L=11.7,OD=6
33634PROTECTOR, WIRE
33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33675BBUSH (FOR TRANSMISSION CONTROL ROD)
33675CGROMMET (FOR TRANSMISSION CONTROL ROD)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
33886STOPPER, SHIFT LEVER
35198ABRACKET, WIRE HARNESS CLAMP, NO.4
RR
FR
35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)
5806
8401
8410
9011906144
9017908001
9046814004
9046814033
9048010014
9094901039
9331534012
9331914006
9356053008
9411040800
9451200800
9461310800

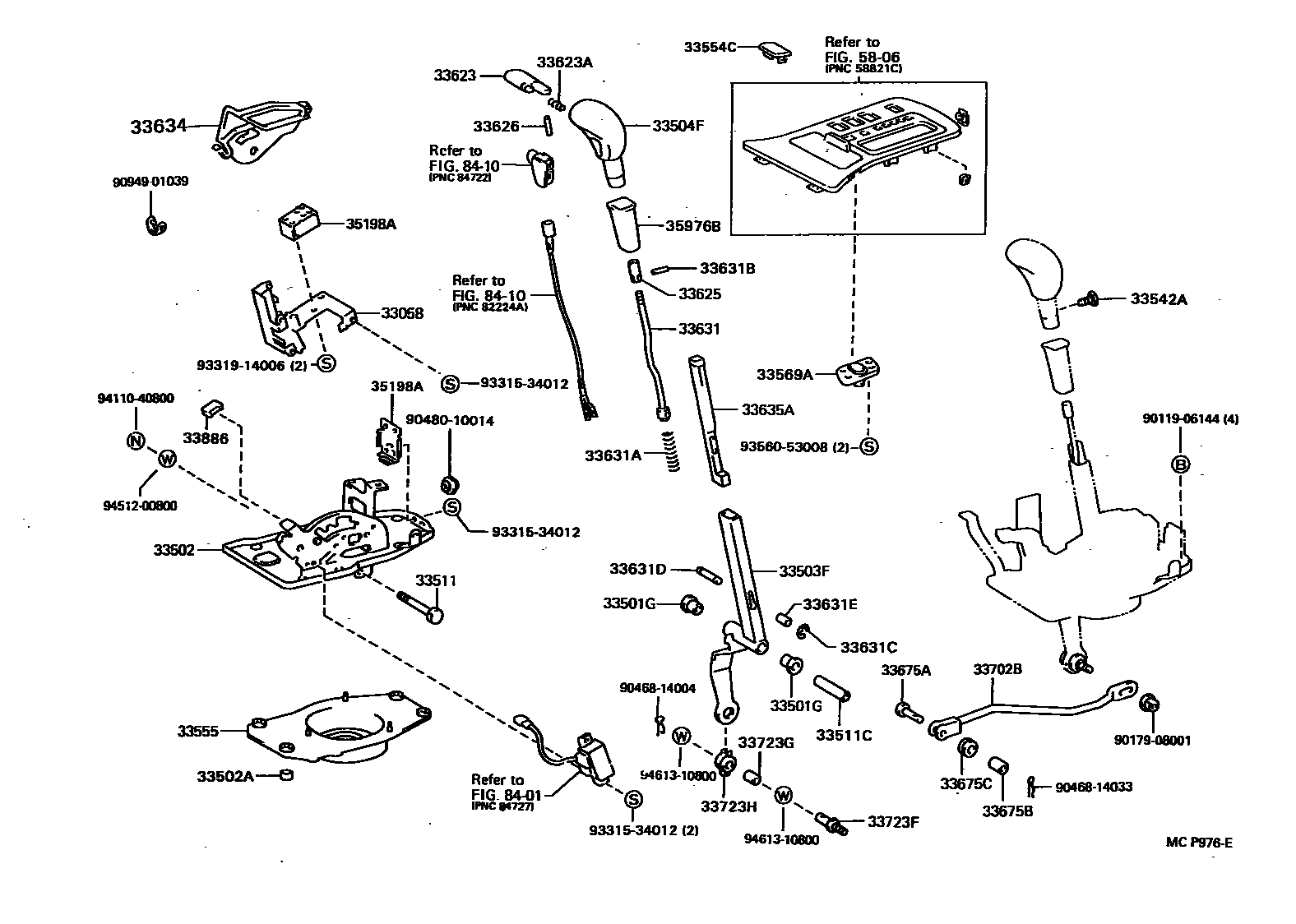

49 parts on this diagram · 1 diagram in section
