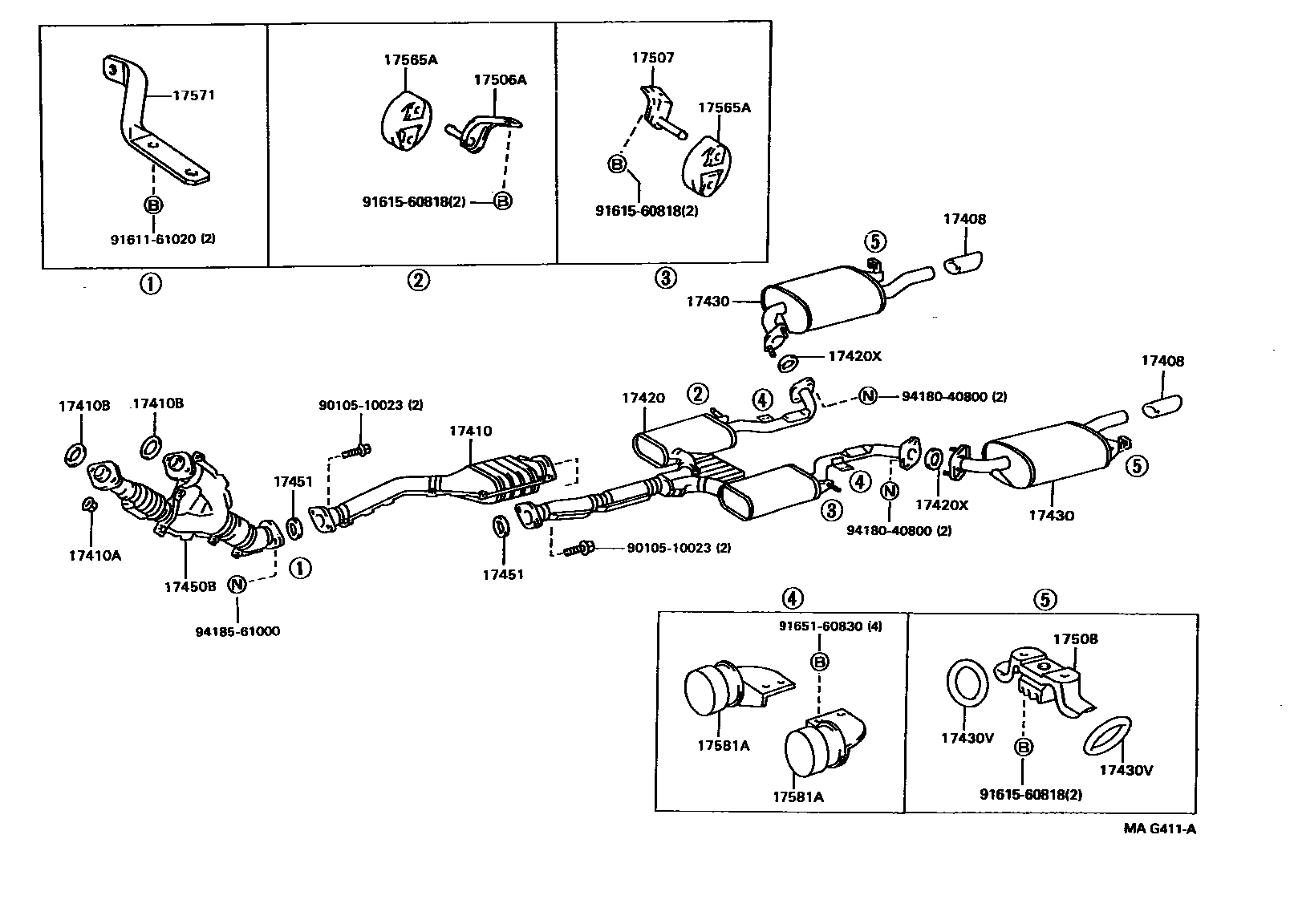

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
RH
LH
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17450BPIPE ASSY, EXHAUST, FRONT NO.2
17451GASKET, EXHAUST PIPE
RR
FR
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
sub17508-46060
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17581ADAMPER, EXHAUST PIPE
9010510023
main90105-10023
9161161020
main91611-61020
9161560818
main91615-60818
9165160830
main91651-60830
9418040800
main94180-40800
9418561000
main94185-61000
22 parts on this diagram · 1 diagram in section
