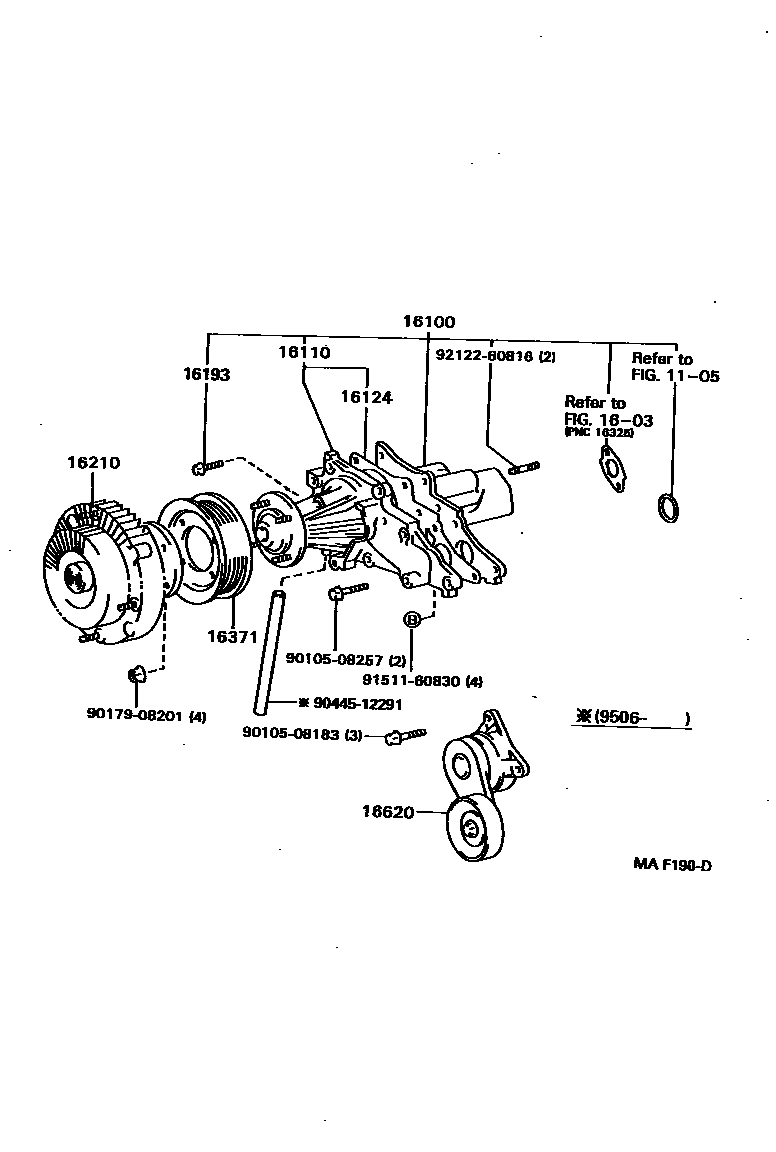

WATER PUMP

1105

1603

16100PUMP ASSY, ENGINE WATER

main16100-49835i2JZGE..JZS147¥17,200199303-199506

sub16100-49836¥17,200

sub90445-12291¥320

main16100-49836i2JZGE..JZS147¥17,200199506-199708

sub16100-49837¥17,200

16110PUMP ASSY, WATER, W/O COUPLING

main16110-49115i2JZGE..JZS147¥13,300199303-199506

sub16110-49116¥13,300

sub90445-12291¥320

main16110-49116i2JZGE..JZS147¥13,300199506-199708

sub16100-49837¥17,200

16124GASKET, WATER PUMP COVER

main16124-46040i2JZGE..JZS147¥670199303-199608

sub16124-46041¥670

main16124-46041i2JZGE..JZS147¥670199608-199708

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-46040i2JZGE..JZS147¥260199303-199708

16210COUPLING ASSY, FLUID

main16210-46030i2JZGE..JZS147..GCC¥38,100199304-199708

main16210-46040i2JZGE..JZS147¥37,800199303-199708

sub16210-46041¥37,900

16371PULLEY, FAN

main16371-46020i2JZGE..JZS147¥6,800199303-199708

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W020i2JZGE..JZS147¥29,000199303-199307

sub16620-0W021¥29,000

main16620-0W021i2JZGE..JZS147¥29,000199307-199505

sub16620-0W022¥29,000

main16620-0W023i2JZGE..JZS147¥29,000199505-199610

sub16620-0W024¥29,100

main16620-0W024i2JZGE..JZS147¥29,100199610-199708

sub16620-0W025¥29,000

9010508183

main90105-08183¥140

9010508257

main90105-08257¥160

9017908201

main90179-08201¥90

9044512291

main90445-12291¥320

9151160830

main91511-60830¥270

9212260816

main92122-60816¥170

15 parts on this diagram · 1 diagram in section
