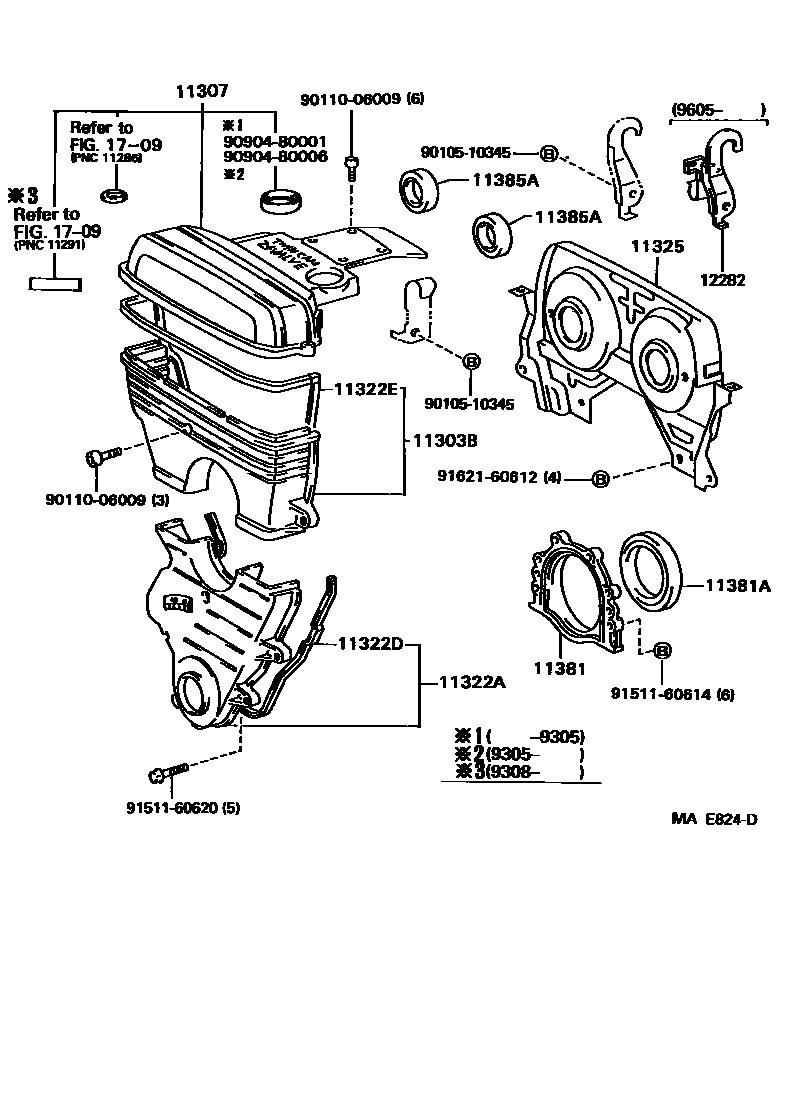

TIMING GEAR COVER & REAR END PLATE

11303BCOVER SUB-ASSY, TIMING BELT, NO.2

main11303-46011i2JZGE..JZS147199303-199708

11307COVER, SUB-ASSY, TIMING BELT, NO.3

main11304-46040i2JZGE..JZS147199303-199305

sub11304-46041

main11304-46041i2JZGE..JZS147199305-199708

11322ACOVER, TIMING BELT, NO.1

main11302-46031i2JZGE..JZS147199303-199708

11322DGASKET, TIMING BELT COVER, NO.1

main11328-46041i2JZGE..JZS147199303-199708

11322EGASKET, TIMING BELT COVER, NO.2

main11329-46011i2JZGE..JZS147199303-199708

11325COVER, TIMING BELT, NO.4

main11325-46040i2JZGE..JZS147199303-199306

sub11325-46041

main11325-46041i2JZGE..JZS147199306-199507

sub11325-46042

main11325-46042i2JZGE..JZS147199507-199708

11381RETAINER, ENGINE REAR OIL SEAL

main11381-46010i2JZGE..JZS147199303-199708

11381ASEAL, ENGINE REAR OIL

main90311-90006i2JZGE..JZS147199303-199708

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-40014i2JZGE..JZS147199303-199509

sub90311-40020

main90311-40020i2JZGE..JZS147199509-199708

12282HANGER, ENGINE, NO.2

main12282-46012i2JZGE..JZS147199605-199708

1709

9010510345

main90105-10345

9011006009

main90110-06009

9090480001

main90904-80001

9090480006

main90904-80006

9151160614

main91511-60614

9151160620

main91511-60620

9162160612

main91621-60612

18 parts on this diagram · 1 diagram in section
