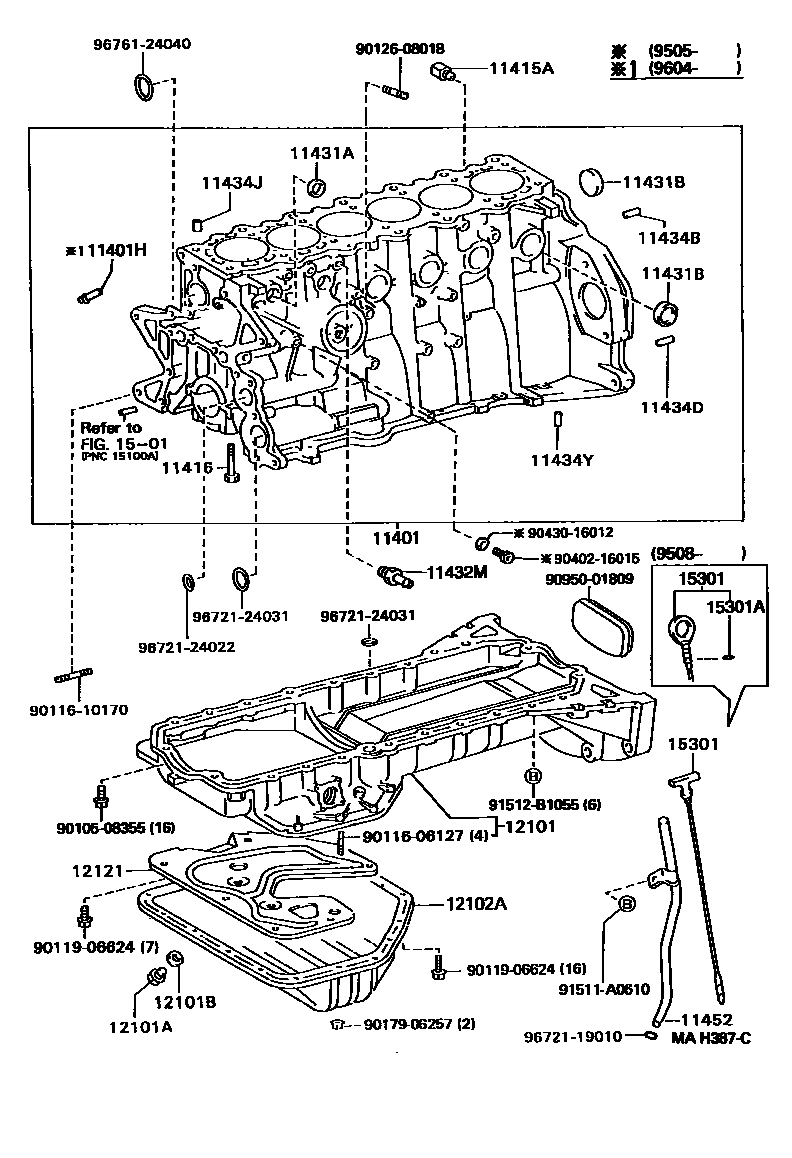

CYLINDER BLOCK
11401HUNION(FOR CYLINDER BLOCK LLC DRAIN)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
11432MUNION(FOR CYLINDER BLOCK)
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=22,OD=10
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=14,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434YPIN, STRAIGHT(FOR OIL PAN)
11452GUIDE, OIL LEVEL GAGE
12101APLUG(FOR OIL PAN DRAIN)
sub90341-12012
12102APAN SUB-ASSY, OIL, NO.2
12121PLATE, OIL PAN BAFFLE, NO.1
1501
15301ARING, O(FOR OIL LEVEL GAGE)
9010508355
main90105-08355
9011606127
main90116-06127
9011610170
main90116-10170
9011906624
main90119-06624
9012608018
main90126-08018
9017906257
main90179-06257
9040216015
main90402-16015
9043016012
main90430-16012
9095001809
main90950-01809
91511A0610
main91511-A0610
91512B1055
main91512-B1055
9672119010
main96721-19010
9672124022
main96721-24022
9672124031
main96721-24031
9676124040
main96761-24040
35 parts on this diagram · 1 diagram in section
