STANDARD TOOL

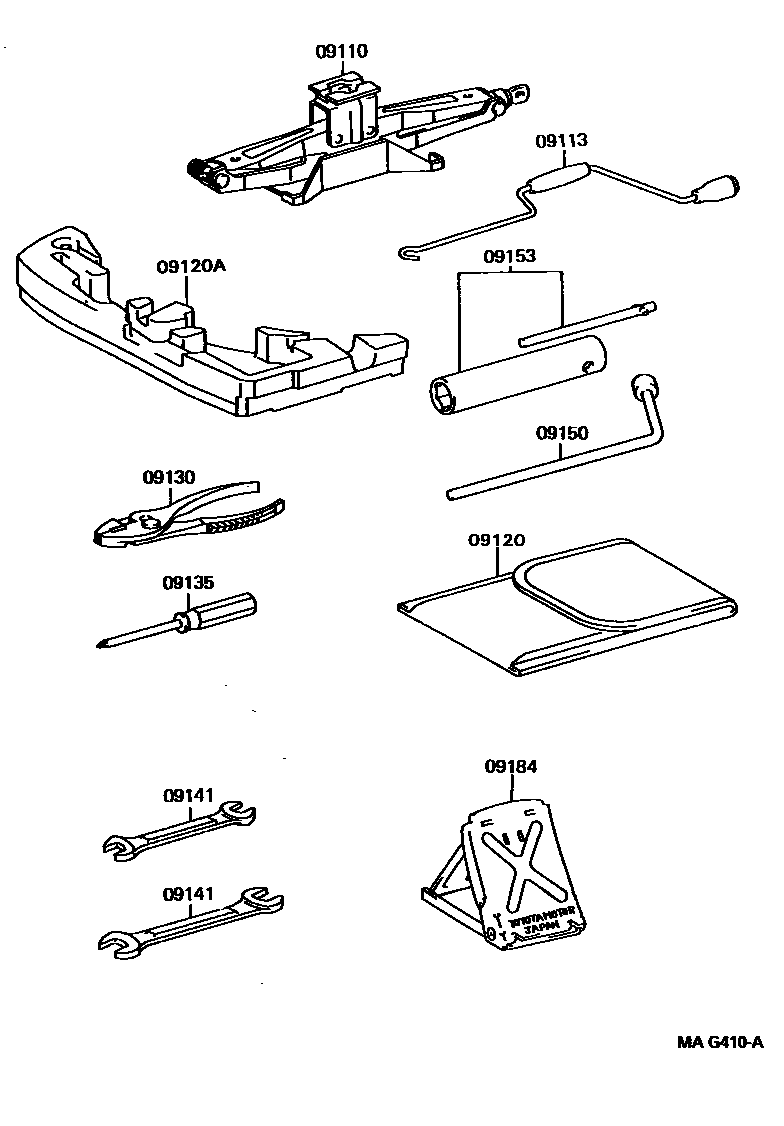

Parts diagram
09110JACK ASSY
main09111-30110i199303-199508
main09111-30120i199508-199708
09113HANDLE, JACK
main09113-22020i199508-199708
main09113-50010i199303-199508
09120BAG, TOOL
main09120-24010i199303-199708
09120ACASE, TOOL
main09120-30040i199303-199508
main09120-30080i199508-199708
09130PLIERS
main09130-50010i199303-199408
sub09130-50030
main09130-50030i199408-199708
09135DRIVER, SCREW
main09135-50020i199303-199408
sub09135-50040
main09135-50040i199408-199708
09141SPANNER
main09141-50010i199303-199408
8 X 10
sub09141-50050
main09141-50020i199303-199408
12 X 14
sub09141-50060
main09141-50050i199408-199708
8 X 10
main09141-50060i199408-199708
12 X 14
09150WRENCH, HUB NUT BOX
main09150-50010i199303-199708
sub09150-53010
09153WRENCH, REAR COMBINATION LAMP
main09153-74030i199308-199708
09184STOPPER, WHEEL
main09184-00010i199303-199708

10 parts on this diagram · 1 diagram in section
