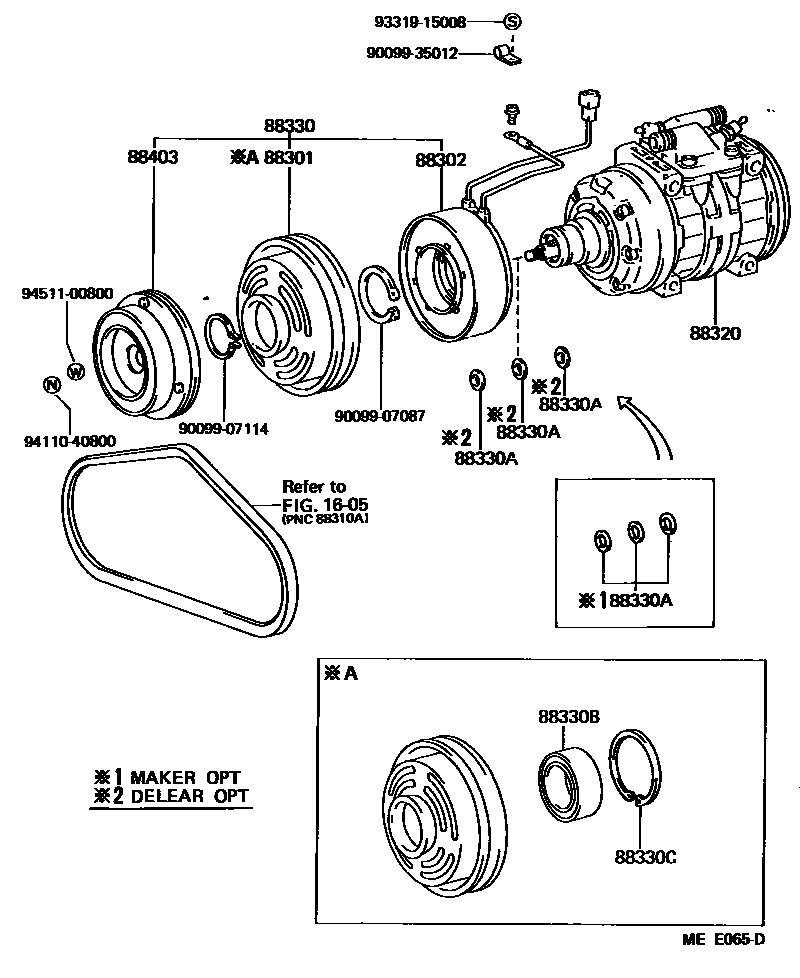

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22030iLS120,YS120198308-198708

main88412-30290iMS122198308-198708

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iLS120198308-198708

main88411-30370iMS122198308-198708

sub88411-26030

main88411-30380iYS120198308-198708

88320COMPRESSOR ASSY, COOLER

main88320-30320iLS120198308-198703

sub88320-30321

main88320-30321iLS120198703-198708

main88320-30330iMS12#198308-198708

main88320-30340iYS120198308-198708

sub88320-30341

main88320-30510iMS122198706-198708

88330CLUTCH ASSY, MAGNET

main88410-22080iLS120198308-198708

sub88410-60140

main88410-30370iMS122198308-198708

main88410-30380iMS123,125,YS120198308-198708

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iMS122198308-198708

main90099-01108iLS120198308-198708

T=0.5

main90099-01350iLS120198308-198708

T=0.1

main90099-01351iLS120198308-198708

T=0.2

88330BBEARING, MAGNET CLUTCH

main90099-10133iLS120,MS12#,YS120198308-198708

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iMS125..LHD198308-198708

main90099-07114iMS125..RHD;LS120,MS123,YS120198308-198708

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iLS120,MS123,125,YS120198308-198708

sub88403-12030

main88403-30280iMS125..LHD198308-198708

9009907087

main90099-07087

9009907114

main90099-07114

9009935012

main90099-35012

9331915008

main93319-15008

9411040800

main94110-40800

9451100800

main94511-00800

15 parts on this diagram · 5 diagrams in section
