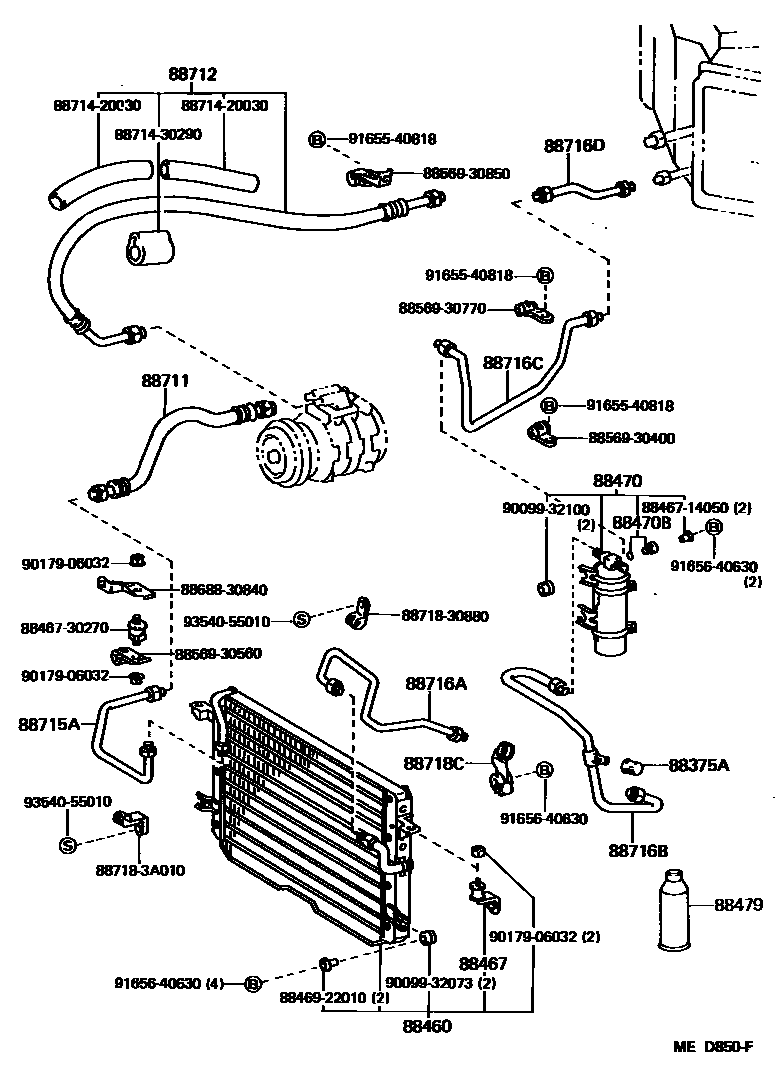

HEATING & AIR CONDITIONING - COOLER PIPING
88375ACAP, SERVICE VALVE (FOR COOLER PIPE)
88467CUSHION, COOLER CONDENSER, NO.1
88470BBOLT, FUSE
88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
W/*BV,SINGAPORE SPEC
88712HOSE, COOLER REFRIGERANT SUCTION, NO.1
W/HEATER
W/HEATER
W/*BV
W/*BV
88716APIPE, COOLER REFRIGERANT LIQUID, A
88716DPIPE, COOLER REFRIGERANT LIQUID, D
88718CCLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
8846714050CUSHION, COOLER CONDENSER, NO.1
main88467-14050
8846730270CUSHION, COOLER CONDENSER, NO.1
main88467-30270
8846922010SWITCH, PRESSURE CONTROL
main88469-22010
8856930400CLAMP (FOR COOLER RELAY)
main88569-30400
8856930560CLAMP (FOR COOLER RELAY)
main88569-30560
8856930770CLAMP (FOR COOLER RELAY)
main88569-30770
8856930850CLAMP (FOR COOLER RELAY)
main88569-30850
8868830840BRACKET, COOLER DIAPHRAGM
main88688-30840
8871420030HOSE, COOLER REFRIGERANT LIQUID, NO.1
main88714-20030
8871430290HOSE, COOLER REFRIGERANT LIQUID, NO.1
main88714-30290
8871830880PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-30880
887183A010PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-3A010
9009932073
main90099-32073
9009932100
main90099-32100
9017906032
main90179-06032
9165540818
main91655-40818
9165640630
main91656-40630
9354055010
main93540-55010
32 parts on this diagram · 8 diagrams in section
