REAR WIPER

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85120-91703iMS122..WG198308-198708

85160RLINK ASSY, REAR WIPER

main85160-91703iMS122..WG198308-198708

85163RPACKING, REAR WIPER PIVOT, NO.1

main85174-12320iMS122..WG198308-198708

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05141iMS122..WG198308-198708

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main90099-01458iMS122..WG198308-198708

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iMS122..WG198308-198708

85188RCAP, REAR WIPER PIVOT, NO.1

main85178-12320iMS122..WG198308-198708

85190RARM ASSY, REAR WIPER

main85190-91703iMS122..WG198308-198708

sub85190-91704

85192RCOVER, REAR WIPER ARM

main85192-14020iMS122..WG198308-198708

sub85192-13060

85220RBLADE ASSY, REAR WIPER

main85220-91704iMS122..WG198308-198708

85221RBLADE, REAR WIPER

main85221-91702iMS122..WG198308-198708

85260RLINK ASSY, REAR WIPER, NO.2

main85260-91702iMS122..WG198308-198708

9009900913

main90099-00913

9011906018

main90119-06018

9165140612

main91651-40612

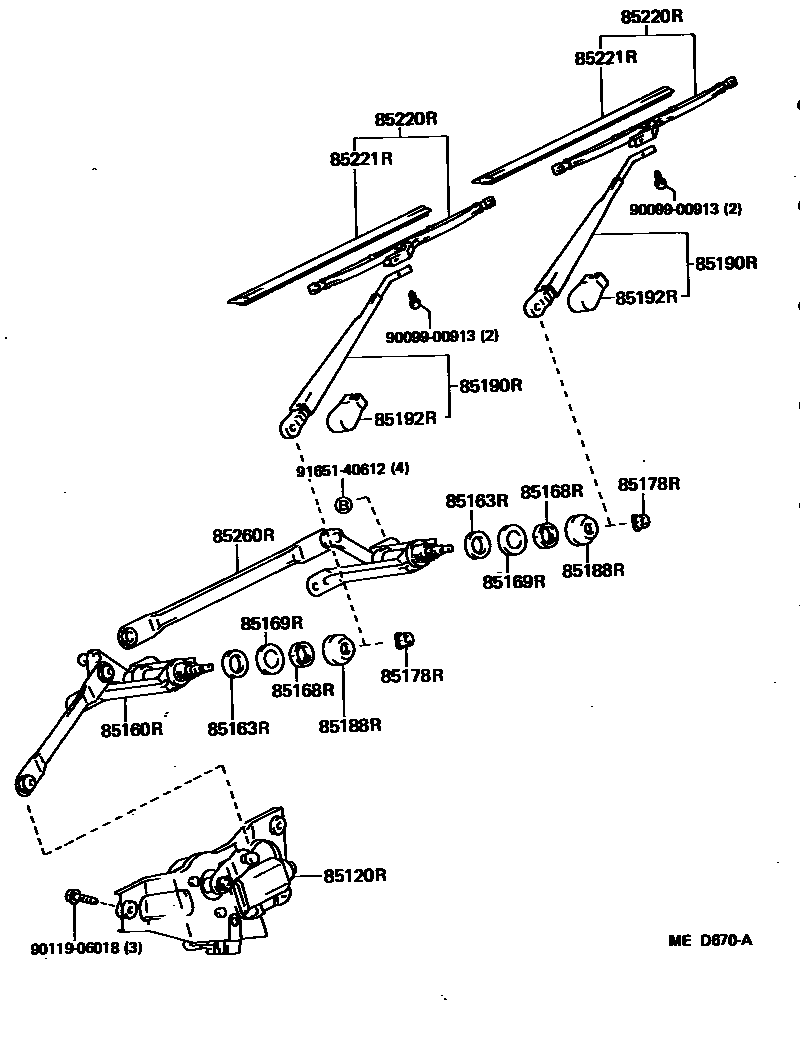

15 parts on this diagram · 1 diagram in section
