WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-30220iLS120,MS12#,YS120..RHD198308-198708

main85110-30230iLS120,MS12#,YS120..LHD..(GEN,SAA)198308-198708

sub85110-30250

main85110-30250iMS123..SAL198308-198509

85160LINK ASSY, WINDSHIELD WIPER

main85160-30140iLS120,MS12#,YS120..RHD198308-198708

sub85160-30150

main85160-30150iLS120..RHD198509-198708

TAXI SPEC

main85160-30160iLS120,MS12#,YS120..LHD198308-198708

sub85160-30170

main85160-30170iMS122..DLX..SAA198509-198708

TAXI SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08029iLS120,MS12#,YS120198308-198505

main90176-08033iLS120,MS12#,YS120198505-198708

85190ARM ASSY, WINDSHIELD WIPER

main85190-30320iLS120,MS12#,YS120..RHD198308-198708

RH

main85190-30330iLS120,MS12#,YS120..LHD..(GEN,SAA)198308-198708

LH

main85190-30350iMS123..SAL198308-198509

LH

main85210-30120iLS120,MS12#,YS120..RHD198308-198708

LH

main85210-30130iLS120,MS12#,YS120..LHD198308-198708

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16330iLS120,MS12#,YS120..RHD198308-198506

LH

sub85222-24050

main85220-16340iLS120,MS12#,YS120..LHD198308-198708

RH

sub85220-16640

main85220-16500iLS120,MS12#,YS120..RHD198506-198708

LH

sub85220-16330

main85220-16740iLS120..RHD198705-198708

LH,FULL-CONCEALED

sub85220-16321

main85220-30350iMS123..SAL198308-198509

LH

sub85222-23050

main85220-32280iLS120,MS12#,YS120..LHD..(GEN,SAA)198308-198708

LH

sub85220-3A060

main85220-32310iLS120,MS12#,YS120..RHD198308-198506

RH

sub85220-32311

main85220-32440iLS120,MS12#,YS120..RHD198506-198708

RH

sub85220-32310

main85220-32470iLS120..RHD198705-198708

RH,FULL-CONCEALED

sub85220-32400

85221BLADE, WINDSHIELD WIPER

main85221-30100iLS120,MS12#,YS120..LHD198308-198708

RH

sub85221-40040

main85221-30110iLS120,MS12#,YS120..RHD198308-198506

RH

sub85221-30130

main85221-30120iLS120,MS12#,YS120..RHD198308-198506

LH

sub85221-40040

main85221-30130iLS120,MS12#,YS120..RHD198506-198708

RH

sub85214-24H90

main85221-32060iLS120,MS12#,YS120..LHD198308-198708

LH

sub85221-30130

main85221-40040iLS120,MS12#,YS120..RHD198506-198708

LH

sub85214-24H90

9009900913

main90099-00913

9009900955

main90099-00955

9011906151

main90119-06151

9095001061

main90950-01061

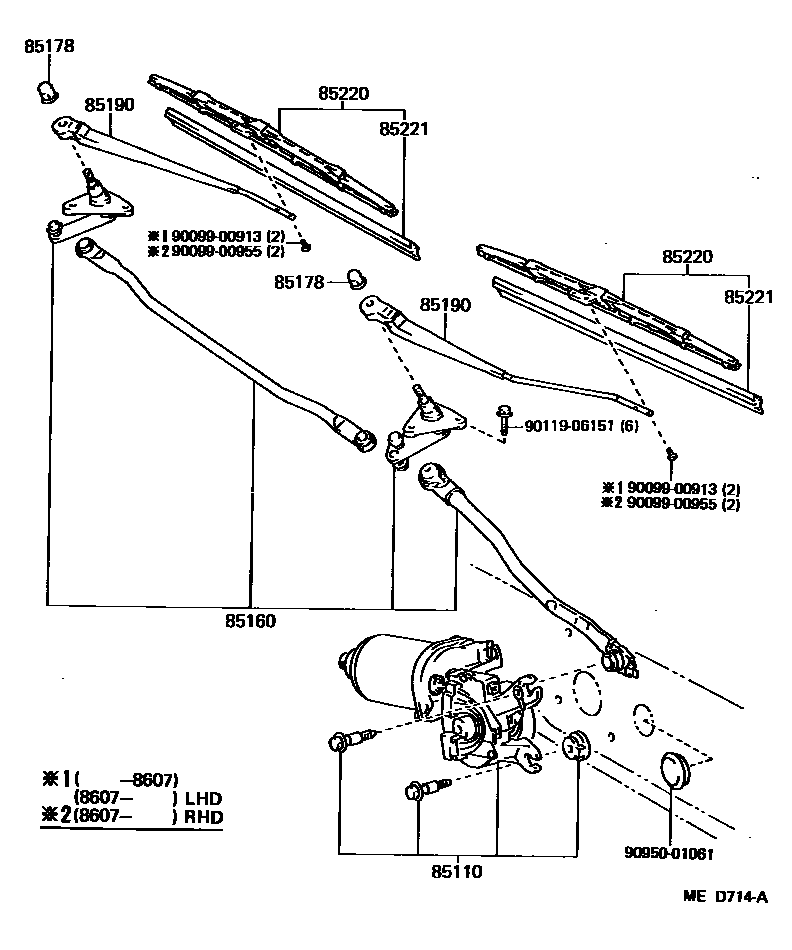

10 parts on this diagram · 1 diagram in section
