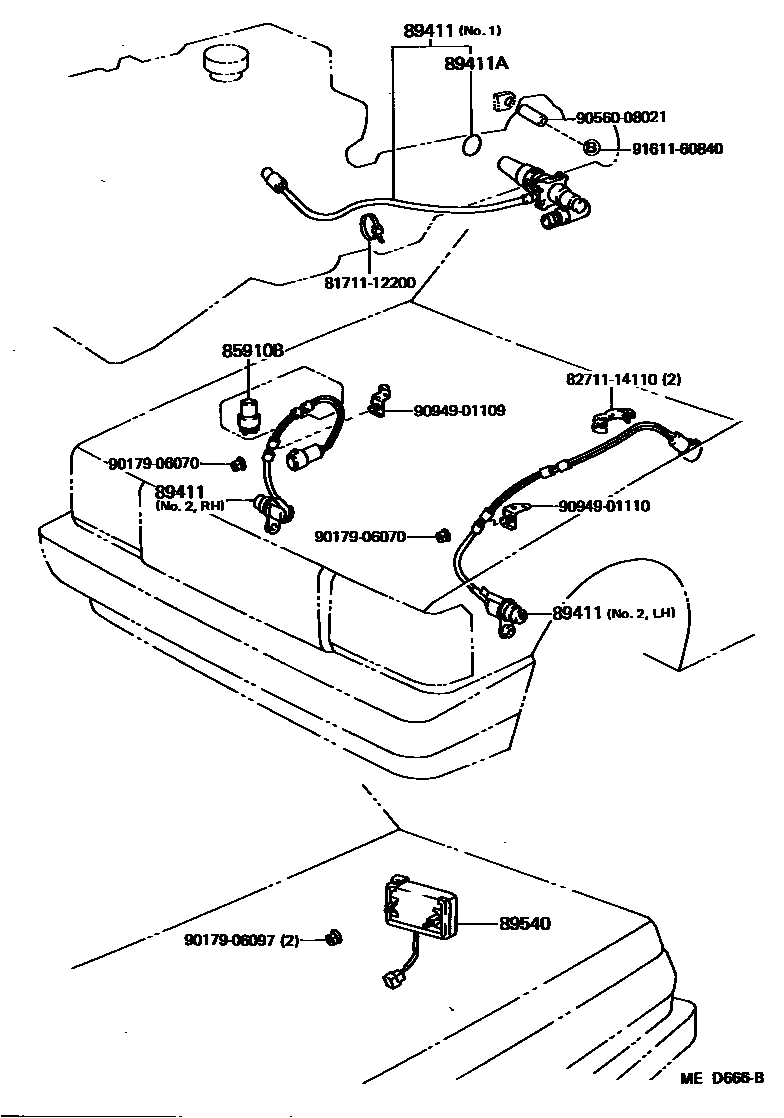

ABS & VSC

85910BRELAY ASSY, CIRCUIT OPENING (FOR ESC)

main90987-02004iMS123..4FC..EUG198308-198509

89411SENSOR, SPEED

main89411-22030iMS123..4FC..EUG198308-198509

NO.1

main89542-30020iMS123..4FC..EUG198308-198509

NO.2,RH

sub89542-30030

main89543-30020iMS123..4FC..EUG198308-198509

NO.2,LH

sub89543-30030

89411ARING, O (FOR SPEED SENSOR)

main90301-18018iMS123..4FC..EUG198308-198509

89540COMPUTER ASSY, SKID CONTROL

main89540-30070iMS123..4FC..EUG198308-198509

sub89540-30110

8171112200LENS, FRONT MARKER LAMP, RH

main81711-12200

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9017906070

main90179-06070

9017906097

main90179-06097

9056008021

main90560-08021

9094901109

main90949-01109

9094901110

main90949-01110

9161160840

main91611-60840

12 parts on this diagram · 1 diagram in section
