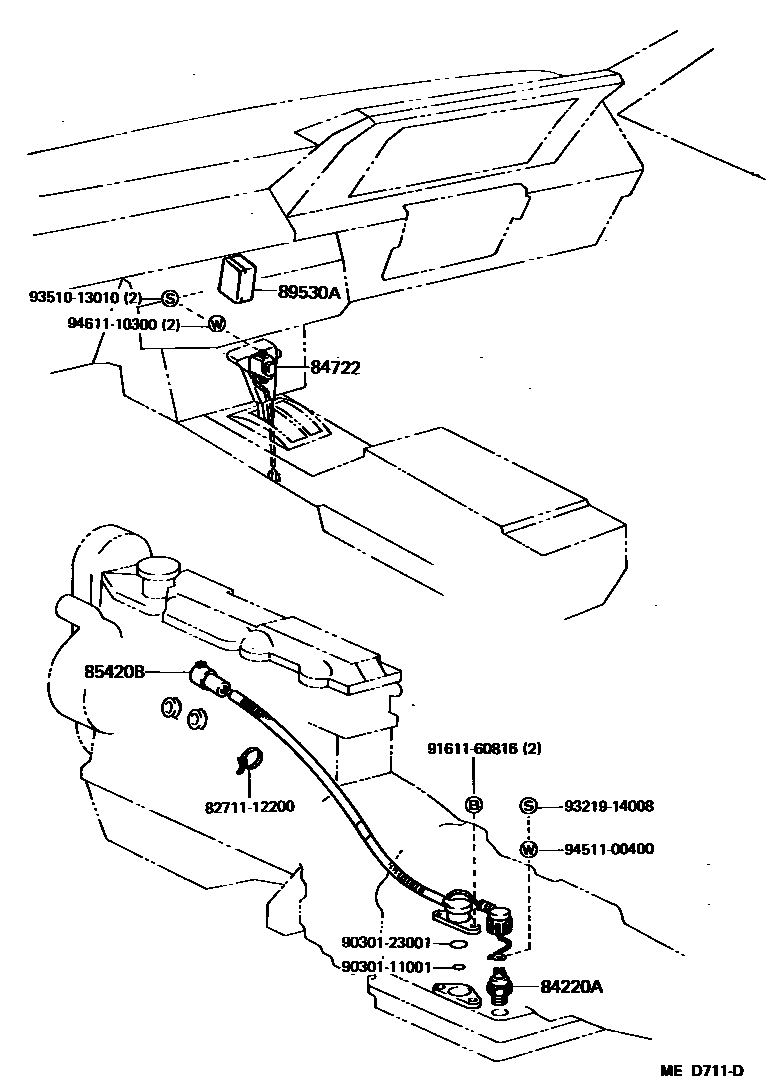

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84220ASWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-30050iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

84722SWITCH, TRANSMISSION CONTROL

main84722-14070-02iMS122,123..4FC..(ARL,GEN,SAA,SWZ)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub84722-14070

main84722-14070-04iMS122,123..4FC..(ARL,GEN,SAA,SWZ)198308-198708

BLUE,BLUE,TRIM8#

sub84722-14070

main84722-14070-05iMS122,123..4FC..(ARL,GEN,SAA,SWZ)198308-198509

BEIGE,BEIGE,TRIM4#

sub84722-14070

main84722-14070-12iMS122..4FC198509-198708

MAROON,MAROON,TRIM3#

sub84722-14070

main84722-14070-16iMS122..4FC198509-198708

BROWN,BROWN,TRIM4#

sub84722-14070

85420BSOLENOID ASSY, TRANSMISSION

main85420-30100iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

89530ACOMPUTER ASSY, TRANSMISSION CONTROL

main89530-30080iMS122,123..ATM..(ARL,GEN,SAA,SWZ)198308-198708

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9030111001

main90301-11001

9030123001

main90301-23001

9161160816

main91611-60816

9321914008

main93219-14008

9351013010

main93510-13010

9451100400

main94511-00400

9461110300

main94611-10300

12 parts on this diagram · 1 diagram in section
