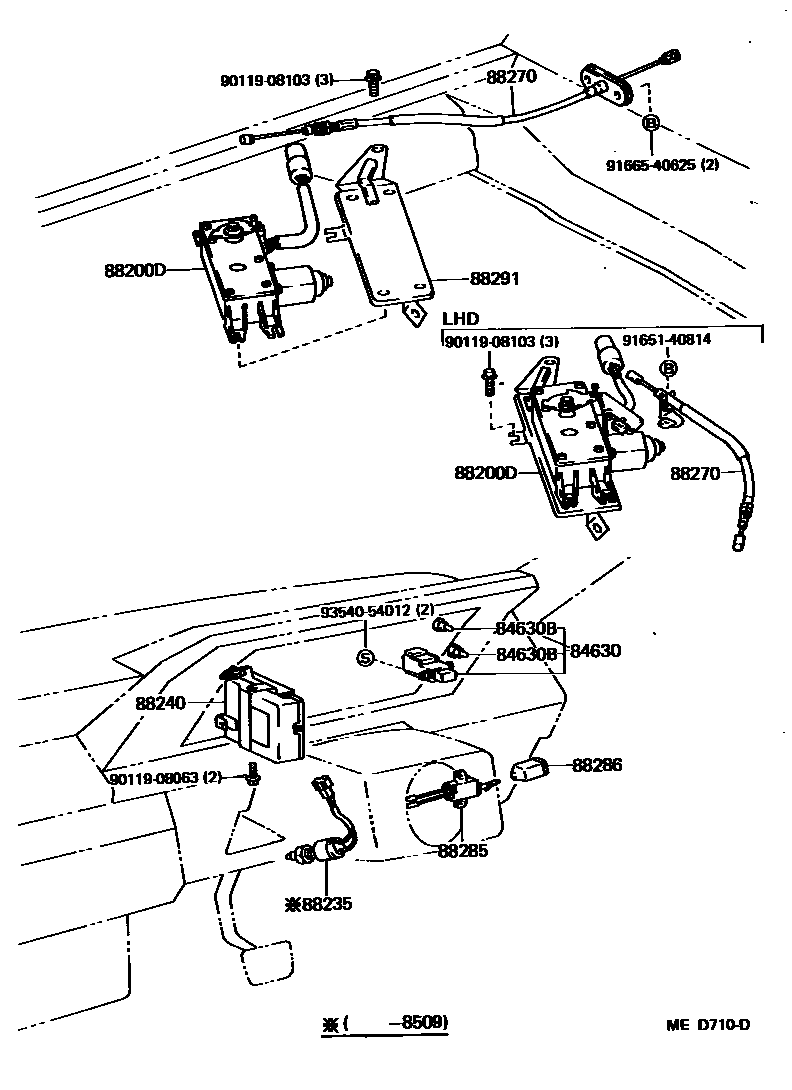

CRUISE CONTROL (AUTO DRIVE)

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-30030iMS123,125..ARL,EUG,GEN,SAA198308-198509

main84630-30031iMS123,125198509-198708

84630BBULB(FOR CRUISE CONTROL SWITCH)

main84999-10170iMS123,125..ARL,EUG,GEN,SAA198308-198708

12V 1.12W,12V 1.1W

main84999-10190iMS123,125198509-198708

12V 0.87W,12V 0.8W

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-30110iMS123,125..RHD198308-198708

main88200-30121iMS123..LHD..(EUG,GEN,SAA)198308-198410

main88200-30122iMS123,125..LHD..(EUG,GEN,SAA)198410-198708

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-35010iMS123..5F198308-198509

88240COMPUTER ASSY, CRUISE CONTROL

main88240-30100iMS123,125..RHD198308-198708

main88240-30110iMS123..LHD..(EUG,GEN,SAA)198308-198410

sub88240-30111

main88240-30111iMS123,125..LHD..(EUG,GEN,SAA)198410-198708

88270CABLE ASSY, CRUISE CONTROL(AUTO DRIVE)

main83731-30070iMS123,125..RHD198308-198708

main83731-30081iMS123,125..LHD..(EUG,GEN,SAA)198308-198708

88285SWITCH, CRUISE CONTROL

main88285-30011iMS123,125..ARL,EUG,GEN,SAA198308-198708

88286KNOB, SPEED CONTROL SWITCH

main88286-30021iMS123,125..ARL,EUG,GEN,SAA198308-198708

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-30050iMS123,125..ARL,EUG,GEN,SAA198308-198708

9011908063

main90119-08063

9011908103

main90119-08103

9165140814

main91651-40814

9166540625

main91665-40625

9354054012

main93540-54012

14 parts on this diagram · 1 diagram in section
