SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

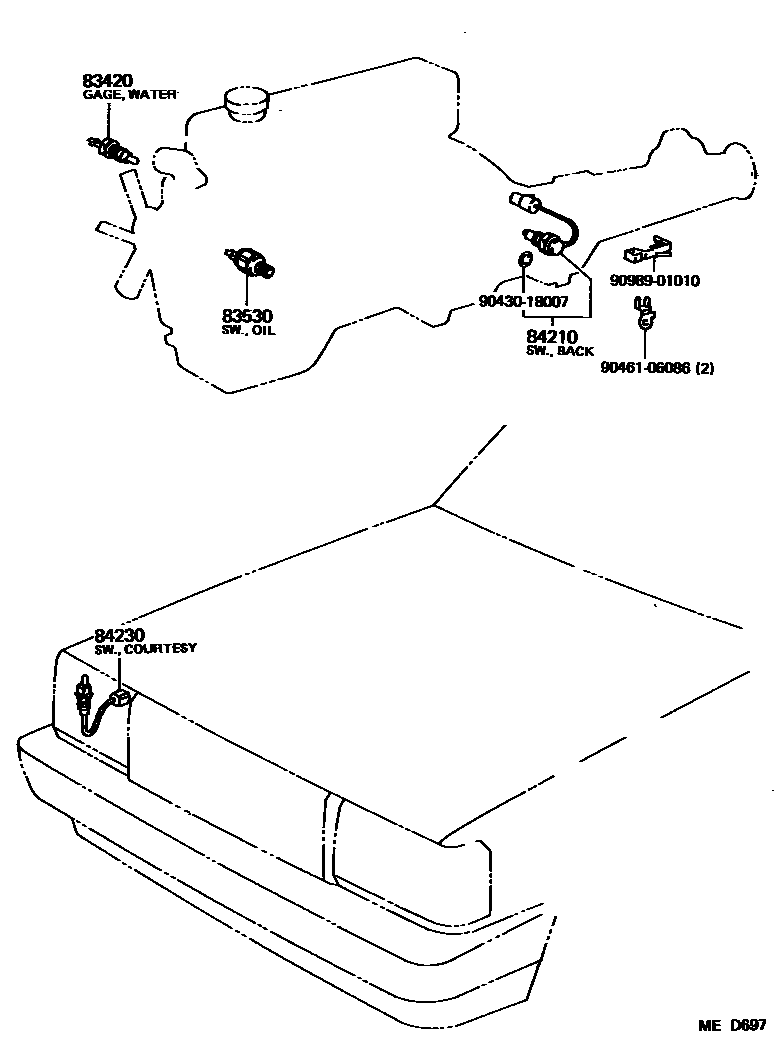

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iLS120,MS12#,YS120198308-198708

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iYS120198308-198502

main83530-14030iYS120198502-198708

sub83530-28030

main83530-30050iMS12#198308-198708

sub83530-30051

main83530-30060iLS120198502-198708

sub83530-60030

main83530-36011iLS120198308-198502

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iLS120,MS122,123,YS120..MTM198308-198708

84230SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM)

main84231-30030iLS120,MS12#,YS120198308-198408

main84231-30050iLS120,MS12#,YS120198408-198508

main84231-30060iLS120,MS12#,YS120198508-198708

9043018007

main90430-18007

9046106086

main90461-06086

9098901010

main90989-01010

7 parts on this diagram · 13 diagrams in section
