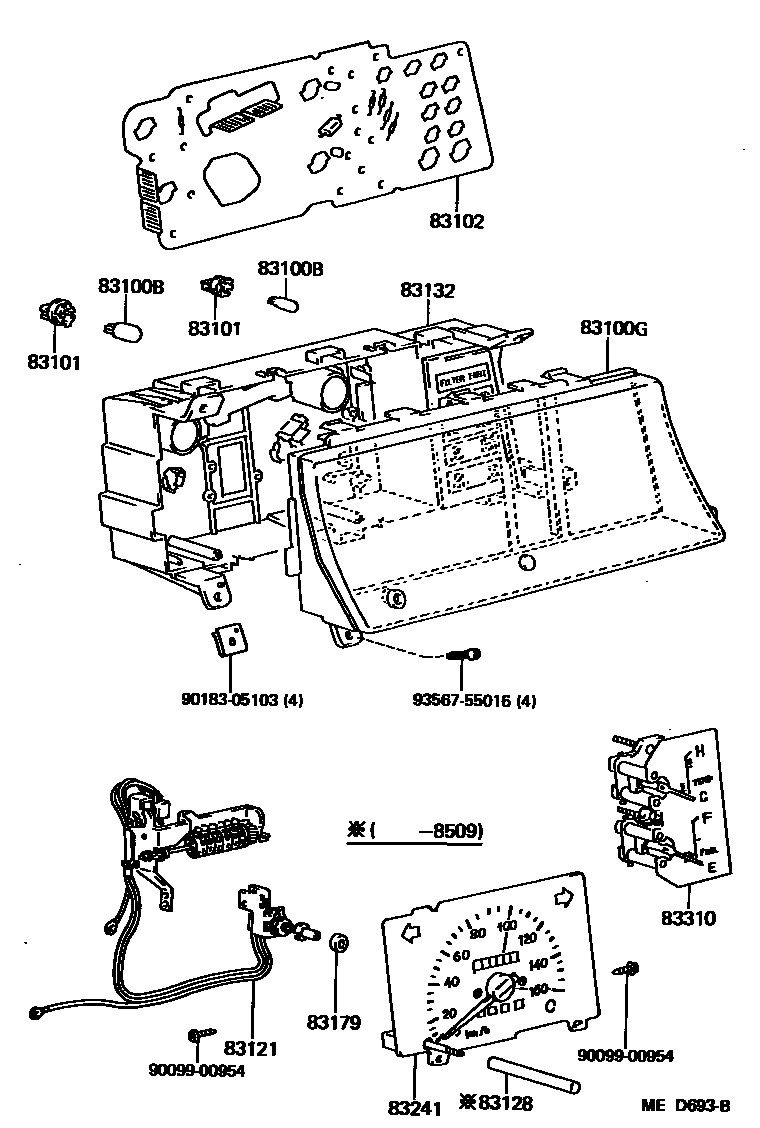

METER

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1

83100BBULB, COMBINATION METER, NO.1

main83109-24030×5iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198708

12V3.4W W(GREEN CAP)

main83109-24040iMS12#..LHD..(ROY,SAL)198308-198708

12V1.4W W(GREEN CAP)

main83109-30030×2iLS120..RHD..4H198308-198708

12V 3.4W LONG LIFE,W/GREEN CAP

main83109-30040iLS120..RHD..4H198308-198708

12V 2.0W LONG LIFE,W/GREEN CAP

main90981-11018×8iLS120..RHD..4H198308-198708

12V 1.2W W/O SOCKET

main90981-11036iLS120..RHD..4H198509-198708

12V 1.7W

main99132-12034×4iLS120,MS12#,YS120198308-198708

12V 3.4W

83100GGLASS, COMBINATION METER

main83138-3A010iYS120198308-198509

main83138-3A030iLS120..4F,5F;LS120..LHD..STD198308-198509

main83138-3A050iMS12#..RHD198308-198509

main83138-3A090iMS122,123..LHD198308-198509

main83138-3A230iLS120..RHD..4H198308-198509

main83138-3A250iMS125..LHD198410-198708

W/*DS

main83138-3A270iLS120..RHD..4H198509-198708

main83138-3A330iMS12#..RHD198509-198708

main83138-3A350iMS122..LHD..(ROY,SAL)198509-198708

main83138-3A370iLS120..4F;LS120..LHD198509-198708

main83138-3A390iMS122,YS120..DLX,STD198509-198708

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×4iLS120,MS12#,YS120198308-198708

12V 3.4W,BLACK

main83101-14040×8iLS120..RHD..4H198308-198708

12V 1.4W,BLACK

main83101-28010×5iLS120..4F;LS120..LHD;MS122,YS120..DLX,STD198509-198708

12V 3.4W,GREEN

main83101-30020×2iLS120..RHD..4H198308-198708

12V 3.4W LONG LIFE,BLUE

main83101-30030iLS120..RHD..4H198308-198708

12V 2.0W LONG LIFE,BLUE

main83101-87001iMS122,123..LHD198308-198509

12V 1.4W,GREEN

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-30430iLS120..4F198308-198708

SINGAPORE SPEC

main83247-30490iYS120198308-198509

main83247-30510iMS122..DLX198509-198708

main83247-30570iMS122,123..LHD..(ROY,SAL)..(EUG,GEN,SWZ)198308-198708

main83247-30590iMS123..LHD..GEN;MS122..LHD..(4FC,5F)..SAL198308-198401

SAUDI ARABIA SPEC

main83247-3A350iLS120..RHD..4H198308-198708

sub83247-3A150

main83247-3A410iMS12#..RHD198308-198708

sub83247-3A590

main83247-3A450iMS125..LHD198410-198708

W/*DS

83121COUNTER, TOTAL

main83121-30070iLS120..4F,5F;LS120..LHD..STD198308-198708

KM

main83121-30090iLS120..4F,5F;LS120..LHD..STD198308-198708

MILE/KM

main83121-30130iLS120..RHD..4H198308-198708

KM

main83121-30150iLS120..RHD..4H198308-198708

MILE/KM

main83121-30190iMS125..LHD198410-198708

W/*DS

83128KNOB, TRIP COUNTER

main83128-16110iLS120..RHD..4H198308-198509

main83128-30710iMS125..LHD198410-198708

W/*DS

main83128-32010iYS120;LS120..4F,5F;LS120..LHD..STD198308-198708

83132CASE, COMBINATION METER

main83131-30590iMS125..LHD198410-198708

W/*DS

main83132-30310iYS120;LS120..4F,5F;LS120..LHD..STD198308-198708

main83132-30330iMS12#..RHD198308-198708

main83132-30350iMS122,123..LHD..(ROY,SAL)198308-198708

main83132-30510iLS120..RHD..4H198308-198509

main83132-3A110iLS120..RHD..4H198509-198708

83179COVER, COMBINATION METER, HOLE

main83146-30850iLS120198308-198509

main83153-30800iLS120..4F;LS120..LHD198509-198708

83241METER SUB-ASSY, SPEED

main83241-30250iLS120..4F,5F;LS120..LHD..STD198308-198509

KM

main83241-30270iLS120..4F,5F;LS120..LHD..STD198308-198509

MILE/KM

main83241-30350iLS120..RHD..4H198308-198509

KM

main83241-30370iLS120..RHD..4H198308-198509

MILE/KM

main83241-30390iLS120..4F198308-198509

KM,SINGAPORE SPEC

main83241-30470iLS120..4F;LS120..LHD198509-198708

KM

main83241-30490iLS120..4F;LS120..LHD198509-198708

MILE/KM

main83241-30510iLS120..4F198509-198708

KM,SINGAPORE SPEC

main83241-30590iLS120..RHD..4H198509-198708

KM

main83241-30610iLS120..RHD..4H198509-198708

MILE/KM

83310GAGE ASSY, FUEL RECEIVER

main83243-30090iMS122,123..LHD198308-198509

main83243-30170iYS120;LS120..4F,5F;LS120..LHD..STD198308-198509

main83243-30190iMS12#..RHD198308-198509

main83243-30210iLS120..RHD..4H198308-198509

main83243-30270iMS12#..RHD198509-198708

main83243-30290iMS122..LHD..(ROY,SAL)198509-198708

main83243-30350iYS120;LS120..4F;LS120..LHD198509-198708

main83243-30410iLS120..RHD..4H198509-198708

9009900954

main90099-00954

9018305103

main90183-05103

9356755016

main93567-55016

13 parts on this diagram · 7 diagrams in section
