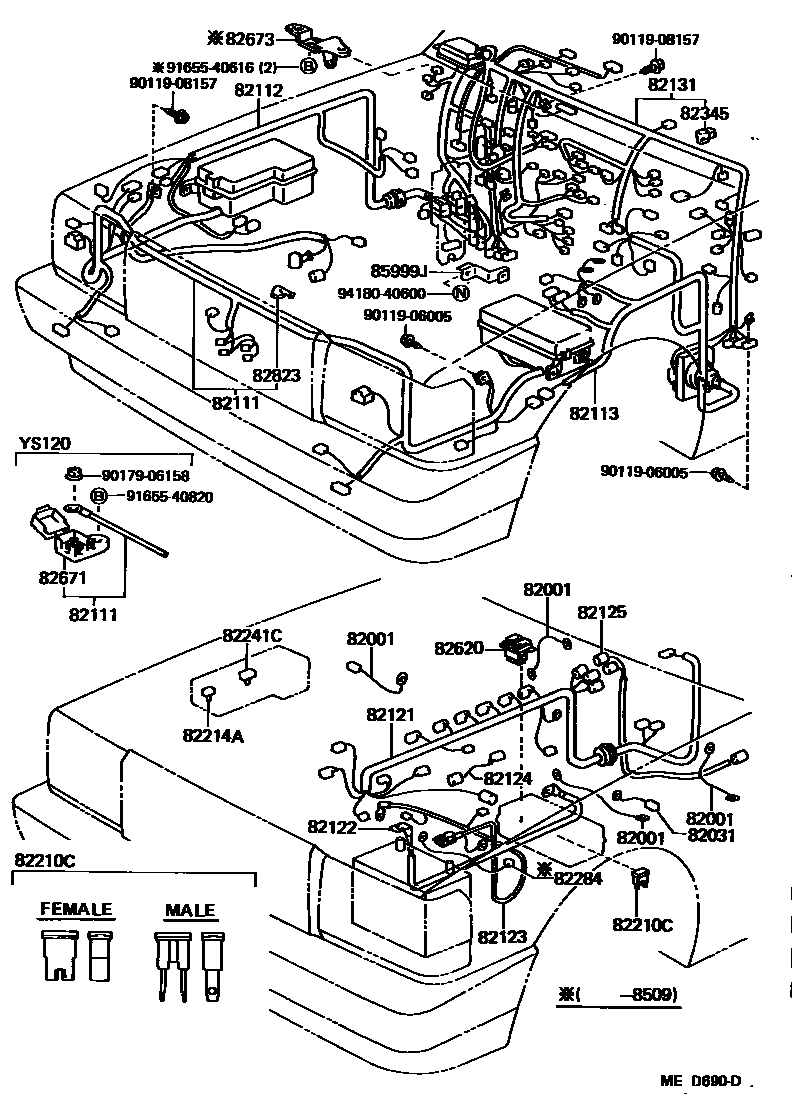

WIRING & CLAMP
82001CABLE, BOND, NO.1
ENGINE--CONDENSER
TRANSMITION--FRAME
ENGINE--DASH PANEL
CLUTCH HOUSING--BODY
TRANSMITION--FRAME
82031WIRE SUB-ASSY, IGNITION COIL
sub82031-30160
82111WIRE, ENGINE ROOM MAIN
sub82111-30401
sub82111-30411
sub82111-30414
sub82111-30451
sub82111-30533
sub82111-30721
82121WIRE, ENGINE
82122WIRE, ENGINE, NO.2
82123WIRE, ENGINE, NO.3
BATTERY=NS#
BATTERY=N#,NS(S)#,55D#
BATTERY=NS#
BATTERY=N#,NS(S)#,55D#
82124WIRE, ENGINE, NO.4
ENGINE WIRE--ALTERNATOR
82125WIRE, TRANSMISSION
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK,30A..FEMALE
40A,TERM.:FEMALE,GRN,40A
80A,TERM.:MALE,BLK,80A
30A,TERM.:MALE,PNK,30A..MALE
82214AWIRE, LAMP
82241CWIRE, RELAY
82284WIRE, EARTH
CONDENSER--ENGINE
82345DIODE
82620BLOCK ASSY, FUSIBLE LINK
82671BLOCK, JUNCTION
NO.1,LH
RH
RH
NO.2,LH
LH
82673BRACKET, JUNCTION BLOCK
82823CAP, TERMINAL, NO.1
85999JBRACKET, CIRCUIT BREAKER
9011906005
9011908157
9017906158
9165540616
9165540820
9418040600
27 parts on this diagram · 10 diagrams in section
