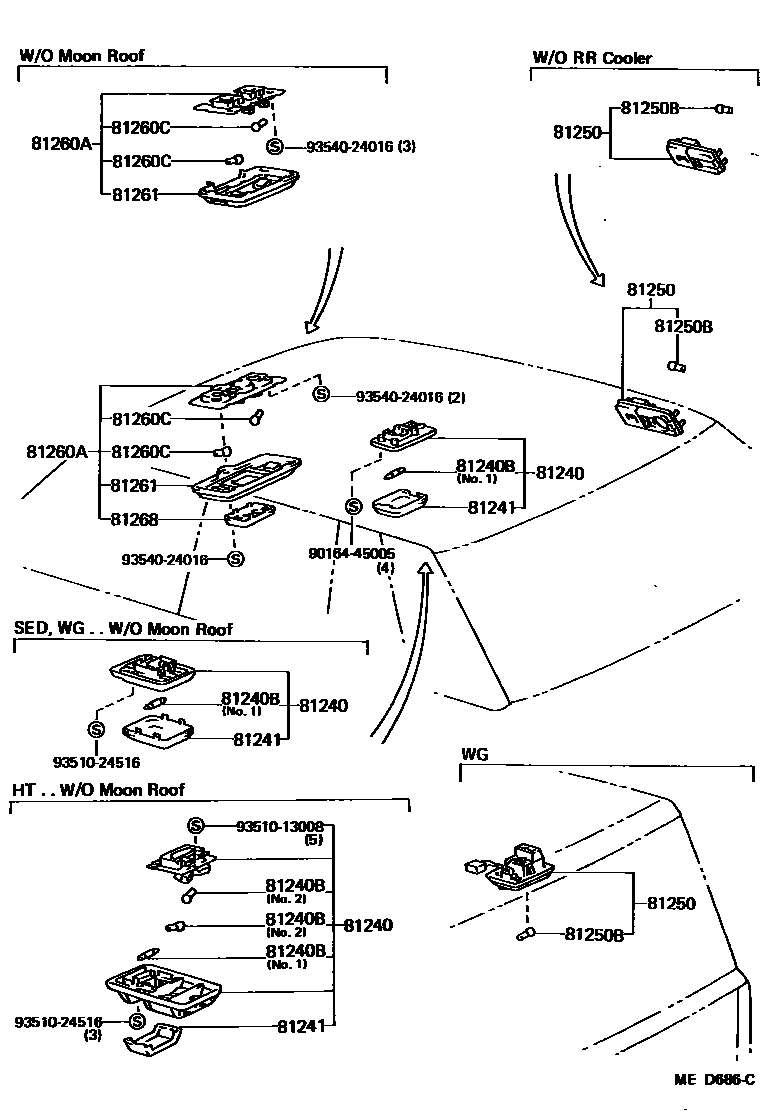

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-16010-14iMS12#..SED..(EUG,GEN,SAA,SWZ)198308-198509

W/MOON ROOF,LIGHT BLUE,BLUE,TRIM8#

sub81240-16010

sub81240-22060

main81240-16010-15iMS12#..SED..(EUG,GEN,SAA,SWZ)198308-198509

W/MOON ROOF,BEIGE,BEIGE,TRIM3#,4#

sub81240-16010

sub81240-22060

main81240-22080-14iMS122,125..(HT,SED)..(ROY,SAL)198509-198608

W/MOON ROOF,BLUE,BLUE,TRIM8#

sub81240-22081

main81240-22080-15iMS122,125..(HT,SED)..(ROY,SAL)198509-198608

W/MOON ROOF,BEIGE,BEIGE,TRIM3#,4#

sub81240-22081

main81240-22081-14iMS122,125..(HT,SED)..(ROY,SAL)198608-198708

W/MOON ROOF,BLUE,BLUE,TRIM8#

sub81240-22081

main81240-22081-15iMS122,125..(HT,SED)..(ROY,SAL)198608-198708

W/MOON ROOF,BEIGE,BEIGE GRAY,TRIM3#,4#

sub81240-22081

main81240-30070-14iLS120,MS12#,YS120..SED,WG198308-198708

LIGHT BLUE,BLUE,TRIM8#

sub81240-30070

main81240-30070-15iLS120,MS12#,YS120..SED,WG198308-198708

BEIGE,BEIGE,TRIM3#,4#

sub81240-30070

main81240-30090-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

sub81240-30090

main81240-30090-05iMS122,125..HT198509-198708

BEIGE,BEIGE,TRIM3#,4#

sub81240-30090

81240BBULB, ROOM LAMP, NO.1

main90981-12014iMS122,125..HT198509-198708

12V 10W,12V 10W,NO.2

main99132-12100iLS120,MS12#,YS120..SED,WG198308-198708

12V 10W,12V 10W

main99132-12100iMS122,125..HT198509-198708

12V 10W,12V 10W,NO.1

81241LENS, ROOM LAMP, NO.1

main81241-16010iMS12#..SED..(EUG,GEN,SAA,SWZ)198308-198509

W/MOON ROOF

sub81241-20060

main81241-20060iMS122,125..(HT,SED)..(ROY,SAL)198509-198708

W/MOON ROOF

main81241-30070iLS120,MS12#,YS120..SED,WG198308-198708

main81241-30090iMS122,125..HT198509-198708

81250LAMP ASSY, ROOM, NO.2

main81250-30060-04iLS120,MS122,123,YS120..SED..SAL198308-198708

RH,LIGHT-BLUE,BLUE,TRIM8#

sub81250-30060

main81250-30060-05iLS120,MS122,123,YS120..SED..SAL198308-198708

RH,BEIGE,BEIGE,TRIM3#,4#

sub81250-30060

main81250-30070-04iMS12#..SED..(ROY,SAL)198308-198708

RH,W/RR COOLER,LIGHT BLUE,BLUE,TRIM8#

sub81250-30070

main81250-30070-05iMS12#..SED..(ROY,SAL)198308-198708

RH,W/RR COOLER,BEIGE,BEIGE,TRIM3#,4#

sub81250-30070

main81250-91701-14iMS122..WG198308-198708

LIGHT BLUE,BLUE,TRIM8#

sub81250-91701

main81250-91701-15iMS122..WG198308-198708

BEIGE,BEIGE,TRIM3#,4#

sub81250-91701

main81290-30050-04iLS120,MS122,123,YS120..SED..SAL198308-198708

LH,LIGHT-BLUE,BLUE,TRIM8#

main81290-30050-05iLS120,MS122,123,YS120..SED..SAL198308-198708

LH,BEIGE,BEIGE,TRIM3#,4#

main81290-30060-04iMS12#..SED..(ROY,SAL)198308-198708

LH,W/RR COOLER,LIGHT BLUE,BLUE,TRIM8#

main81290-30060-05iMS12#..SED..(ROY,SAL)198308-198708

LH,W/RR COOLER,BEIGE,BEIGE,TRIM3#,4#

81250BBULB, ROOM LAMP, NO.2

main90049-51052iLS120,MS12#,YS120..ROY,SAL198308-198708

12V 10W,12V 10W

81260LAMP ASSY, GLOVE BOX

main81260-22070iLS120..RHD..4H198308-198708

81260ALAMP ASSY, MAP

main81260-30100-04iLS120,MS12#,YS120..ROY,SAL198308-198708

LIGHT BLUE,BLUE,TRIM8#

sub81260-30100

main81260-30100-05iLS120,MS12#,YS120..ROY,SAL198308-198708

BEIGE,BEIGE,TRIM3#,4#

sub81260-30100

main81260-30130-04iMS12#..SED..(EUG,GEN,SAA,SWZ)198308-198509

W/MOON ROOF,LIGHT BLUE,BLUE,TRIM8#

sub81260-30130

main81260-30130-04iMS122,125..(HT,SED)..(ROY,SAL)198509-198708

W/MOON ROOF,BLUE,BLUE,TRIM8#

sub81260-30130

main81260-30130-05iMS12#..SED..(EUG,GEN,SAA,SWZ)198308-198708

W/MOON ROOF,BEIGE,BEIGE,TRIM3#,4#

sub81260-30130

81260CBULB(FOR MAP LAMP)

main90981-12005iMS12#..SED..(EUG,GEN,SAA,SWZ)198308-198708

12V 8W,W/MOON ROOF,12V 8W

main90981-12014iLS120,MS12#,YS120..ROY,SAL198308-198708

12V 10W,12V 10W

81261LENS AND COVER, MAP LAMP

main81261-22061-05iMS122,125..(HT,SED)..(ROY,SAL)198308-198708

BEIGE,W/MOON ROOF,BEIGE,TRIM3#,4#

sub81261-22061

main81261-22061-14iMS12#..SED..(EUG,GEN,SAA,SWZ)198308-198509

LIGHT BLUE,W/MOON ROOF,BLUE,TRIM8#

sub81261-22061

main81261-30100-04iLS120,MS12#,YS120..ROY,SAL198308-198708

LIGHT BLUE,BLUE,TRIM8#

sub81261-30100

main81261-30100-05iLS120,MS12#,YS120..ROY,SAL198308-198708

BEIGE,BEIGE,TRIM3#,4#

sub81261-30100

81268CAP MAP LAMP

main81268-22060-05iMS122,125..(HT,SED)..(ROY,SAL)198308-198708

BEIGE,W/MOON ROOF,BEIGE,TRIM3#,4#

sub81261-22061

main81268-22060-14iMS122,123..SED..(EUG,GEN,SAA,SWZ)198308-198509

LIGHT BLUE,W/MOON ROOF,BLUE,TRIM8#

sub81261-22061

main81268-22060-14iMS122,125..(HT,SED)..(ROY,SAL)198509-198708

BLUE,W/MOON ROOF,BLUE,TRIM8#

sub81261-22061

9016445005

main90164-45005

9351013008

main93510-13008

9351024516

main93510-24516

9354024016

main93540-24016

14 parts on this diagram · 2 diagrams in section
