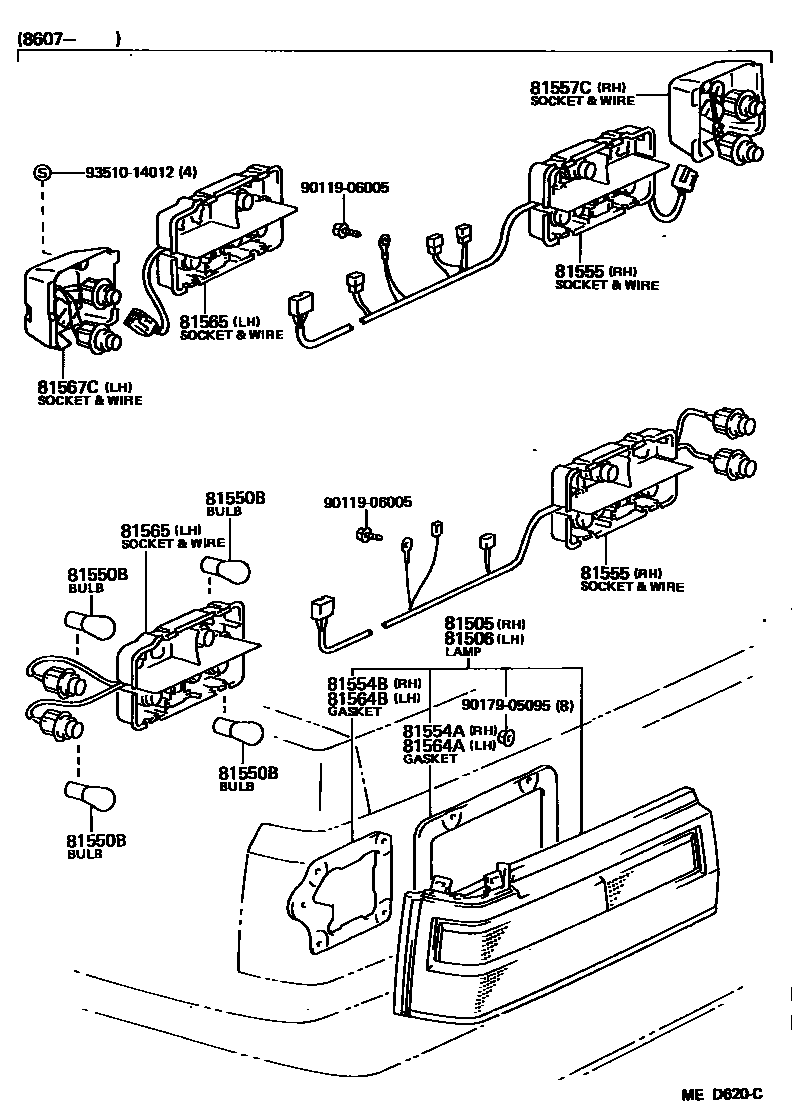

REAR COMBINATION LAMP

0001 1*LPL=LOWER LIGHTING 0003 1 0004 1 0006 1 0007 1

81505LAMP SUB-ASSY, REAR COMBINATION, RH

main81505-30141iLS120,MS122,125,YS120..SED198607-198708

*LPL=LOWER LIGHTING

main81505-30170iMS123,125..SED198509-198708

*LPL=SIDE LIGHTING

main81505-30180iMS122,125..HT198509-198708

main81505-39185iMS123,125..ROY198308-198509

main81505-39195iMS125..RHD..4FC198410-198607

*LPL=LOWER LIGHTING

sub81505-30141

main81505-39195iMS123..RHD..4FC198406-198509

BRUNEI SPEC

sub81505-30141

main81505-39195iLS120,MS122,YS120..SED198308-198509

sub81505-30141

main81505-39205iMS123..SAL;MS122..4HC;MS122..RHD..ROY198308-198509

W/RR FOG LAMP

81506LAMP SUB-ASSY, REAR COMBINATION, LH

main81506-30121iLS120,MS122,125,YS120..SED198607-198708

*LPL=LOWER LIGHTING

main81506-30150iMS123,125..SED198509-198708

*LPL=SIDE LIGHTING

main81506-30160iMS122,125..HT198509-198708

main81506-39165iMS123,125..ROY198308-198509

main81506-39175iLS120,MS122,YS120..SED198308-198509

sub81506-30121

main81506-39175iLS120,MS122,125,YS120..SED198410-198607

*LPL=LOWER LIGHTING

sub81506-30121

main81506-39175iMS123..RHD..4FC198406-198509

BRUNEI SPEC

sub81506-30121

main81506-39185iMS123..SAL;MS122..4HC;MS122..RHD..ROY198308-198509

W/RR FOG LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-80188iMS122..WG198308-198708

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-12013iMS123,125..ROY198410-198603

12V 10W,12V 10W(LICENCE)

main90981-12016iMS123,125..SED198603-198708

12V 10W(LICENCE)

sub90981-12013

main99132-11100iMS123..ROY198308-198410

12V 10W,12V 10W(LICENCE)

main99132-11210iMS123..SAL;MS122..4HC;MS122..RHD..ROY198308-198509

12V 21W,12V 21W(BACK,FOG & TURN)

main99132-11230iLS120,MS12#,YS120..ARL,GEN,SAA198308-198708

12V 23W,12V 23W(BACK & TURN)

main99132-21210iLS120,MS12#,YS120198308-198708

12V 21/5W,12V 21/5W(STOP & TAIL)

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-91704iMS122..WG198308-198708

main81554-30510iMS123,125..ROY198308-198708

81554AGASKET, REAR COMBINATION LAMP BODY, NO.1 RH

main81554-30520iLS120,MS12#,YS120..SED198308-198708

main81554-30540iMS122,125..HT198509-198708

81554BGASKET, REAR COMBINATION LAMP BODY, NO.2 RH

main81556-30520iLS120,MS12#,YS120..SED198308-198708

main81556-30540iMS122,125..HT198509-198708

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-30510iMS123,125..ROY198308-198509

sub81555-30511

main81555-30511iMS123,125..SED198509-198708

main81555-30520iLS120,MS122,YS120..SED198308-198509

sub81555-30521

sub81557-30520

sub93510-14012

main81555-30520iMS123..RHD..4FC198406-198509

BRUNEI SPEC

sub81555-30521

sub81557-30520

sub93510-14012

main81555-30520iMS125..RHD..4FC198410-198607

*LPL=LOWER LIGHTING

sub81555-30521

sub81557-30520

sub93510-14012

main81555-30521iLS120,MS122,125,YS120..SED198607-198708

*LPL=LOWER LIGHTING

main81555-30530iMS123..EUG;MS122..4HC;MS122..RHD..ROY198308-198509

W/RR FOG LAMP

main81555-30541iMS122,125..HT198509-198708

*LPL=SIDE LIGHTING

main81555-30550iMS123..SWZ198308-198509

main81555-91704iMS122..WG198308-198708

81557CCOVER, REAR COMBINATION LAMP, RH

main81557-30520iLS120,MS122,125,YS120..SED198607-198708

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-91704iMS122..WG198308-198708

main81554-30510iMS123,125..ROY198308-198708

81564AGASKET, REAR COMBINATION LAMP BODY, NO.1 LH

main81554-30520iLS120,MS12#,YS120..SED..(ARL,EUG,GEN,SAA)198308-198708

main81554-30540iMS122,125..HT198509-198708

81564BGASKET, REAR COMBINATION LAMP BODY, NO.2 LH

main81556-30520iLS120,MS12#,YS120..SED..(ARL,EUG,GEN,SAA)198308-198708

main81556-30540iMS122,125..HT198509-198708

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-91704iMS122..WG198308-198708

main81565-30480iMS123,125..ROY198308-198509

sub81565-30481

main81565-30481iMS123,125..SED198509-198708

*LPL=SIDE LIGHTING

main81565-30490iMS125..RHD..4FC198410-198607

*LPL=LOWER LIGHTING

sub81565-30491

sub81567-30490

sub93510-14012

main81565-30490iLS120,MS122,YS120..SED198308-198509

sub81565-30491

sub81567-30490

sub93510-14012

main81565-30490iMS123..RHD..4FC198406-198509

BRUNEI SPEC

sub81565-30491

sub81567-30490

sub93510-14012

main81565-30491iLS120,MS122,125,YS120..SED198607-198708

*LPL=LOWER LIGHTING

main81565-30500iMS123..EUG;MS122..4HC;MS122..RHD..ROY198308-198509

W/RR FOG LAMP

main81565-30511iMS122,125..HT198509-198708

81567CCOVER, REAR COMBINATION LAMP, LH

main81567-30490iLS120,MS122,125,YS120..SED198607-198708

9011906005

main90119-06005

9017905095

main90179-05095

9351014012

main93510-14012

17 parts on this diagram · 5 diagrams in section
