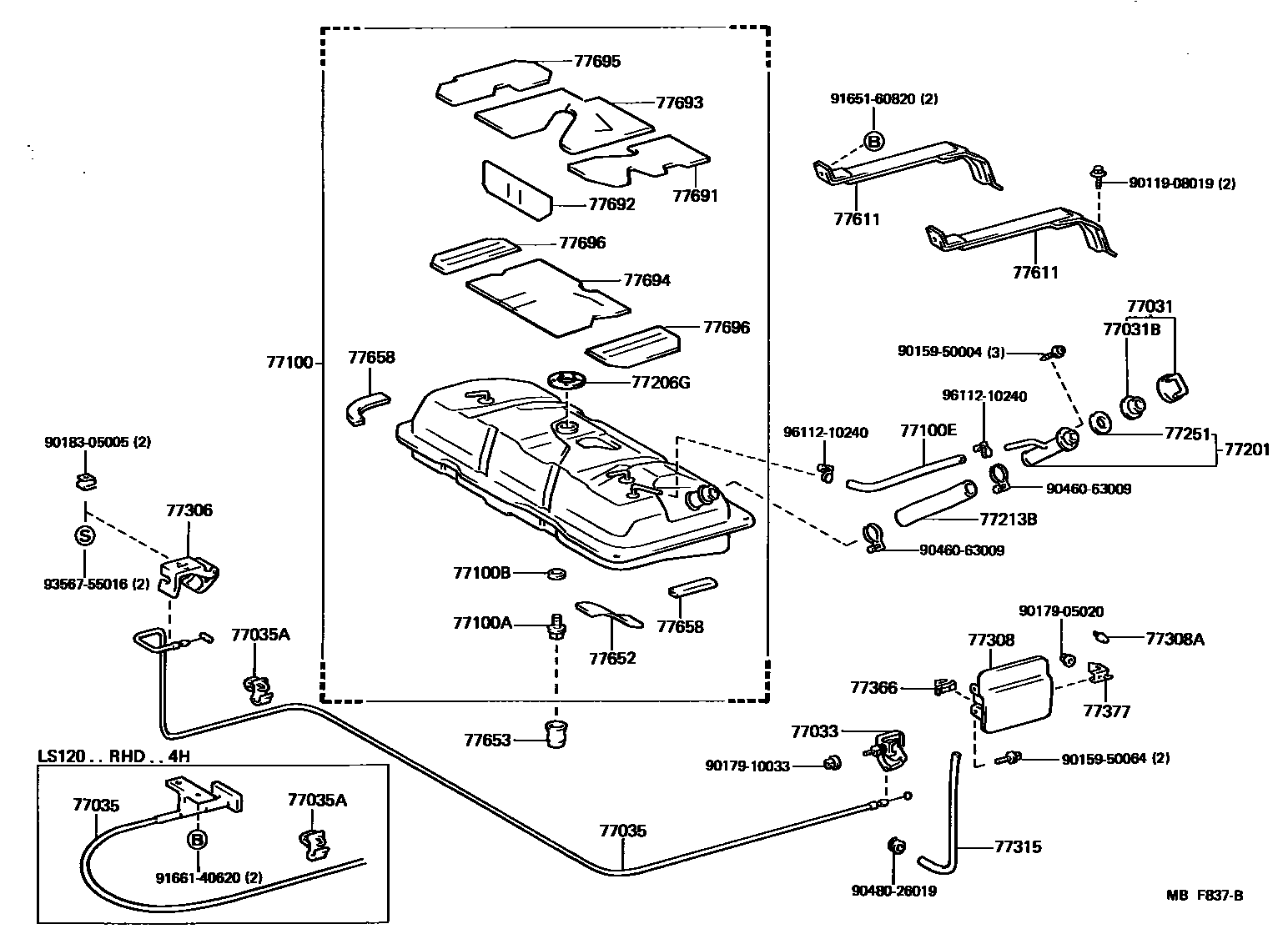

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

77031CAP ASSY, FUEL TANK

main77310-12100iMS12#,YS120¥2,320198308-198708

main77310-35061iLS120¥2,320198308-198708

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iLS120,MS12#,YS120¥310198308-198708

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-14010iLS120,MS12#,YS120..HT,SED¥1,350198308-198708

sub77037-90K00¥1,610

main77037-32010iMS122..WG¥1,350198308-198708

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77030-30010iLS120..RHD..4H¥3,380198308-198708

sub77030-91701¥3,620

main77035-30070iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)¥3,130198308-198708

main77035-30090iLS120,MS12#,YS120..SED..LHD¥2,370198308-198708

sub77035-30150¥2,490

main77035-91702iMS122..WG198308-198708

77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)

main69749-12010iMS122..WG¥140198308-198708

FR

main69749-30030iLS120,MS12#,YS120¥240198308-198708

RR

77100TANK ASSY, FUEL

main77001-30270iMS123,125¥49,000198308-198708

main77001-39175iMS122..WG198308-198708

main77001-39185iLS120¥47,600198308-198708

main77001-39195iMS122,YS120..SED¥47,600198308-198401

sub77001-39185¥47,600

77100APLUG(FOR FUEL TANK)

main90105-12018iLS120,MS12#,YS120¥380198308-198708

77100BGASKET(FOR FUEL TANK)

main90430-12245iLS120,MS12#,YS120¥160198308-198708

77100EHOSE, FUEL, NO.2(FOR FUEL TANK)

main90445-14114iMS122..WG¥3,500198308-198708

L=800

main90445-22010iLS120,MS122,YS120..HT,SED¥620198308-198708

sub90445-22002¥600

main90445-22912iMS123,125¥660198308-198708

L=220

sub90445-22024¥1,220

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-30140iLS120,MS12#,YS120..SED¥3,090198308-198708

main77201-30160iMS123198509-198708

main77201-91706iMS122..WG¥9,100198308-198708

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-30130iLS120,MS122,YS120..SED198308-198708

main77017-30140iYS120198308-198509

main77203-91704iMS122..WG198308-198708

77206GGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iLS120,MS122,YS120..HT,SED¥330198308-198708

main83361-20030iMS122..WG¥320198308-198708

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-30040iMS123,125¥4,260198308-198708

main77213-30050iLS120,MS122,YS120..HT,SED¥3,720198308-198708

main77213-91704iMS122..WG¥14,000198308-198708

77251SHIELD, FUEL TANK, INLET, NO.1

main77291-12010iLS120,MS12#,YS120¥310198308-198708

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77051-30050-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub77051-30050¥1,430

main77051-30050-04iMS122..SED198308-198708

BLUE,BLUE,TRIM8#

sub77051-30050¥1,430

main77051-30050-05iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

sub77051-30050¥1,430

main77051-30050-06iLS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC)198509-198708

BROWN

sub77051-30050¥1,430

main77051-30050-12iMS12#..ROY,SAL198509-198708

MAROON

sub77051-30050¥1,430

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-30110iLS120,MS12#,YS120..SED¥4,690198308-198708

main77350-30120iMS122..HT¥3,330198509-198708

main77350-91703iMS122..WG¥3,870198308-198708

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08003iLS120,MS12#,YS120¥90198308-198708

main90541-08011iLS120,MS12#,YS120¥160198407-198606

sub90541-08003¥90

77315HOSE, FUEL FILLER OPENING

main90446-09011iLS120,MS12#,YS120..HT,SED¥270198308-198708

L=590

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iLS120,MS12#,YS120¥260198308-198708

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-24010iLS120,MS12#,YS120¥930198308-198708

77611BAND, FUEL TANK

main77601-30080iMS123,125198308-198708

main77601-30090iLS120,MS122,YS120..SED198308-198708

main77602-91702iMS122..WG198308-198708

77652CUSHION, FUEL TANK, NO.1

main77651-30060iMS123¥400198308-198708

sub77651-30070¥390

main77651-30070iMS123,125¥390198309-198708

77653SHIELD, FUEL TANK DRAIN PLUG

main77292-30020iLS120,MS12#,YS120..HT,SED¥470198308-198708

main77392-30010iYS120198509-198708

77658MOULDING, FUEL TANK EDGE

main77658-30030iLS120,MS12#,YS120..HT,SED¥340198308-198708

77691SHEET, FUEL TANK SILENCER, UPPER NO.1

main77691-30020iLS120,MS122,YS120..HT,SED198308-198708

77692SHEET, FUEL TANK SILENCER, LOWER NO.1

main77692-30020iLS120,MS122,YS120..HT,SED198308-198708

77693SHEET, FUEL TANK SILENCER, UPPER NO.2

main77693-30020iLS120,MS122,YS120..HT,SED198308-198708

77694SHEET, FUEL TANK SILENCER, LOWER NO.2

main77694-30020iLS120,MS122,YS120..HT,SED¥2,050198308-198708

77695SHEET, FUEL TANK SILENCER, UPPER NO.3

main77695-30020iLS120,MS122,YS120..HT,SED198308-198708

77696SHEET, FUEL TANK SILENCER, LOWER NO.3

main77696-30020iLS120,MS122,YS120..HT,SED198308-198708

9011908019

main90119-08019¥230

9015950004

main90159-50004¥120

9015950064

main90159-50064¥120

9017905020

main90179-05020¥140

9017910033

main90179-10033¥130

9018305005

main90183-05005¥140

9046063009

main90460-63009¥400

9048026019

main90480-26019¥190

9165160820

main91651-60820¥130

9166140620

main91661-40620¥80

9356755016

main93567-55016¥110

9611210240

main96112-10240¥200

42 parts on this diagram · 12 diagrams in section
