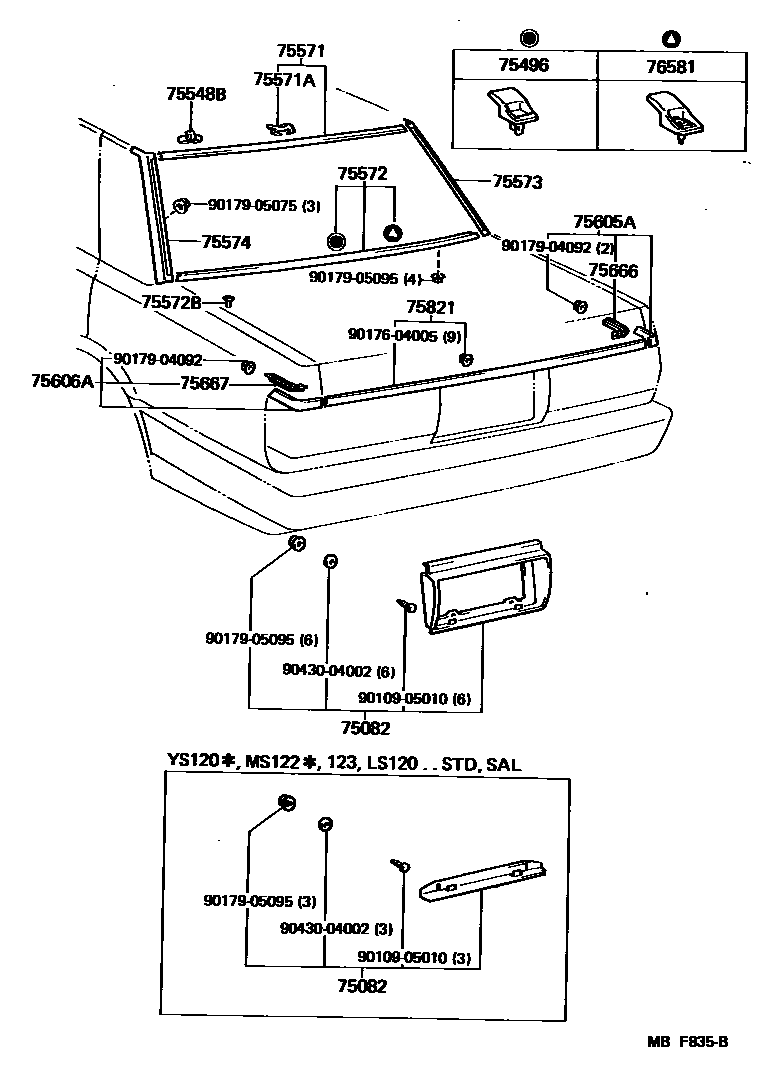

REAR MOULDING

0001 1 0002 1 0003 1 0004 1

75082PANEL SUB-ASSY, LOWER BACK FINISH, CENTER

main75082-30101iMS123,125..SED198509-198708

main75082-30111iMS122,125..HT198509-198708

main75082-39135iMS123,125..ROY198308-198509

main75831-39015iLS120,YS120..SAL198308-198708

main75831-39015iMS123..RHD..4FC..GEN198308-198408

MALAYSIA SPEC

main75831-39025iLS120,YS120..STD198308-198708

75496CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1

main75496-30020iLS120,MS12#,YS120..SED198308-198708

main75496-91701iMS122..WG198308-198708

75548BFASTENER, BACK WINDOW OUTSIDE MOULDING

main75548-22060iLS120,MS12#,YS120..HT,SED198308-198708

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-30180iLS120,MS12#,YS120..SED198308-198708

main75571-30190iMS122,125..HT198509-198708

75571ACLIP(FOR BACK WINDOW MOULDING SET)

main75546-30030iMS122,125..HT198509-198708

main75546-32010iLS120,MS12#,YS120..SED198308-198708

75572MOULDING, BACK WINDOW, LOWER

main75081-30010iMS122,125..HT198509-198708

CTR

main75507-30130iLS120,MS12#,YS120..SED198308-198708

main75507-30150iMS122,125..HT198509-198708

RH

main75508-30010iMS122,125..HT198509-198708

LH

main75575-91705iMS122..WG198308-198708

75572BCLIP(FOR BACK WINDOW MOULDING SET)

main67772-20021iLS120,MS12#,YS120..SED,WG198308-198708

75573MOULDING, BACK WINDOW SIDE, RH

main75501-39045iMS122..WG198308-198708

main75573-30190iLS120,MS122,YS120..DLX,STD198308-198708

main75573-30200iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

75574MOULDING, BACK WINDOW SIDE, LH

main75502-39125iMS122..WG198308-198708

main75574-30190iLS120,MS122,YS120..DLX,STD198308-198708

main75574-30200iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

75605AMOULDING SUB-ASSY, QUARTER OUTSIDE, RH

main75605-30120iLS120,MS122,YS120..SED198509-198708

W/*LPL=LOWER LIGHTING

main75605-39035-03iLS120,MS12#,YS120..SED..(ROY,SAL)..(ARL,GEN,SAA)198308-198509

SILVER-M,GRAY

main75605-39035-08iLS120,MS12#,YS120..SED..(ROY,SAL)..(ARL,GEN,SAA)198308-198509

PEARL-M,IVORY

main75605-39045iMS123..SAL;LS120,YS120..STD198308-198509

75606AMOULDING SUB-ASSY, QUARTER OUTSIDE, LH

main75606-30120iLS120,MS122,YS120..SED198509-198708

W/*LPL=LOWER LIGHTING

main75606-39035-03iLS120,MS12#,YS120..SED..(ROY,SAL)..(ARL,GEN,SAA)198308-198509

SILVER-M,GRAY

main75606-39035-08iLS120,MS12#,YS120..SED..(ROY,SAL)..(ARL,GEN,SAA)198308-198509

PEARL-M,IVORY

main75606-39045iMS123..SAL;LS120,YS120..STD198308-198509

75666COVER, QUARTER PANEL BACK MOULDING END, NO.1

main75666-30020iMS123..SAL;LS120,YS120..STD198501-198509

main75666-30020iLS120,MS122,YS120..SED198509-198708

W/*LPL=LOWER LIGHTING

main75666-30030iLS120,MS12#,YS120..SED..(ROY,SAL)..(ARL,GEN,SAA)198501-198509

75667COVER, QUARTER PANEL BACK MOULDING END, NO.2

main75667-30010iLS120,MS122,YS120..SED198509-198708

W/*LPL=LOWER LIGHTING

main75667-30010iMS123..SAL;LS120,YS120..STD198501-198509

main75667-30020iLS120,MS12#,YS120..SED..(ROY,SAL)..(ARL,GEN,SAA)198501-198509

75821MOULDING, LUGGAGE COMPARTMENT DOOR BACK

main75801-30110iLS120,MS12#,YS120..SED198509-198708

main75801-39065-03iLS120,MS12#,YS120..SED..(ROY,SAL)..(ARL,GEN,SAA)198308-198509

SILVER-M,GRAY

main75801-39065-08iLS120,MS12#,YS120..SED..(ROY,SAL)..(ARL,GEN,SAA)198308-198509

PEARL-M,IVORY

main75801-39075iMS123..SAL;LS120,YS120..STD198308-198509

main75813-30070iMS122,125..HT198509-198708

76581RETAINER, BACK WINDOW OUTSIDE MOULDING

main76581-30030iLS120,MS12#,YS120..SED198308-198708

9010905010

main90109-05010

9017604005

main90176-04005

9017904092

main90179-04092

9017905075

main90179-05075

9017905095

main90179-05095

9043004002

main90430-04002

21 parts on this diagram · 4 diagrams in section
