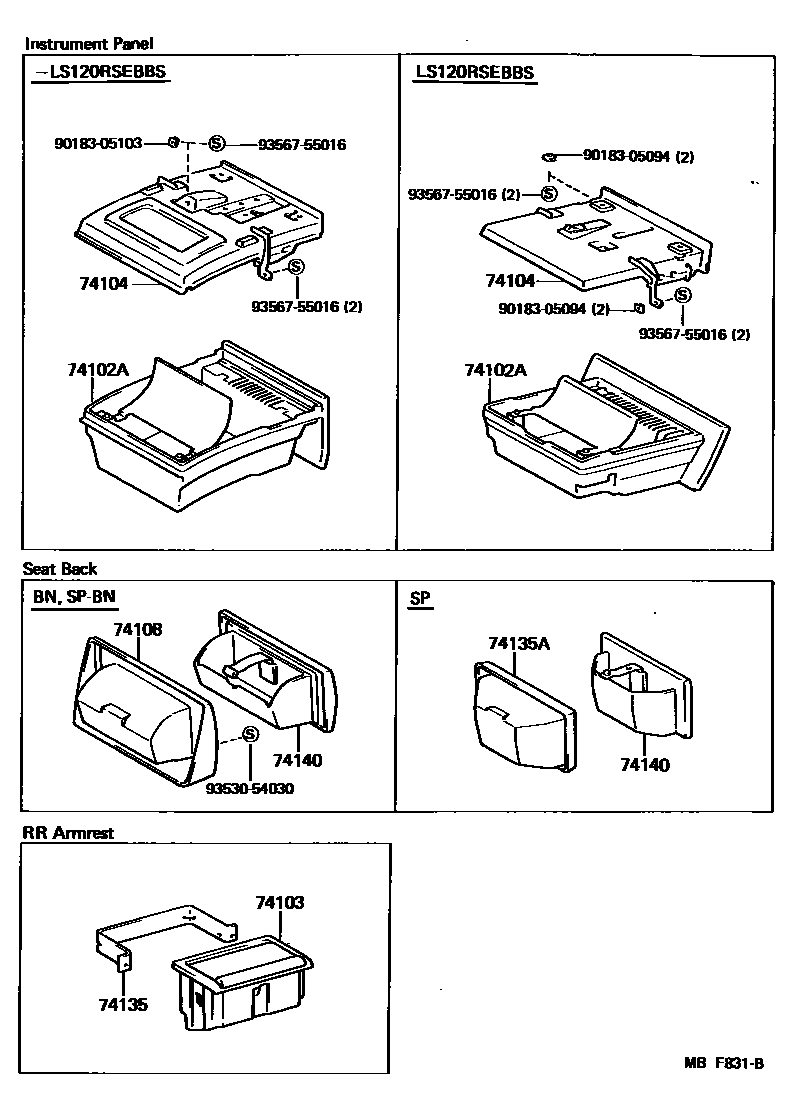

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-30080-04iLS120..RHD..4H198308-198708

BLUE,BLUE,TRIM8#

sub74102-30080

main74102-30090-02iLS120,MS12#..RHD..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub74102-30090

main74102-30090-04iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198708

BLUE,BLUE,TRIM8#

sub74102-30090

main74102-30090-05iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198509

BEIGE,BEIGE,TRIM4#

sub74102-30090

main74102-30090-06iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198509-198708

BROWN,BROWN,TRIM4#

sub74102-30090

main74102-30090-12iMS12#..RHD198509-198708

MAROON,MAROON,TRIM3#

sub74102-30090

main74102-30100iLS120,MS12#,YS120..LHD198308-198708

74103RECEPTACLE SUB-ASSY, ASH, NO.1

main74130-30150-02iLS120,MS12#,YS120..ROY,SAL198308-198509

RH,DEEP MAROON,RED/MAROON,TRIM3#

sub74130-30150

main74130-30150-04iMS122..DLX198308-198708

RH,BLUE,BLUE,TRIM8#

sub74130-30150

main74130-30150-04iMS12#..ROY,SAL198509-198708

RH,*PW,BLUE,BLUE,TRIM8#

sub74130-30150

main74130-30150-05iLS120,MS12#,YS120..ROY,SAL198308-198509

RH,BEIGE,BEIGE,TRIM4#

sub74130-30150

main74130-30150-06iMS122..DLX198509-198708

RH,BROWN,BROWN,TRIM4#

sub74130-30150

main74130-30150-06iMS123,125..SED;MS122..(HT,SED)..(ROY,SAL)198509-198708

RH,*PW,BROWN,BROWN,TRIM4#

sub74130-30150

main74130-30150-12iMS12#..ROY,SAL198509-198708

RH,MAROON,MAROON,TRIM3#

sub74130-30150

main74140-30040-02iLS120,MS122,YS120..ROY,SAL198308-198509

LH,DEEP MAROON,RED/MAROON,TRIM3#

sub74140-30040

main74140-30040-04iMS12#..ROY,SAL198308-198708

LH,BLUE,BLUE,TRIM8#

sub74140-30040

main74140-30040-04iMS122..DLX198509-198708

LH,*PW,BLUE,BLUE,TRIM8#

sub74140-30040

main74140-30040-05iLS120,MS122,YS120..ROY,SAL198308-198509

LH,BEIGE,BEIGE,TRIM4#

sub74140-30040

main74140-30040-06iMS122..DLX198509-198708

LH,BROWN,BROWN,TRIM4#

sub74140-30040

main74140-30040-06iMS123,125..SED;MS122..(HT,SED)..(ROY,SAL)198509-198708

LH,*PW,BROWN,BROWN,TRIM4#

sub74140-30040

main74140-30040-12iMS12#..ROY,SAL198509-198708

LH,MAROON,MAROON,TRIM3#

sub74140-30040

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-30150iLS120..RHD..4H198308-198708

main74104-30160iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198708

main74104-30170iLS120,MS12#,YS120..LHD198308-198708

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-20050-04iLS120,YS120..4H198308-198708

BLUE,BLUE,TRIM8#

sub74108-20050

main74108-20050-05iLS120,YS120..LHD..4H198308-198509

BEIGE,BEIGE,TRIM4#

sub74108-20050

main74108-20050-06iLS120,YS120..LHD..4H198509-198708

BROWN,BROWN,TRIM4#

sub74108-20050

74135BRACKET, REAR ASH RECEPTACLE

main74135-30080iLS120,MS12#,YS120..ROY,SAL198308-198708

main74135-30080iMS122..DLX198509-198708

W/*PW

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-30100-04iLS120,YS120..4F198308-198708

BLUE,BLUE,TRIM8#

sub74135-30100

main74135-30100-04iMS122..DLX..GEN198509-198708

W/O *PW,BLUE,BLUE,TRIM8#

sub74135-30100

main74135-30100-05iLS120,YS120..4F198308-198509

BEIGE,BEIGE,TRIM4#

sub74135-30100

main74135-30100-06iLS120,YS120..4F198509-198708

W/O *PW,BROWN,SEPIA BROWN,TRIM4#

sub74135-30100

main74135-30100-06iLS120,YS120..4F198509-198708

BROWN,SEPIA BROWN,TRIM4#

sub74135-30100

74140RECEPTACLE ASSY, ASH(FOR SEAT)

main74109-30090-04iLS120,YS120..4H198308-198708

BN,SP-BN,BLUE,BLUE,TRIM8#

sub74109-30091

sub74109-30090

main74109-30090-05iLS120,YS120..LHD..4H198308-198509

BN,SP-BN,BEIGE,BEIGE,TRIM4#

sub74109-30091

sub74109-30090

main74109-30090-06iLS120,YS120..LHD..4H198509-198708

SP-BN,BROWN,BROWN,TRIM4#

sub74109-30091

sub74109-30090

main74130-22050-05iLS120,YS120..4F198308-198509

SP,BEIGE,BEIGE,TRIM4#

sub74130-22050

main74130-22050-14iLS120,YS120..4F198308-198708

SP,BLUE,BLUE,TRIM8#

sub74130-22050

main74130-22050-14iMS122..DLX..GEN198509-198708

W/O *PW,BLUE,BLUE,TRIM8#

sub74130-22050

main74130-22050-16iLS120,YS120..4F198509-198708

W/O *PW,BROWN,BROWN,TRIM4#

sub74130-22050

main74130-22050-16iMS122..DLX..GEN198509-198708

BROWN,BROWN,TRIM4#

sub74130-22050

9018305094

main90183-05094

9018305103

main90183-05103

9353054030

main93530-54030

9356755016

main93567-55016

11 parts on this diagram · 1 diagram in section
