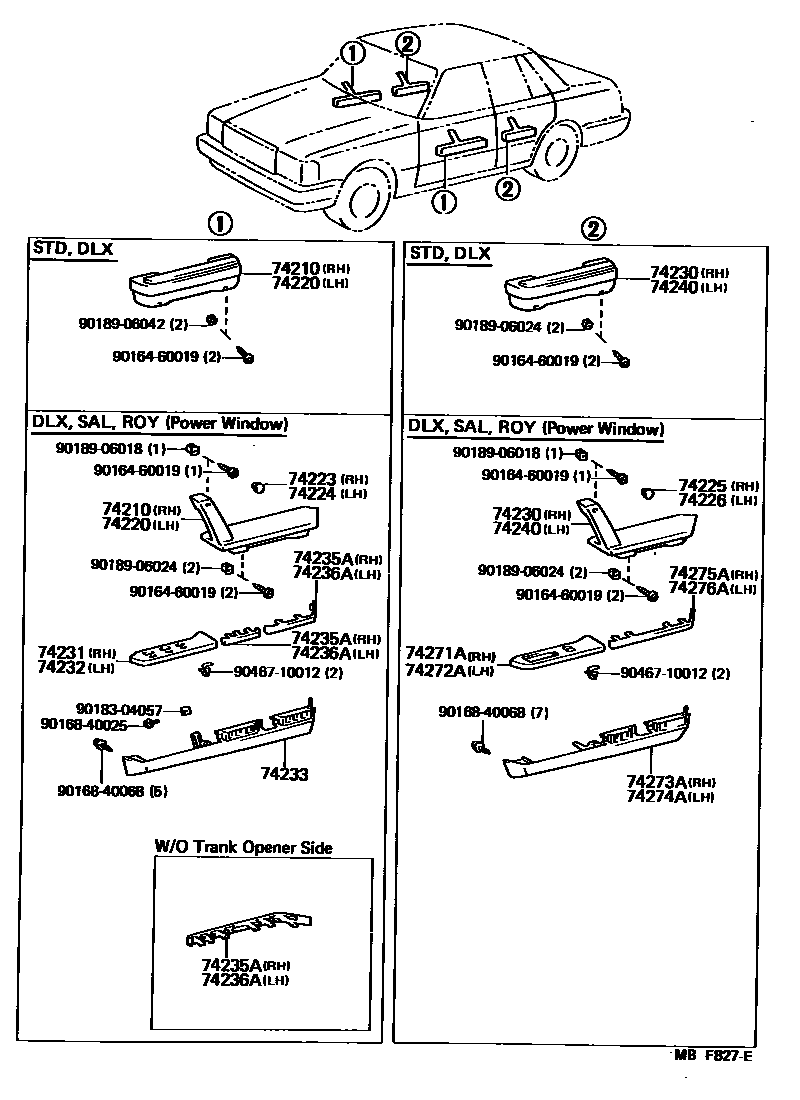

ARMREST & VISOR

0001 1 0002 1 0003 1

74210ARMREST ASSY, FRONT, RH

main74210-30080-14iLS120,MS122,YS120..(DLX,STD)..GEN198509-198708

W/O*PW,BLUE,BLUE,TRIM8#

main74210-30080-16iLS120..4F;LS120..LHD;MS122,YS120..(DLX,STD)..GEN198509-198708

W/O *PW,BROWN,BROWN,TRIM4#

main74210-30080-35iLS120..4F;YS120..STD;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main74210-30150-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74210-30150-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BLUE,BLUE,TRIM8#

main74210-30150-05iLS120,MS12#,YS120..ROY,SAL198308-198509

BEIGE,BEIGE,TRIM4#

main74210-30151-02iMS12#..(SED,WG)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main74210-30151-04iMS12#..(SED,WG)..(ROY,SAL)198509-198708

W/*PW,BLUE,BLUE,TRIM8#

main74210-30151-06iMS122..DLX198509-198708

W/*PW,BROWN,BROWN,TRIM4#

main74210-30161-02iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

main74210-30161-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main74210-30161-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74210-30080-14iLS120,YS120..STD198308-198509

BLUE,BLUE,TRIM8#

main74210-30080-16iLS120..4F;LS120..LHD;MS122,YS120..(DLX,STD)..GEN198509-198708

W/O *PW,BROWN,BROWN,TRIM4#

main74210-30080-35iLS120..4F;YS120..STD;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main74220-30110-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74220-30110-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BLUE,BLUE,TRIM8#

main74220-30110-05iLS120,MS12#,YS120..ROY,SAL198308-198509

BEIGE,BEIGE,TRIM4#

main74220-30111-02iMS12#..(SED,WG)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main74220-30111-04iMS12#..(SED,WG)..(ROY,SAL)198509-198708

W/*PW,BLUE,BLUE,TRIM8#

main74220-30111-06iMS122..DLX198509-198708

W/*PW,BROWN,BROWN,TRIM4#

main74220-30121-02iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

main74220-30121-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main74220-30121-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

74223CAP, DOOR ARMREST, RH

main74266-30020-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74266-30020-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BLUE,BLUE,TRIM8#

main74266-30020-05iLS120,MS12#,YS120..ROY,SAL198308-198509

BEIGE,BEIGE,TRIM4#

main74266-30021-02iMS12#..ROY,SAL198509-198708

MAROON,MAROON,TRIM3#

main74266-30021-04iMS12#..ROY,SAL198509-198708

W/*PW,BLUE,BLUE,TRIM8#

main74266-30021-06iMS123,125..SED;MS122..(HT,SED)..(ROY,SAL)198509-198708

W/*PW,BROWN,BROWN,TRIM4#

74224CAP, DOOR ARMREST, LH

main74266-30020-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74266-30020-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BLUE,BLUE,TRIM8#

main74266-30020-05iLS120,MS12#,YS120..ROY,SAL198308-198509

BEIGE,BEIGE,TRIM4#

main74266-30021-02iMS12#..ROY,SAL198509-198708

MAROON,MAROON,TRIM3#

main74266-30021-04iMS12#..ROY,SAL198509-198708

W/*PW,BLUE,BLUE,TRIM8#

main74266-30021-06iMS123,125..SED;MS122..(HT,SED)..(ROY,SAL)198509-198708

W/*PW,BROWN,BROWN,TRIM4#

74225CAP, DOOR ARMREST, REAR RH

main74266-30020-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74266-30020-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BLUE,BLUE,TRIM8#

main74266-30020-05iLS120,MS12#,YS120..ROY,SAL198308-198509

BEIGE,BEIGE,TRIM4#

main74266-30021-02iMS12#..ROY,SAL198509-198708

MAROON,MAROON,TRIM3#

main74266-30021-04iMS12#..ROY,SAL198509-198708

W/*PW,BLUE,BLUE,TRIM8#

main74266-30021-06iMS123,125..SED;MS122..(HT,SED)..(ROY,SAL)198509-198708

W/*PW,BROWN,BROWN,TRIM4#

74226CAP, DOOR ARMREST, REAR LH

main74266-30020-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74266-30020-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BLUE,BLUE,TRIM8#

main74266-30020-05iLS120,MS12#,YS120..ROY,SAL198308-198509

BEIGE,BEIGE,TRIM4#

main74266-30021-02iMS12#..ROY,SAL198509-198708

MAROON,MAROON,TRIM3#

main74266-30021-04iMS12#..ROY,SAL198509-198708

W/*PW,BLUE,BLUE,TRIM8#

main74266-30021-06iMS123,125..SED;MS122..(HT,SED)..(ROY,SAL)198509-198708

W/*PW,BROWN,BROWN,TRIM4#

74230ARMREST ASSY, REAR, RH

main74210-30080-14iLS120,MS122,YS120..(DLX,STD)..GEN198509-198708

W/O *PW,BLUE,BLUE,TRIM8#

main74210-30080-16iLS120..4F;LS120..LHD;MS122,YS120..(DLX,STD)..GEN198509-198708

W/O *PW,BROWN,BROWN,TRIM4#

main74210-30080-35iLS120..4F;YS120..STD;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main74210-30161-02iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

main74210-30161-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main74210-30161-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

main74250-30050-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74250-30050-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BLUE,BLUE,TRIM8#

main74250-30050-05iLS120,MS12#,YS120..ROY,SAL198308-198509

BEIGE,BEIGE,TRIM4#

main74250-30051-02iMS12#..(SED,WG)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main74250-30051-04iMS12#..(SED,WG)..(ROY,SAL)198509-198708

W/*PW,BLUE,BLUE,TRIM8#

main74250-30051-06iMS122..DLX198509-198708

W/*PW,BROWN,BROWN,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74201-30040-02iLS120,MS12#..RHD..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74201-30040-04iLS120,MS12#..RHD..(ROY,SAL)198308-198509

BLUE,BLUE,TRIM8#

main74201-30040-05iLS120,MS12#..RHD..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main74201-30050-02iLS120,MS12#,YS120..LHD..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74201-30050-04iLS120,MS12#,YS120..SED..LHD..(ROY,SAL)198308-198509

BLUE,BLUE,TRIM8#

main74201-30050-05iLS120,MS12#,YS120..LHD..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main74231-30111-02iMS12#..RHD198509-198708

MAROON,MAROON,TRIM3#

main74231-30111-04iMS12#..RHD198509-198708

BLUE,BLUE,TRIM8#

main74231-30111-06iMS12#..RHD198509-198708

BROWN,BROWN,TRIM4#

main74231-30121-02iMS122,125..(SED,WG)..LHD..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main74231-30121-04iMS122..DLX198509-198708

W/*PW,BLUE,BLUE,TRIM8#

main74231-30121-06iMS122,125..SED..LHD..(ROY,SAL)198509-198708

W/*PW,BROWN,BROWN,TRIM4#

main74231-30140-02iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

main74231-30140-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main74231-30140-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74202-30040-02iLS120,MS12#..RHD..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74202-30040-04iLS120,MS12#..RHD..(ROY,SAL)198308-198509

BLUE,BLUE,TRIM8#

main74202-30040-05iLS120,MS12#..RHD..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main74202-30050-02iLS120,MS12#,YS120..LHD..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74202-30050-04iLS120,MS12#,YS120..SED..LHD..(ROY,SAL)198308-198509

BLUE,BLUE,TRIM8#

main74202-30050-05iLS120,MS12#,YS120..LHD..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main74232-30111-02iMS12#..RHD198509-198708

MAROON,MAROON,TRIM3#

main74232-30111-04iMS12#..RHD198509-198708

BLUE,BLUE,TRIM8#

main74232-30111-06iMS12#..RHD198509-198708

BROWN,BROWN,TRIM4#

main74232-30121-02iMS122,125..(SED,WG)..LHD..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main74232-30121-04iMS122..DLX198509-198708

W/*PW,BLUE,BLUE,TRIM8#

main74232-30121-06iMS122,125..SED..LHD..(ROY,SAL)198509-198708

W/*PW,BROWN,BROWN,TRIM4#

main74232-30140-02iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

main74232-30140-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main74232-30140-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

74233PANEL, FRONT ARMREST BASE, LOWER

main74233-30030-02iLS120,MS122,123,YS120..SAL198308-198509

RH,DEEP MAROON,RED/MAROON,TRIM3#

main74233-30030-04iMS122..DLX198509-198708

RH,W/*PW,BLUE,BLUE,TRIM8#

main74233-30030-05iLS120,MS122,123,YS120..SAL198308-198509

RH,BEIGE,BEIGE,TRIM4#

main74233-30030-06iMS122..SED..SAL198509-198708

RH,W/*PW,BROWN,BROWN,TRIM4#

main74233-30030-12iMS122..(SED,WG)..SAL198509-198708

RH,MAROON,MAROON,TRIM3#

main74233-30040-02iMS12#..ROY198308-198509

RH,DEEP MAROON,RED/MAROON,TRIM3#

main74233-30040-04iMS12#..ROY198308-198509

RH,BLUE,BLUE,TRIM8#

main74233-30040-05iMS12#..ROY198308-198509

RH,BEIGE,BEIGE,TRIM4#

main74233-30040-06iMS12#..SED..ROY198509-198708

RH,BROWN,BROWN,TRIM4#

main74233-30040-12iMS12#..SED..ROY198509-198708

RH,MAROON,MAROON,TRIM3#

main74233-30050-04iMS122..HT198509-198708

RH,BLUE,BLUE,TRIM8#

main74233-30050-06iMS122..HT198509-198708

RH,BROWN,BROWN,TRIM4#

main74233-30050-12iMS122..HT198509-198708

RH,MAROON,MAROON,TRIM3#

main74233-30060-04iMS125..HT198509-198708

RH,BLUE,BLUE,TRIM8#

main74233-30060-12iMS125..HT198509-198708

RH,MAROON,MAROON,TRIM3#

main74234-30030-02iLS120,MS122,123,YS120..SAL198308-198509

LH,DEEP MAROON,RED/MAROON,TRIM3#

main74234-30030-04iMS122..DLX198509-198708

LH,W/*PW,BLUE,BLUE,TRIM8#

main74234-30030-05iLS120,MS122,123,YS120..SAL198308-198509

LH,BEIGE,BEIGE,TRIM4#

main74234-30030-06iMS122..SED..SAL198509-198708

LH,W/*PW,BROWN,BROWN,TRIM4#

main74234-30030-12iMS122..(SED,WG)..SAL198509-198708

LH,MAROON,MAROON,TRIM3#

main74234-30040-02iMS12#..ROY198308-198509

LH,DEEP MAROON,RED/MAROON,TRIM3#

main74234-30040-04iMS12#..SED..ROY198509-198708

LH,BLUE,BLUE,TRIM8#

main74234-30040-05iMS12#..ROY198308-198509

LH,BEIGE,BEIGE,TRIM4#

main74234-30040-06iMS12#..SED..ROY198509-198708

LH,BROWN,BROWN,TRIM4#

main74234-30040-12iMS12#..SED..ROY198509-198708

LH,MAROON,MAROON,TRIM3#

main74234-30051-02iMS122..HT198509-198708

LH,MAROON,MAROON,TRIM3#

main74234-30051-04iMS122..HT198509-198708

LH,BLUE,BLUE,TRIM8#

main74234-30051-06iMS122..HT198509-198708

LH,BROWN,BROWN,TRIM4#

main74234-30061-02iMS125..HT198509-198708

LH,MAROON,MAROON,TRIM3#

main74234-30061-04iMS125..HT198509-198708

LH,BLUE,BLUE,TRIM8#

74235APLATE, FRONT DOOR ARMREST BASE FINISH, RH

main74223-30030-02iLS120,MS12#..RHD..(ROY,SAL)198308-198509

RR,DEEP MAROON,RED/MAROON,TRIM3#

main74223-30030-04iMS12#..RHD198509-198708

RR,BLUE,BLUE,TRIM8#

main74223-30030-05iLS120,MS12#..RHD..(ROY,SAL)198308-198509

RR,BEIGE,BEIGE,TRIM4#

main74223-30030-06iMS12#..RHD198509-198708

RR,BROWN,BROWN,TRIM4#

main74223-30030-12iMS12#..RHD198509-198708

RR,MAROON,MAROON,TRIM3#

main74235-30050-02iLS120,MS12#..RHD..(ROY,SAL)198308-198509

FR,DEEP MAROON,RED/MAROON,TRIM3#

main74235-30050-04iMS12#..RHD198509-198708

FR,BLUE,BLUE,TRIM8#

main74235-30050-05iLS120,MS12#..RHD..(ROY,SAL)198308-198509

FR,BEIGE,BEIGE,TRIM4#

main74235-30050-06iMS12#..RHD198509-198708

FR,BROWN,BROWN,TRIM4#

main74235-30050-12iMS12#..RHD198509-198708

FR,MAROON,MAROON,TRIM3#

main74236-30050-02iLS120,MS12#,YS120..LHD..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74236-30050-04iLS120,MS12#,YS120..SED..LHD..(ROY,SAL)198308-198509

BLUE,BLUE,TRIM8#

main74236-30050-05iLS120,MS12#,YS120..LHD..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main74236-30050-06iMS122,125..SED..LHD..(ROY,SAL)198509-198708

W/*PW,BROWN,BROWN,TRIM4#

main74236-30050-12iMS122,125..(SED,WG)..LHD..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main74236-30070-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main74236-30070-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

main74236-30070-12iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

74236APLATE, FRONT DOOR ARMREST BASE FINISH, LH

main74223-30030-02iLS120,MS12#,YS120..SED..LHD..(ROY,SAL)198308-198509

RR,DEEP MAROON,RED/MAROON,TRIM3#

main74223-30030-04iLS120,MS12#,YS120..SED..LHD..(ROY,SAL)198308-198509

RR,BLUE,BLUE,TRIM8#

main74223-30030-05iLS120,MS12#,YS120..SED..LHD..(ROY,SAL)198308-198509

RR,BEIGE,BEIGE,TRIM4#

main74223-30030-06iMS122,125..SED..LHD..(ROY,SAL)198509-198708

RR,W/*PW,BROWN,BROWN,TRIM4#

main74223-30030-12iMS122,125..SED..LHD..(ROY,SAL)198509-198708

RR,MAROON,MAROON,TRIM3#

main74223-30040-04iMS122,125..HT198509-198708

FR,BLUE,BLUE,TRIM8#

main74223-30040-06iMS122..HT198509-198708

FR,BROWN,BROWN,TRIM4#

main74223-30040-12iMS122,125..HT198509-198708

FR,MAROON,MAROON,TRIM3#

main74235-30050-02iLS120,MS12#,YS120..SED..LHD..(ROY,SAL)198308-198509

FR,DEEP MAROON,RED/MAROON,TRIM3#

main74235-30050-04iMS122,125..SED..LHD..(ROY,SAL)198509-198708

FR,BLUE,BLUE,TRIM8#

main74235-30050-05iLS120,MS12#,YS120..SED..LHD..(ROY,SAL)198308-198509

FR,BEIGE,BEIGE,TRIM4#

main74235-30050-06iMS122,125..SED..LHD..(ROY,SAL)198509-198708

RR,W/*PW,BROWN,BROWN,TRIM4#

main74235-30050-12iMS122,125..SED..LHD..(ROY,SAL)198509-198708

FR,MAROON,MAROON,TRIM3#

main74235-30070-04iMS122,125..HT198509-198708

RR,BLUE,BLUE,TRIM8#

main74235-30070-06iMS122..HT198509-198708

RR,BROWN,BROWN,TRIM4#

main74235-30070-12iMS122,125..HT198509-198708

RR,MAROON,MAROON,TRIM3#

main74236-30050-02iMS122..WG198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74236-30050-04iMS12#..RHD198509-198708

BLUE,BLUE,TRIM8#

main74236-30050-05iMS122..WG198308-198509

BEIGE,BEIGE,TRIM4#

main74236-30050-06iMS12#..RHD198509-198708

BROWN,BROWN,TRIM4#

main74236-30050-12iMS12#..RHD198509-198708

MAROON,MAROON,TRIM3#

74240ARMREST ASSY, REAR, LH

main74210-30080-14iLS120,YS120..STD198308-198509

BLUE,BLUE,TRIM8#

main74210-30080-16iLS120..4F;LS120..LHD;MS122,YS120..(DLX,STD)..GEN198509-198708

W/O *PW,BROWN,BROWN,TRIM4#

main74210-30080-35iLS120..4F;YS120..STD;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main74220-30121-02iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

main74220-30121-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main74220-30121-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

main74260-30050-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74260-30050-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BLUE,BLUE,TRIM8#

main74260-30050-05iLS120,MS12#,YS120..ROY,SAL198308-198509

BEIGE,BEIGE,TRIM4#

main74260-30051-02iMS12#..(SED,WG)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main74260-30051-04iMS12#..(SED,WG)..(ROY,SAL)198509-198708

W/*PW,BLUE,BLUE,TRIM8#

main74260-30051-06iMS122..DLX198509-198708

W/*PW,BROWN,BROWN,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74203-30030-02iLS120,MS12#,YS120..ROY,SAL198308-198509

W/O RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main74203-30030-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

W/O RR SLIDE SEAT,BLUE,BLUE,TRIM8#

main74203-30030-05iLS120,MS12#,YS120..ROY,SAL198308-198509

W/O RR SLIDE SEAT,BEIGE,BEIGE,TRIM4#

main74203-30040-02iMS12#..ROY..(GEN,SAA)198308-198509

W/RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main74203-30040-04iMS12#..ROY..(GEN,SAA)198308-198509

W/RR SLIDE SEAT,BLUE,BLUE,TRIM8#

main74203-30040-05iMS12#..ROY..(GEN,SAA)198308-198509

W/RR SLIDE SEAT,BEIGE,BEIGE,TRIM4#

main74271-30071-02iMS125..SED..4FC;MS122,123..(SED,WG)..(ROY,SAL)198509-198708

W/O RR SLIDE SEAT,MAROON,MAROON,TRIM3#

main74271-30071-04iMS125..SED..4FC;MS122,123..(SED,WG)..(ROY,SAL)198509-198708

W/O RR SLIDE SEAT,BLUE,BLUE,TRIM8#

main74271-30071-06iMS125..SED..4FC;MS122,123..SED..(ROY,SAL)198509-198708

W/O RR SLIDE SEAT,BROWN,BROWN,TRIM4#

main74271-30081-02iMS122,125..SED..ROY198509-198708

W/RR SLIDE SEAT,MAROON,MAROON,TRIM3#

main74271-30081-04iMS122,125..SED..ROY198509-198708

W/RR SLIDE SEAT,BLUE,BLUE,TRIM8#

main74271-30081-06iMS122,125..SED..ROY198509-198708

W/RR SLIDE SEAT,BROWN,BROWN,TRIM4#

main74271-30091-02iMS122,125..HT198509-198708

W/O RR SLIDE SEAT,MAROON,MAROON,TRIM3#

main74271-30091-04iMS122,125..HT198509-198708

W/O RR SLIDE SEAT,BLUE,BLUE,TRIM8#

main74271-30091-06iMS122..HT198509-198708

W/O RR SLIDE SEAT,BROWN,BROWN,TRIM4#

main74271-30101-02iMS125..HT198509-198708

W/RR SLIDE SEAT,MAROON,MAROON,TRIM3#

main74271-30101-04iMS125..HT198509-198708

W/RR SLIDE SEAT,BLUE,BLUE,TRIM8#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74204-30030-02iLS120,MS12#,YS120..ROY,SAL198308-198509

W/O RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main74204-30030-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

W/O RR SLIDE SEAT,BLUE,BLUE,TRIM8#

main74204-30030-05iLS120,MS12#,YS120..ROY,SAL198308-198509

W/O RR SLIDE SEAT,BEIGE,BEIGE,TRIM4#

main74204-30040-02iMS12#..ROY..(GEN,SAA)198308-198509

W/RR SLIDE SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main74204-30040-04iMS12#..ROY..(GEN,SAA)198308-198509

W/RR SLIDE SEAT,BLUE,BLUE,TRIM8#

main74204-30040-05iMS12#..ROY..(GEN,SAA)198308-198509

W/RR SLIDE SEAT,BEIGE,BEIGE,TRIM4#

main74272-30071-02iMS125..SED..4FC;MS122,123..(SED,WG)..(ROY,SAL)198509-198708

W/O RR SLIDE SEAT,MAROON,MAROON,TRIM3#

main74272-30071-04iMS125..SED..4FC;MS122,123..(SED,WG)..(ROY,SAL)198509-198708

W/O RR SLIDE SEAT,BLUE,BLUE,TRIM8#

main74272-30071-06iMS125..SED..4FC;MS122,123..SED..(ROY,SAL)198509-198708

W/O RR SLIDE SEAT,BROWN,BROWN,TRIM4#

main74272-30081-02iMS122,125..SED..ROY198509-198708

W/RR SLIDE SEAT,MAROON,MAROON,TRIM3#

main74272-30081-04iMS122,125..SED..ROY198509-198708

W/RR SLIDE SEAT,BLUE,BLUE,TRIM8#

main74272-30081-06iMS122,125..SED..ROY198509-198708

W/RR SLIDE SEAT,BROWN,BROWN,TRIM4#

main74272-30091-02iMS122,125..HT198509-198708

W/O RR SLIDE SEAT,MAROON,MAROON,TRIM3#

main74272-30091-04iMS122,125..HT198509-198708

W/O RR SLIDE SEAT,BLUE,BLUE,TRIM8#

main74272-30091-06iMS122..HT198509-198708

W/O RR SLIDE SEAT,BROWN,BROWN,TRIM4#

main74272-30101-02iMS125..HT198509-198708

W/RR SLIDE SEAT,MAROON,MAROON,TRIM3#

main74272-30101-04iMS125..HT198509-198708

W/RR SLIDE SEAT,BLUE,BLUE,TRIM8#

74273APANEL, REAR DOOR ARMREST BASE, LOWER RH

main74273-30020-02iLS120,MS122,123,YS120..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74273-30020-04iMS122..DLX198509-198708

W/*PW,BLUE,BLUE,TRIM8#

main74273-30020-05iLS120,MS122,123,YS120..SAL198308-198509

BEIGE,BEIGE,TRIM4#

main74273-30020-06iMS122..SED..SAL198509-198708

W/*PW,BROWN,BROWN,TRIM4#

main74273-30020-12iMS122..(SED,WG)..SAL198509-198708

MAROON,MAROON,TRIM3#

main74273-30030-02iMS12#..ROY198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74273-30030-04iMS12#..ROY198308-198509

BLUE,BLUE,TRIM8#

main74273-30030-05iMS12#..ROY198308-198509

BEIGE,BEIGE,TRIM4#

main74273-30030-06iMS12#..SED..ROY198509-198708

BROWN,BROWN,TRIM4#

main74273-30030-12iMS12#..SED..ROY198509-198708

MAROON,MAROON,TRIM3#

main74273-30040-04iMS122..HT198509-198708

BLUE,BLUE,TRIM8#

main74273-30040-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

main74273-30040-12iMS122..HT198509-198708

MAROON,MAROON,TRIM3#

main74273-30050-04iMS125..HT198509-198708

BLUE,BLUE,TRIM8#

main74273-30050-12iMS125..HT198509-198708

MAROON,MAROON,TRIM3#

74274APANEL, REAR DOOR ARMREST BASE, LOWER LH

main74274-30020-02iLS120,MS122,123,YS120..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74274-30020-04iLS120,MS122,123,YS120..SED..SAL198308-198509

BLUE,BLUE,TRIM8#

main74274-30020-05iLS120,MS122,123,YS120..SAL198308-198509

BEIGE,BEIGE,TRIM4#

main74274-30020-06iMS122..SED..SAL198509-198708

W/*PW,BROWN,BROWN,TRIM4#

main74274-30020-12iMS122..(SED,WG)..SAL198509-198708

MAROON,MAROON,TRIM3#

main74274-30030-02iMS12#..ROY198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74274-30030-04iMS12#..SED..ROY198509-198708

BLUE,BLUE,TRIM8#

main74274-30030-05iMS12#..ROY198308-198509

BEIGE,BEIGE,TRIM4#

main74274-30030-06iMS12#..SED..ROY198509-198708

BROWN,BROWN,TRIM4#

main74274-30030-12iMS12#..SED..ROY198509-198708

MAROON,MAROON,TRIM3#

main74274-30040-04iMS122..HT198509-198708

BLUE,BLUE,TRIM8#

main74274-30040-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

main74274-30040-12iMS122..HT198509-198708

MAROON,MAROON,TRIM3#

main74274-30050-04iMS125..HT198509-198708

BLUE,BLUE,TRIM8#

main74274-30050-12iMS125..HT198509-198708

MAROON,MAROON,TRIM3#

74275APLATE, REAR DOOR ARMREST BASE FINISH,RH

main74275-30050-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74275-30050-04iMS12#..(SED,WG)..(ROY,SAL)198509-198708

W/*PW,BLUE,BLUE,TRIM8#

main74275-30050-05iLS120,MS12#,YS120..ROY,SAL198308-198509

BEIGE,BEIGE,TRIM4#

main74275-30050-06iMS122..DLX198509-198708

W/*PW,BROWN,BROWN,TRIM4#

main74275-30050-12iMS12#..(SED,WG)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main74275-30090-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main74275-30090-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

main74275-30090-12iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

74276APLATE, REAR DOOR ARMREST BASE FINISH,LH

main74276-30050-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main74276-30050-04iMS12#..(SED,WG)..(ROY,SAL)198509-198708

W/*PW,BLUE,BLUE,TRIM8#

main74276-30050-05iLS120,MS12#,YS120..ROY,SAL198308-198509

BEIGE,BEIGE,TRIM4#

main74276-30050-06iMS122..DLX198509-198708

W/*PW,BROWN,BROWN,TRIM4#

main74276-30050-12iMS12#..(SED,WG)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main74276-30090-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

main74276-30090-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

main74276-30090-12iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

9016460019

main90164-60019

9016840025

main90168-40025

9016840068

main90168-40068

9018304057

main90183-04057

9018906018

main90189-06018

9018906024

main90189-06024

9018906042

main90189-06042

9046710012

main90467-10012

27 parts on this diagram · 3 diagrams in section
