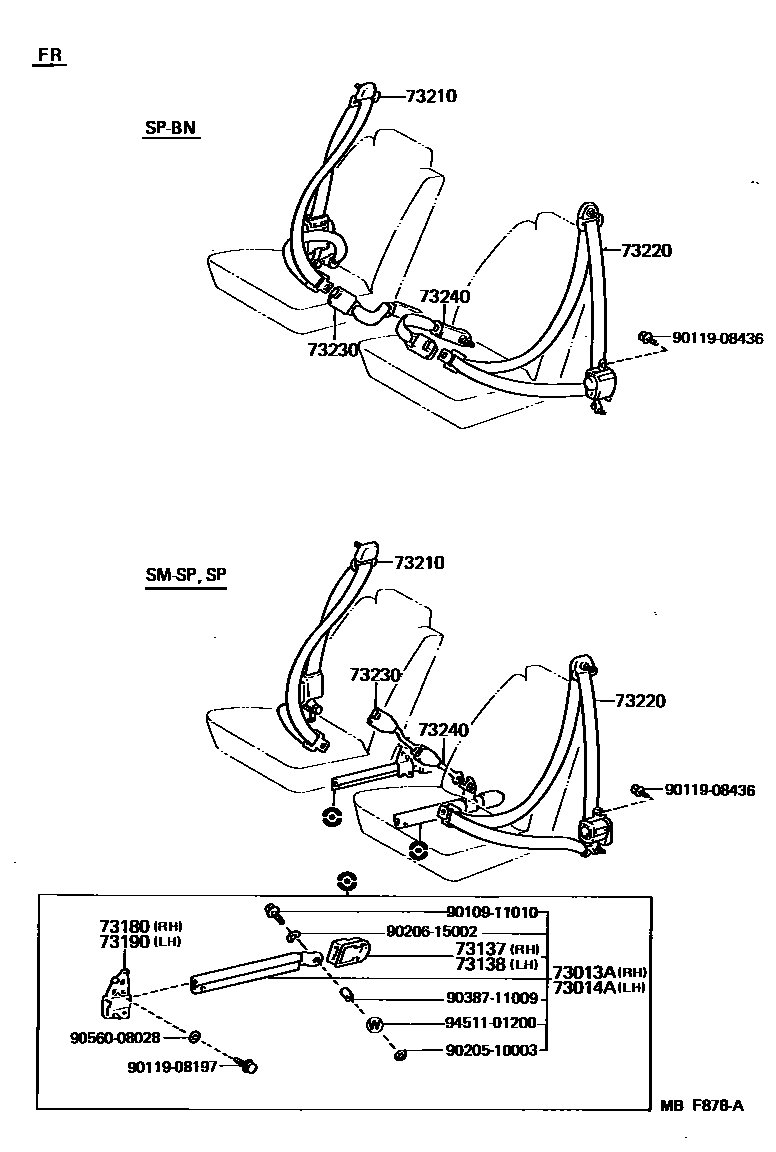

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1

73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH

main73013-30010-02iLS120,MS12#,YS120..4FC,5F198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main73013-30010-04iLS120,MS12#,YS120..SED..(4F,4FC,5F)198308-198509

BLUE,BLUE,TRIM8#

main73013-30010-05iLS120,MS12#,YS120..4F,4FC,5F198308-198509

BEIGE,BEIGE,TRIM4#

main73013-30010-06iMS125..SED..4FC;LS120,MS122,123,YS120..(HT,SED)..(4F,4FC,5F)198509-198708

BROWN,BROWN,TRIM4#

main73013-30010-12iMS12#..(4FC,5F)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main73013-30020-02iMS12#..4H,4HC198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main73013-30020-04iMS12#..SED..(4H,4HC)198308-198708

BLUE,BLUE,TRIM8#

main73013-30020-05iMS12#..4H,4HC198308-198509

BEIGE,BEIGE,TRIM4#

main73013-30020-06iMS122,125..4HC198509-198708

BROWN,BROWN,TRIM4#

main73013-30020-12iMS122,125..4HC198509-198708

MAROON,MAROON,TRIM3#

73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH

main73014-30010-02iLS120,MS12#,YS120..4FC,5F198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main73014-30010-04iLS120,MS12#,YS120..SED..(4F,4FC,5F)198308-198509

BLUE,BLUE,TRIM8#

main73014-30010-05iLS120,MS12#,YS120..4F,4FC,5F198308-198509

BEIGE,BEIGE,TRIM4#

main73014-30010-06iMS125..SED..4FC;LS120,MS122,123,YS120..(HT,SED)..(4F,4FC,5F)198509-198708

BROWN,BROWN,TRIM4#

main73014-30010-12iMS12#..(4FC,5F)..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main73014-30020-02iMS12#..4H,4HC198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main73014-30020-04iMS12#..SED..(4H,4HC)198308-198708

BLUE,BLUE,TRIM8#

main73014-30020-05iMS12#..4H,4HC198308-198509

BEIGE,BEIGE,TRIM4#

main73014-30020-06iMS122,125..4HC198509-198708

BROWN,BROWN,TRIM4#

main73014-30020-12iMS122,125..4HC198509-198708

MAROON,MAROON,TRIM3#

73137CAP, FRONT SEAT BELT INNER ANCHOR, RH

main73137-30020-02iMS12#..4H,4HC198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main73137-30020-04iMS12#..SED..(4H,4HC)198308-198509

BLUE,BLUE,TRIM8#

main73137-30020-05iMS12#..4H,4HC198308-198509

BEIGE,BEIGE,TRIM4#

main73137-30020-06iMS125..SED;LS120,MS122,123,YS120..(HT,SED)..(4F,4FC,4HC,5F)198509-198708

BROWN,BROWN,TRIM4#

main73137-30020-12iMS12#..ROY,SAL198509-198708

MAROON,MAROON,TRIM3#

73138CAP, FRONT SEAT BELT INNER ANCHOR, LH

main73138-30020-02iMS12#..4H,4HC198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main73138-30020-04iMS12#..SED..(4H,4HC)198308-198509

BLUE,BLUE,TRIM8#

main73138-30020-05iMS12#..4H,4HC198308-198509

BEIGE,BEIGE,TRIM4#

main73138-30020-06iMS125..SED;LS120,MS122,123,YS120..(HT,SED)..(4F,4FC,4HC,5F)198509-198708

BROWN,BROWN,TRIM4#

main73138-30020-12iMS12#..ROY,SAL198509-198708

MAROON,MAROON,TRIM3#

73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH

main73011-30020iLS120,MS12#,YS120..4F,4FC,5F198308-198708

main73011-30030iMS12#..4H,4HC198308-198708

73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH

main73012-30020iLS120,MS12#,YS120..4F,4FC,5F198308-198708

main73012-30030iMS12#..4H,4HC198308-198708

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-30310-02iLS120,MS122,YS120..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub73210-30590

main73210-30310-04iLS120,MS122,YS120..SED..(SAL,STD)198308-198509

BLUE,BLUE,TRIM8#

sub73210-30590

main73210-30310-05iYS120;LS120..4F,5F;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

sub73210-30590

main73210-30311-02iMS122..(SED,WG)..SAL198509-198708

MAROON,MAROON,TRIM3#

sub73210-30610

main73210-30311-04iLS120,MS122,YS120..(SED,WG)..(DLX,SAL,STD)198509-198708

BLUE,BLUE,TRIM8#

sub73210-30610

main73210-30311-06iLS120..4F;LS120..LHD;MS122,YS120..SED..(DLX,SAL,STD)198509-198708

BROWN,BROWN,TRIM4#

sub73210-30610

main73210-30320-02iMS12#..ROY..(GEN,SAA)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main73210-30320-04iMS12#..ROY..(GEN,SAA)198308-198509

BLUE,BLUE,TRIM8#

main73210-30320-05iMS12#..ROY..(GEN,SAA)198308-198509

BEIGE,BEIGE,TRIM4#

main73210-30321-02iMS122,125..SED..ROY198509-198708

MAROON,MAROON,TRIM3#

main73210-30321-04iMS122,125..SED..ROY198509-198708

BLUE,BLUE,TRIM8#

main73210-30321-06iMS122,125..SED..ROY198509-198708

BROWN,BROWN,TRIM4#

main73210-30330-02iMS123..ARL,EUG,SWZ198308-198404

DEEP MAROON,RED/MAROON,TRIM3#

main73210-30330-04iMS123..ARL,EUG,SWZ198308-198404

BLUE,BLUE,TRIM8#

main73210-30330-05iMS123..ARL,EUG,SWZ198308-198404

BEIGE,BEIGE,TRIM4#

main73210-30331-02iMS123..ARL,EUG,SWZ198404-198509

DEEP MAROON,DEEP MAROON,TRIM3#

main73210-30331-04iMS123..ARL,EUG,SWZ198404-198509

BLUE,BLUE,TRIM8#

main73210-30331-05iMS123..ARL,EUG,SWZ198404-198509

BEIGE,BEIGE,TRIM4#

main73210-30333-02iMS123198509-198708

MAROON,MAROON,TRIM3#

main73210-30333-04iMS123198509-198708

BLUE,BLUE,TRIM8#

main73210-30333-06iMS123198509-198708

BROWN,BROWN,TRIM4#

main73210-30341-02iMS122..HT198509-198708

MAROON,MAROON,TRIM3#

sub73210-30620

main73210-30341-04iMS122..HT198509-198708

BLUE,BLUE,TRIM8#

sub73210-30620

main73210-30341-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

sub73210-30620

main73210-30351-02iMS125..HT198509-198708

MAROON,MAROON,TRIM3#

main73210-30351-04iMS125..HT198509-198708

BLUE,BLUE,TRIM8#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-30140-02iLS120,MS122,YS120..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub73220-30490

main73220-30140-04iLS120,MS122,YS120..SED..(SAL,STD)198308-198509

BLUE,BLUE,TRIM8#

sub73220-30490

main73220-30140-05iYS120;LS120..4F,5F;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

sub73220-30490

main73220-30141-02iMS122..(SED,WG)..SAL198509-198708

MAROON,MAROON,TRIM3#

sub73220-30530

main73220-30141-04iLS120,MS122,YS120..(SED,WG)..(DLX,SAL,STD)198509-198708

BLUE,BLUE,TRIM8#

sub73220-30530

main73220-30141-06iLS120..4F;LS120..LHD;MS122,YS120..SED..(DLX,SAL,STD)198509-198708

BROWN,BROWN,TRIM4#

sub73220-30530

main73220-30150-02iMS12#..ROY..(GEN,SAA)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main73220-30150-04iMS12#..ROY..(GEN,SAA)198308-198509

BLUE,BLUE,TRIM8#

main73220-30150-05iMS12#..ROY..(GEN,SAA)198308-198509

BEIGE,BEIGE,TRIM4#

main73220-30151-02iMS122,125..SED..ROY198509-198708

MAROON,MAROON,TRIM3#

main73220-30151-04iMS122,125..SED..ROY198509-198708

BLUE,BLUE,TRIM8#

main73220-30151-06iMS122,125..SED..ROY198509-198708

BROWN,BROWN,TRIM4#

main73220-30160-02iMS123..ARL,EUG,SWZ198308-198404

DEEP MAROON,RED/MAROON,TRIM3#

main73220-30160-04iMS123..ARL,EUG,SWZ198308-198404

BLUE,BLUE,TRIM8#

main73220-30160-05iMS123..ARL,EUG,SWZ198308-198404

BEIGE,BEIGE,TRIM4#

main73220-30161-02iMS123..ARL,EUG,SWZ198404-198509

DEEP MAROON,DEEP MAROON,TRIM3#

main73220-30161-04iMS123..ARL,EUG,SWZ198404-198509

BLUE,BLUE,TRIM8#

main73220-30161-05iMS123..ARL,EUG,SWZ198404-198509

BEIGE,BEIGE,TRIM4#

main73220-30163-02iMS123198509-198708

MAROON,MAROON,TRIM3#

main73220-30163-04iMS123198509-198708

BLUE,BLUE,TRIM8#

main73220-30163-06iMS123198509-198708

BROWN,BROWN,TRIM4#

main73220-30171-02iMS122..HT198509-198708

MAROON,MAROON,TRIM3#

sub73220-30550

main73220-30171-04iMS122..HT198509-198708

BLUE,BLUE,TRIM8#

sub73220-30550

main73220-30171-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

sub73220-30550

main73220-30190-02iMS125..HT198509-198708

MAROON,MAROON,TRIM3#

sub73220-30570

main73220-30190-04iMS125..HT198509-198708

BLUE,BLUE,TRIM8#

sub73220-30570

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-30270-02iMS12#..LHD..ROY198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main73230-30270-04iMS12#..LHD..ROY198308-198509

BLUE,BLUE,TRIM8#

main73230-30270-05iMS12#..LHD..ROY198308-198509

BEIGE,BEIGE,TRIM4#

main73230-30272-02iMS122,125..LHD..ROY..GEN198609-198708

MAROON,MAROON,TRIM3#

main73230-30272-04iMS122,125..LHD..ROY198509-198609

BLUE,BLUE,TRIM8#

main73230-30272-06iMS122,125..LHD..ROY..GEN198609-198708

BROWN,BROWN,TRIM4#

main73230-30290-04iLS120,YS120..4H198308-198509

BLUE,BLUE,TRIM8#

main73230-30290-05iLS120,YS120..LHD..4H198308-198509

BEIGE,BEIGE,TRIM4#

main73230-30291-04iLS120,YS120..4H198509-198708

BLUE,BLUE,TRIM8#

main73230-30291-06iLS120,YS120..LHD..4H198509-198708

BROWN,BROWN,TRIM4#

main73230-30300-02iMS123..ARL,EUG,SWZ198308-198404

DEEP MAROON,RED/MAROON,TRIM3#

main73230-30300-04iMS123..ARL,EUG,SWZ198308-198404

BLUE,BLUE,TRIM8#

main73230-30300-05iLS120,MS122,YS120..(4F,4FC,5F)..(SAL,STD)198308-198509

BEIGE,BEIGE,TRIM4#

main73230-30302-02iMS122..(4FC,5F)..SAL198509-198708

MAROON,MAROON,TRIM3#

main73230-30302-04iLS120,MS122,YS120..(4F,4FC,5F)..(DLX,SAL,STD)198509-198708

BLUE,BLUE,TRIM8#

main73230-30302-06iLS120,MS122,YS120..(HT,SED)..(4F,4FC,5F)..(DLX,SAL,STD)198509-198708

BROWN,BROWN,TRIM4#

main73230-30310-02iMS12#..RHD..4FC..ROY..GEN198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main73230-30310-04iMS12#..RHD..4FC..ROY..GEN198308-198509

BLUE,BLUE,TRIM8#

main73230-30310-05iMS12#..RHD..4FC..ROY..GEN198308-198509

BEIGE,BEIGE,TRIM4#

main73230-30311-02iMS122,125..RHD..4FC..ROY198509-198708

MAROON,MAROON,TRIM3#

main73230-30311-04iMS122,125..RHD..4FC..ROY198509-198708

BLUE,BLUE,TRIM8#

main73230-30311-06iMS122,125..RHD..4FC..ROY198509-198708

BROWN,BROWN,TRIM4#

main73230-30320-02iMS122..4H,4HC198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main73230-30320-04iMS122..SED..(4H,4HC)198308-198509

BLUE,BLUE,TRIM8#

main73230-30320-05iMS122..4H,4HC198308-198509

BEIGE,BEIGE,TRIM4#

main73230-30321-02iMS122..4HC198509-198708

MAROON,MAROON,TRIM3#

main73230-30321-04iMS122..4HC198509-198708

BLUE,BLUE,TRIM8#

main73230-30321-06iMS122..4HC198509-198708

BROWN,BROWN,TRIM4#

main73230-30330-02iMS123,125..4HC198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main73230-30330-04iMS123,125..4HC198308-198509

BLUE,BLUE,TRIM8#

main73230-30330-05iMS123,125..4HC198308-198509

BEIGE,BEIGE,TRIM4#

main73230-30331-02iMS125..4HC198509-198708

MAROON,MAROON,TRIM3#

main73230-30331-04iMS125..4HC198509-198708

BLUE,BLUE,TRIM8#

main73230-30331-06iMS125..4HC198509-198708

BROWN,BROWN,TRIM4#

main73230-30370-02iMS123..ARL,EUG,SWZ198404-198509

DEEP MAROON,DEEP MAROON,TRIM3#

main73230-30370-04iMS123..ARL,EUG,SWZ198404-198509

BLUE,BLUE,TRIM8#

main73230-30370-05iMS123..ARL,EUG,SWZ198404-198509

BEIGE,BEIGE,TRIM4#

main73230-30371-02iMS123198509-198708

MAROON,MAROON,TRIM3#

main73230-30371-04iMS123198509-198708

BLUE,BLUE,TRIM8#

main73230-30371-06iMS123198509-198708

BROWN,BROWN,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-30270-02iMS12#..RHD..4FC..ROY..GEN198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main73230-30270-04iMS12#..RHD..4FC..ROY..GEN198308-198509

BLUE,BLUE,TRIM8#

main73230-30270-05iMS12#..RHD..4FC..ROY..GEN198308-198509

BEIGE,BEIGE,TRIM4#

main73230-30290-04iLS120,YS120..4H198308-198509

BLUE,BLUE,TRIM8#

main73230-30290-05iLS120,YS120..LHD..4H198308-198509

BEIGE,BEIGE,TRIM4#

main73230-30291-04iLS120,YS120..4H198509-198708

BLUE,BLUE,TRIM8#

main73230-30291-06iLS120,YS120..LHD..4H198509-198708

BROWN,BROWN,TRIM4#

main73230-30300-02iMS123..ARL,EUG,SWZ198308-198404

DEEP MAROON,RED/MAROON,TRIM3#

main73230-30300-04iLS120,MS122,YS120..SED..(4F,4FC,5F)..(SAL,STD)..GEN198308-198509

BLUE,BLUE,TRIM8#

main73230-30300-05iLS120,MS122,YS120..(4F,4FC,5F)..(SAL,STD)..GEN198308-198509

BEIGE,BEIGE,TRIM4#

main73230-30310-02iMS12#..LHD..ROY198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main73230-30310-04iMS12#..LHD..ROY198308-198509

BLUE,BLUE,TRIM8#

main73230-30310-05iMS12#..LHD..ROY198308-198509

BEIGE,BEIGE,TRIM4#

main73230-30311-02iMS122,125..LHD..ROY198509-198708

MAROON,MAROON,TRIM3#

main73230-30311-04iMS122,125..LHD..ROY198509-198708

BLUE,BLUE,TRIM8#

main73230-30311-06iMS122,125..SED..LHD..ROY198509-198708

BROWN,BROWN,TRIM4#

main73230-30320-02iMS122..4H,4HC198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main73230-30320-04iMS122..SED..(4H,4HC)198308-198509

BLUE,BLUE,TRIM8#

main73230-30320-05iMS122..4H,4HC198308-198509

BEIGE,BEIGE,TRIM4#

main73230-30321-02iMS122..4HC198509-198708

MAROON,MAROON,TRIM3#

main73230-30321-04iMS122..4HC198509-198708

BLUE,BLUE,TRIM8#

main73230-30321-06iMS122..4HC198509-198708

BROWN,BROWN,TRIM4#

main73230-30330-02iMS123,125..4HC198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main73230-30330-04iMS123,125..4HC198308-198509

BLUE,BLUE,TRIM8#

main73230-30330-05iMS123,125..4HC198308-198509

BEIGE,BEIGE,TRIM4#

main73230-30331-02iMS125..4HC198509-198708

MAROON,MAROON,TRIM3#

main73230-30331-04iMS125..4HC198509-198708

BLUE,BLUE,TRIM8#

main73230-30331-06iMS125..4HC198509-198708

BROWN,BROWN,TRIM4#

main73230-30340-02iMS122..LHD..(4FC,5F)..SAL198308-198401

DEEP MAROON,*SAA,RED/MAROON,TRIM3#

main73230-30340-04iMS122..SED..LHD..(4FC,5F)..SAL198308-198401

BLUE,*SAA,BLUE,TRIM8#

main73230-30340-05iMS122..SAA198401-198509

BEIGE,BEIGE,TRIM4#

main73230-30342-02iMS122..SAA198509-198708

MIDDLE EAST SPEC,MAROON,MAROON,TRIM3#

main73230-30342-04iMS122..DLX..GEN198509-198708

W/POWER WINDOW,BLUE,BLUE,TRIM8#

main73230-30342-06iMS122..SED..SAA198509-198708

W/POWER WINDOW,BROWN,BROWN,TRIM4#

main73230-30360-02iMS122..4H198308-198401

DEEP MAROON,*SAA,RED/MAROON,TRIM3#

main73230-30360-04iMS122..SED..4H198308-198401

BLUE,*SAA,BLUE,TRIM8#

main73230-30360-05iMS122..4H198308-198401

BEIGE,*SAA,BEIGE,TRIM4#

main73230-30370-02iMS123..ARL,EUG,SWZ198404-198509

DEEP MAROON,DEEP MAROON,TRIM3#

main73230-30370-04iMS123..ARL,EUG,SWZ198404-198509

BLUE,BLUE,TRIM8#

main73230-30370-05iMS123..ARL,EUG,SWZ198404-198509

BEIGE,BEIGE,TRIM4#

main73240-30060-02iMS122..(4FC,5F)..SAL..GEN198509-198708

MAROON,MAROON,TRIM3#

main73240-30060-04iLS120,MS122,YS120..(4F,4FC,5F)..(DLX,SAL,STD)..GEN198509-198708

BLUE,BLUE,TRIM8#

main73240-30060-06iLS120,MS122,YS120..SED..(4F,4FC,5F)..(DLX,SAL,STD)..GEN198509-198708

BROWN,BROWN,TRIM4#

main73240-30070-02iMS123198509-198708

MAROON,MAROON,TRIM3#

main73240-30070-04iMS123198509-198708

BLUE,BLUE,TRIM8#

main73240-30070-06iMS123198509-198708

BROWN,BROWN,TRIM4#

main73240-30080-02iMS122,125..RHD..4FC..ROY198509-198708

MAROON,MAROON,TRIM3#

main73240-30080-04iMS122,125..RHD..4FC..ROY198509-198708

BLUE,BLUE,TRIM8#

main73240-30080-06iMS122,125..RHD..4FC..ROY198509-198708

BROWN,BROWN,TRIM4#

9010911010

main90109-11010

9011908197

main90119-08197

9011908436

main90119-08436

9020510003

main90205-10003

9020615002

main90206-15002

9038711009

main90387-11009

9056008028

main90560-08028

9451101200

main94511-01200

18 parts on this diagram · 2 diagrams in section
