BACK DOOR LOCK & HANDLE

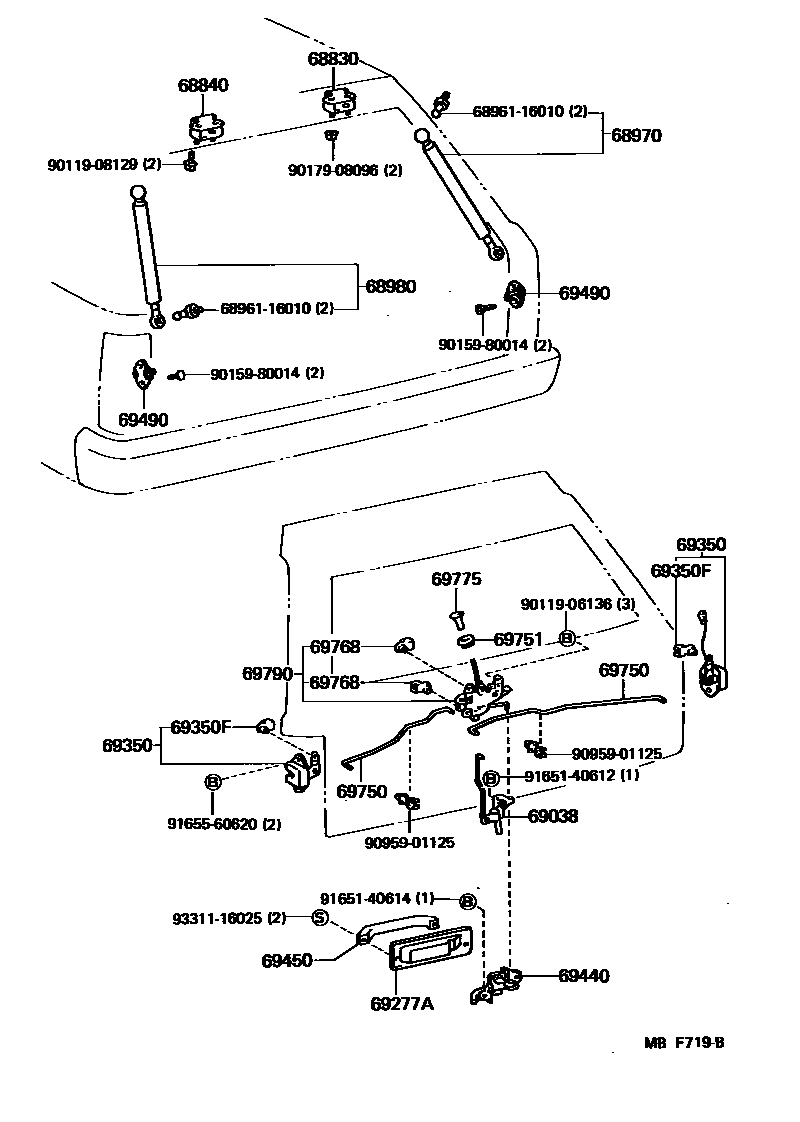

Parts diagram
68830HINGE ASSY, BACK DOOR, RH
main68810-91705i198308-198708
sub68810-91706
68840HINGE ASSY, BACK DOOR, LH
main68810-91705i198308-198708
sub68810-91706
68970STAY ASSY, BACK DOOR, RH
main68950-39085i198308-198708
W/RR WIPER
main68950-39105i198308-198708
W/O RR WIPER
68980STAY ASSY, BACK DOOR
main68960-39045i198308-198708
W/RR WIPER
main68960-39065i198308-198708
W/O RR WIPER
69038PROTECTOR SUB-ASSY, BACK DOOR CHILD
69277ABEZEL, BACK DOOR INSIDE HANDLE
main69277-91701-02i198308-198509
DEEP MAROON,RED/MAROON,TRIM3#
main69277-91701-04i198509-198604
BLUE,BLUE,TRIM8#
main69277-91701-05i198308-198509
BEIGE,BEIGE,TRIM4#
main69277-91701-12i198509-198708
MAROON,MAROON,TRIM3#
main69277-91701-14i198604-198708
BLUE,BLUE,TRIM8#
69350LOCK ASSY, BACK DOOR
main69350-91705i198308-198708
RH
main69360-91701i198308-198708
LH
69350FSNAP, DOOR LOCK CONTROL ROD
main69759-24050i198308-198708
RH
main69759-24060i198308-198708
LH
69440HANDLE ASSY, BACK DOOR INSIDE
main69209-91702-02i198308-198509
DEEP MAROON,RED/MAROON,TRIM3#
main69209-91702-04i198509-198604
BLUE,BLUE,TRIM8#
main69209-91702-05i198308-198509
BEIGE,BEIGE,TRIM4#
main69209-91702-12i198509-198708
MAROON,MAROON,TRIM3#
main69209-91702-14i198604-198708
BLUE,BLUE,TRIM8#
69450HANDLE ASSY, BACK DOOR PULL
main74611-91701-02i198308-198509
DEEP MAROON,RED/MAROON,TRIM3#
main74611-91701-04i198509-198708
BLUE,BLUE,TRIM8#
main74611-91701-05i198308-198509
BEIGE,BEIGE,TRIM4#
main74611-91701-12i198509-198708
MAROON,MAROON,TRIM3#
69490STRIKER ASSY, BACK DOOR LOCK
main69430-91702×2i198308-198708
69750LINK SUB-ASSY, BACK DOOR REMOTE CONTROL
main69764-91704i198308-198708
RH
main69765-91701i198308-198708
LH
69751HOLDER, DOOR LOCK CONTROL KNOB
main69751-91701-04i198509-198708
BLUE,BLUE,TRIM8#
main69751-91701-05i198308-198509
BEIGE,BEIGE,TRIM3#,4#
main69751-91701-12i198509-198708
MAROON,MAROON,TRIM3#
69768SNAP, BACK DOOR LOCK CONTROL LINK
main69759-24060×4i198308-198708
69775BUTTON, DOOR LOCKING(FOR BACK DOOR)
main69741-91701-05i198308-198509
BEIGE,BEIGE,TRIM3#,4#
main69741-91701-12i198509-198708
MAROON,MAROON,TRIM3#
main69741-91701-14i198509-198604
BLUE,BLUE,TRIM8#
main69741-91701-24i198604-198708
BLUE,BLUE,TRIM8#
69790CONTROL ASSY, BACK DOOR LOCK
main69790-91709i198308-198312
main69790-91710i198312-198708
6896116010BOLT, BACK DOOR STAY
main68961-16010
9011906136
main90119-06136
9011908129
main90119-08129
9015980014
main90159-80014
9017908096
main90179-08096
9095901125
main90959-01125
9165140612
main91651-40612
9165140614
main91651-40614
9165560620
main91655-60620
9331116025
main93311-16025

26 parts on this diagram · 1 diagram in section
