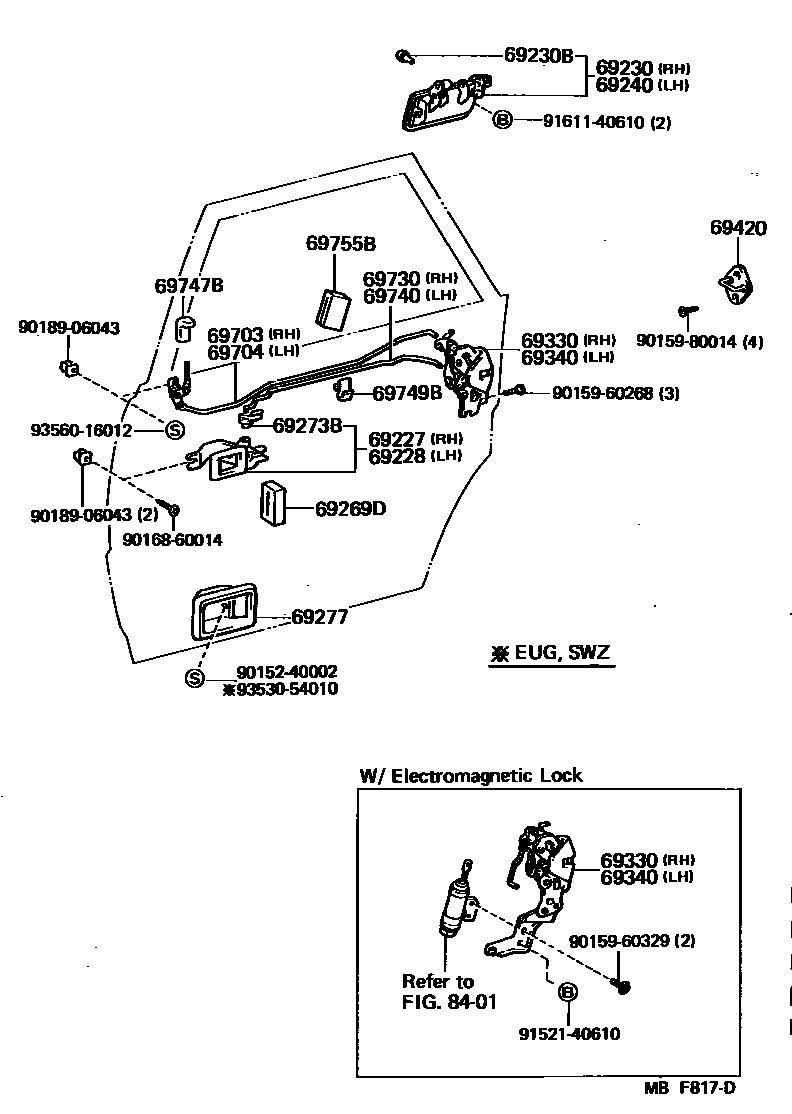

REAR DOOR LOCK & HANDLE

0001 1 0002 1

69227HANDLE, REAR DOOR INSIDE, RH

main69205-30020iLS120,MS12#,YS120198505-198708

main69205-30030iLS120,MS12#,YS120198308-198505

69228HANDLE, REAR DOOR INSIDE, LH

main69206-30020iLS120,MS12#,YS120198308-198505

main69206-30030iLS120,MS12#,YS120198505-198708

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-30070iLS120,MS12#,YS120..SED,WG198308-198708

main69230-30080iMS122,125..HT198509-198708

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021×4iLS120,MS12#,YS120198308-198708

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-30080iLS120,MS12#,YS120..SED,WG198308-198708

main69240-30090iMS122,125..HT198509-198708

69269DSEAL, DOOR INSIDE HANDLE NO.2(FOR REAR DOOR)

main69269-30010×2iMS123..EUG198308-198509

COLD SPEC

69273BSNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)

main69759-24010iLS120,MS12#,YS120198308-198708

RH

main69759-24020iLS120,MS12#,YS120198308-198708

LH

69277BEZEL, REAR DOOR INSIDE HANDLE

main69277-30040×2iLS120,MS12#,YS120..ARL,GEN,SAA198308-198708

main69277-32020-04×2iMS123..SAL198308-198509

BLUE,BLUE,TRIM8#

sub69277-89104

main69277-32020-12×2iMS123..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub69277-89104

main69277-32020-35×2iMS123..SAL198308-198509

BEIGE,BEIGE,TRIM4#

sub69277-89104

69330LOCK ASSY, REAR DOOR, RH

main69330-30170iLS120,YS120..STD198308-198509

main69330-30180iMS123..SAL198308-198509

main69330-30210iLS120,MS12#,YS120..(ROY,SAL)..GEN198308-198509

main69330-30220iMS123..LHD..GEN;MS122..LHD..(4FC,5F)..SAL198308-198401

*SAA

main69330-30240iLS120,YS120198509-198708

main69330-30250iMS122,125..(ROY,SAL)..GEN198509-198708

main69330-30260iMS122..DLX..GEN198509-198708

main69330-30270iMS12#..(SED,WG)..(ARL,SAA)198509-198708

main69330-30300iMS122,125..HT198509-198708

69340LOCK ASSY, REAR DOOR, LH

main69340-30170iLS120,YS120..STD198308-198509

main69340-30180iMS123..SAL198308-198509

main69340-30210iLS120,MS12#,YS120..(ROY,SAL)..GEN198308-198509

main69340-30220iMS123..ARL198308-198509

main69340-30240iLS120,YS120198509-198708

main69340-30250iMS122,125..(ROY,SAL)..GEN198509-198708

main69340-30260iMS122..DLX..GEN198509-198708

main69340-30270iMS12#..(SED,WG)..(ARL,SAA)198509-198708

main69340-30300iMS122,125..HT198509-198708

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-87001×2iLS120,MS12#,YS120198308-198708

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69770-30090iLS120,MS12#,YS120198308-198509

main69770-30110×2iLS120,MS12#,YS120..SED,WG198509-198708

main69770-30120×2iMS122,125..HT198509-198708

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69780-30060iLS120,MS12#,YS120198308-198509

main69780-30080×2iLS120,MS12#,YS120..SED,WG198509-198708

main69780-30090×2iMS122,125..HT198509-198708

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69713-30060iLS120,MS12#,YS120..SED,WG198308-198708

main69713-30070iMS122,125..HT198509-198708

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69714-30060iLS120,MS12#,YS120..SED,WG198308-198708

main69714-30070iMS122,125..HT198509-198708

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-30030-02×2iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main69741-30030-04×2iLS120,MS12#,YS120198509-198604

BLUE,BLUE,TRIM8#

main69741-30030-05×2iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main69741-30030-06×2iLS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC)198509-198708

BROWN,BROWN,TRIM4#

main69741-30030-12×2iMS12#..ROY,SAL198509-198708

MAROON,RED/MAROON,TRIM3#

main69741-30030-14×2iLS120,MS12#,YS120198604-198708

BLUE,BLUE,TRIM8#

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12030×2iMS122,125..HT198509-198708

main69749-30020×2iLS120,MS12#,YS120..SED,WG198308-198708

69755BSILENCER, REAR DOOR LOCK LINK

main69759-30021×2iLS120,MS12#,YS120198308-198708

8401

9015240002

main90152-40002

9015960268

main90159-60268

9015960329

main90159-60329

9015980014

main90159-80014

9016860014

main90168-60014

9018906043

main90189-06043

9152140610

main91521-40610

9161140610

main91611-40610

9353054010

main93530-54010

9356016012

main93560-16012

29 parts on this diagram · 2 diagrams in section
