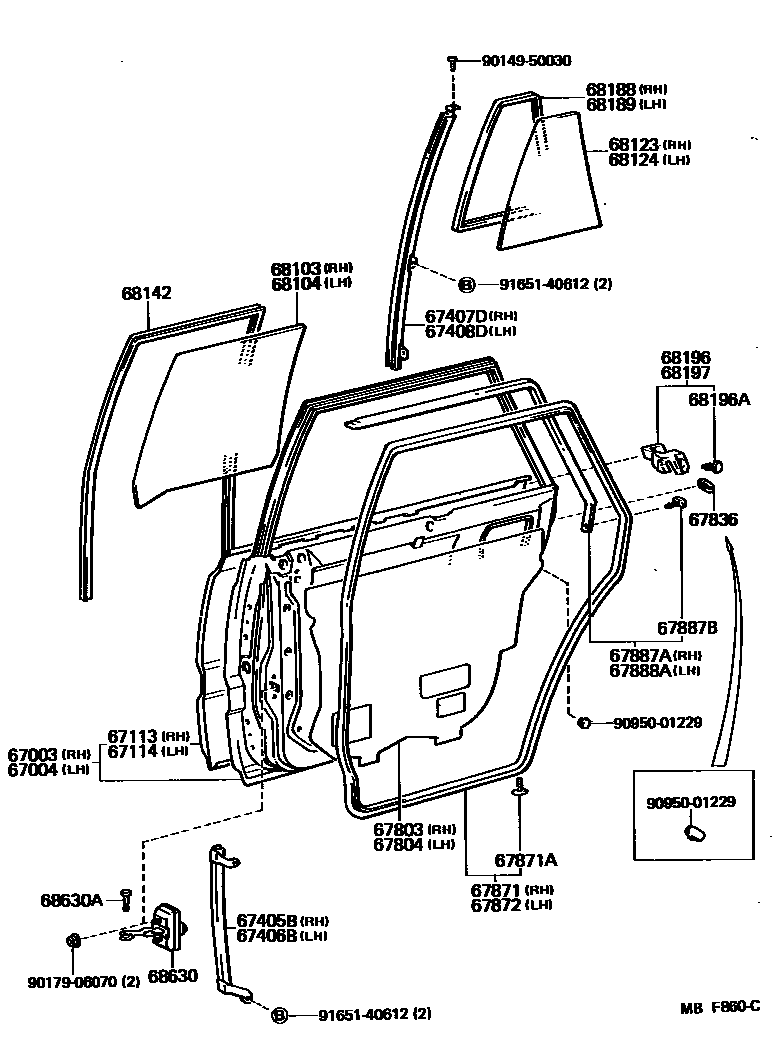

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-30260iMS123..LHD..GEN;MS122..SED..LHD..(4FC,5F)..SAL¥61,500198308-198401

*SAA

main67003-30260iMS123..ARL¥61,500198308-198708

main67003-30290iLS120,MS12#,YS120..SED..(EUG,GEN,SWZ)¥61,500198308-198708

main67003-30320iMS122,125..HT¥74,800198509-198708

main67003-91704iMS122..WG..5F¥63,100198308-198509

*SAA

main67003-91705iMS122..WG¥69,500198308-198509

sub67003-91704¥63,100

main67003-91706iMS122..WG..SAA¥73,500198509-198708

main67003-91707iMS122..WG..GEN¥63,300198509-198708

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-30260iMS12#..SED..SAA¥61,500198308-198708

main67004-30260iMS123..LHD..GEN;MS122..SED..LHD..(4FC,5F)..SAL¥61,500198308-198401

*SAA

main67004-30290iLS120,MS12#,YS120..SED..(EUG,GEN,SWZ)¥61,500198308-198708

main67004-30320iMS122,125..HT198509-198708

main67004-91703iMS122..WG..5F¥63,100198308-198509

*SAA

main67004-91705iMS122..WG..GEN¥69,500198308-198509

sub67004-91703¥63,100

main67004-91706iMS122..WG..SAA¥73,500198509-198708

main67004-91707iMS122..WG..GEN¥63,300198509-198708

67113PANEL, REAR DOOR, OUTER RH

main67113-30100iLS120,MS12#,YS120..SED,WG198308-198708

main67113-30905iMS122,125..HT¥26,300198509-198708

67114PANEL, REAR DOOR, OUTER LH

main67114-30110iLS120,MS12#,YS120..SED,WG198308-198708

main67114-30905iMS122,125..HT¥26,300198509-198708

67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-30050iMS122..HT¥4,130198509-198708

main67405-30070iLS120,MS12#,YS120..SED,WG¥2,090198308-198708

67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-30070iMS122..HT¥4,130198509-198708

main67406-30080iLS120,MS12#,YS120..SED,WG¥2,090198308-198708

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-30080iLS120,MS12#,YS120..SED¥4,440198308-198708

main67407-30090iMS122..HT¥3,210198509-198708

main67407-91701iMS122..WG¥2,090198308-198708

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-30070iLS120,MS12#,YS120..SED¥4,440198308-198708

main67408-30080iMS122..HT¥3,210198509-198708

main67408-91701iMS122..WG¥2,090198308-198708

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-30160iLS120,MS122,123,YS120..(SAL,STD)..(GEN,SAA,SWZ)¥660198308-198604

sub67841-30180¥640

main67841-30170iMS122..HT¥660198509-198604

sub67841-30190¥640

main67841-30180iLS120,MS12#,YS120..SED,WG¥640198308-198708

main67841-30190iMS122,125..HT¥640198509-198708

main67841-30200iMS123..EUG¥740198312-198509

sub67841-30210¥750

main67841-30200iMS123..EUG¥740198308-198312

COLD SPEC

sub67841-30210¥750

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-30160iLS120,MS12#,YS120..SAL,STD¥660198308-198604

sub67841-30180¥640

main67841-30170iMS122..HT¥660198509-198604

sub67841-30190¥640

main67841-30180iLS120,MS12#,YS120..SED¥640198308-198708

main67841-30190iMS125..HT¥640198509-198708

main67842-30070iMS123..EUG¥740198312-198509

sub67842-30080¥750

main67842-30070iMS123..EUG¥740198308-198312

COLD SPEC

sub67842-30080¥750

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-14010iMS123..EUG¥250198308-198509

COLD SPEC

67871WEATHERSTRIP, REAR DOOR, RH

main67871-30100iLS120,MS12#,YS120..SED¥5,400198308-198708

main67871-30120iMS122,125..HT¥9,800198509-198708

main67871-91704iMS122..WG¥8,500198308-198708

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67868-30040iLS120,MS12#,YS120..SED,WG¥110198308-198708

67872WEATHERSTRIP, REAR DOOR, LH

main67872-30100iLS120,MS12#,YS120..SED¥5,400198308-198609

sub67872-30111¥5,400

main67872-30111iLS120,MS12#,YS120..SED¥5,400198609-198708

main67872-30120iMS122,125..HT¥9,800198509-198708

main67872-91704iMS122..WG¥8,500198308-198708

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-30020iMS123..SAL¥3,370198308-198509

main67887-30040iLS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA)¥3,760198308-198509

main67887-30060iMS122..DLX¥3,350198509-198708

main67887-30080iMS12#..SED..(ROY,SAL)¥3,790198509-198708

main67887-91703iMS122..WG¥4,010198308-198509

main67887-91707iMS122..WG¥4,020198509-198708

67887BCLIP(FOR REAR DOOR WEATHERSTRIP)

main67869-30020iLS120,MS12#,YS120..ROY,SAL¥220198308-198708

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-30020iMS123..SAL¥3,370198308-198509

main67888-30040iLS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA)¥3,760198308-198509

main67888-30060iMS122..DLX¥3,350198509-198708

main67888-30080iMS12#..SED..(ROY,SAL)¥3,790198509-198708

main67888-91703iMS122..WG¥4,010198308-198509

main67888-91707iMS122..WG¥4,020198509-198708

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-30220iLS120,MS12#,YS120..SED¥9,300198308-198708

*TT,T=4.0

main68113-30230iLS120,YS120..STD¥8,100198308-198708

*TEM,T=4.0

sub68113-30220¥9,300

main68113-30240iLS120,MS12#,YS120..SED..(ROY,SAL)..(GEN,SAA)¥12,600198308-198708

BRONZE,*TT,T=4.0

main68113-30250iMS122,125..HT¥22,200198509-198708

*TT,T=5.0

main68113-30260iMS122,125..HT¥29,800198509-198708

BRONZE,*TT,T=5.0

main68113-91704iMS122..WG¥10,700198308-198708

*TT,T=4.0

main68113-91705iMS122..WG¥14,100198308-198708

BRONZE,*TT,T=4.0

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-30140iLS120,MS12#,YS120..SED¥9,300198308-198708

*TT,T=4.0

main68114-30150iLS120,YS120..STD¥8,100198308-198708

*TEM,T=4.0

main68114-30160iLS120,MS12#,YS120..SED..(ROY,SAL)..(GEN,SAA)¥12,600198308-198708

BRONZE,*TT,T=4.0

main68114-30170iMS122,125..HT¥22,200198509-198708

*TT,T=5.0

main68114-30180iMS122,125..HT¥29,800198509-198708

BRONZE,*TT,T=5.0

main68114-91704iMS122..WG¥10,700198308-198708

*TT,T=4.0

main68114-91705iMS122..WG¥14,100198308-198708

BRONZE,*TT,T=4.0

68123GLASS, REAR DOOR WINDOW, RH

main68123-30180iLS120,MS12#,YS120..SED¥6,800198308-198708

*TT,T=3.5

main68123-30190iLS120,YS120..STD¥6,000198308-198708

*TEM,T=3.5

sub68123-30180¥6,800

main68123-30200iLS120,MS12#,YS120..SED..(ROY,SAL)..(GEN,SAA)¥9,400198308-198708

BRONZE,*TT,T=4.0

main68123-91706iMS122..WG¥5,700198308-198708

*TT,T=4.0

main68123-91707iMS122..WG¥7,800198308-198708

BRONZE,*TT,T=4.0

68124GLASS, REAR DOOR WINDOW, LH

main68124-30120iLS120,MS12#,YS120..SED¥6,800198308-198708

*TT,T=3.5

main68124-30130iLS120,YS120..STD¥6,000198308-198708

*TEM,T=3.5

main68124-30140iLS120,MS12#,YS120..SED..(ROY,SAL)..(GEN,SAA)¥9,400198308-198708

BRONZE,*TT,T=4.0

main68124-91706iMS122..WG¥5,700198308-198708

*TT,T=4.0

main68124-91707iMS122..WG¥7,800198308-198708

BRONZE,*TT,T=4.0

68142RUN, REAR DOOR GLASS

main68142-30070iLS120,MS12#,YS120..SED¥4,470198308-198509

main68142-30090iMS122..WG¥4,470198308-198509

main68142-30100iLS120,MS12#,YS120..SED¥4,480198509-198708

main68142-30110iMS122..WG¥4,470198509-198708

sub68142-30100¥4,480

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-30070iLS120,MS12#,YS120..SED¥3,090198308-198708

main68188-91702iMS122..WG¥3,250198308-198708

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-30050iLS120,MS12#,YS120..SED¥3,090198308-198708

main68189-91702iMS122..WG¥3,250198308-198708

68196SEAL, REAR DOOR BELT, RH

main68196-30030iLS120,MS12#,YS120..SED,WG¥850198308-198708

68196ACLIP(FOR REAR DOOR BELT SEAL)

main67869-12010iLS120,MS12#,YS120..SED,WG¥210198308-198708

sub90467-05045¥140

68197SEAL, REAR DOOR BELT, LH

main68197-30030iLS120,MS12#,YS120..SED,WG198308-198708

68630CHECK ASSY, REAR DOOR

main68630-30040iLS120,MS12#,YS120..SED,WG¥4,260198308-198708

main68630-30050iMS122,125..HT¥4,260198509-198708

68630APIN(FOR REAR DOOR CHECK)

main68617-30010iLS120,MS12#,YS120¥300198308-198507

sub68617-90K00¥200

main68617-90K00iLS120,MS12#,YS120¥200198507-198708

9014950030

main90149-50030¥200

9017906070

main90179-06070¥180

9095001229

main90950-01229¥200

9165140612

main91651-40612¥70

33 parts on this diagram · 4 diagrams in section
