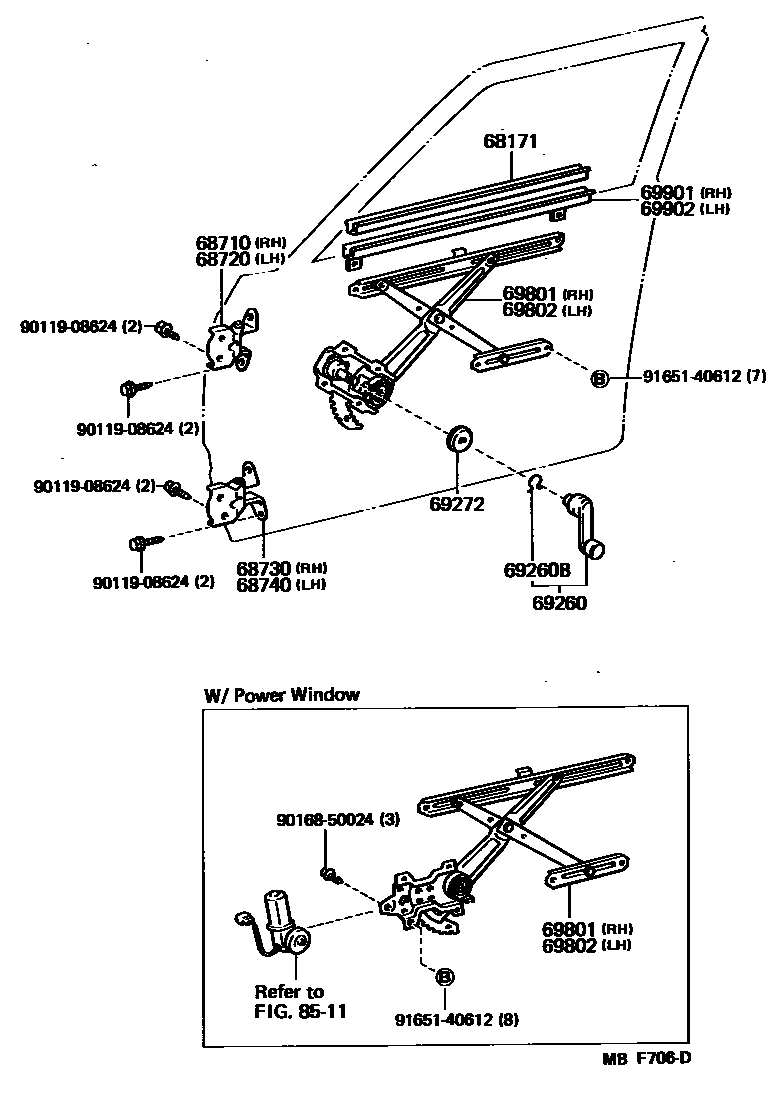

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-20030iLS120,MS12#,YS120..SED,WG198308-198708

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-32010iLS120,MS12#,YS120198308-198708

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-32010iLS120,MS12#,YS120198308-198708

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-32010iLS120,MS12#,YS120198308-198708

sub68730-30090

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-32010iLS120,MS12#,YS120198308-198708

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14020-04iLS120,MS122,YS120..(DLX,STD)..GEN198308-198604

BLUE,BLUE,TRIM8#

sub69260-14020

sub69260-22030

main69260-14020-20iLS120,MS122,YS120..(DLX,STD)..GEN198604-198708

BLUE,BLUE,TRIM8#

sub69260-14020

sub69260-22030

main69260-14020-35iLS120..4F;YS120..STD;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

sub69260-14020

sub69260-22030

main69260-14020-36iLS120..4F;LS120..LHD;MS122,YS120..(DLX,STD)..GEN198509-198708

BROWN,BROWN,TRIM4#

sub69260-14020

sub69260-22030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iLS120,YS120..STD198308-198708

sub90520-01274

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010iLS120,YS120..STD198308-198708

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-30150iLS120,MS12#,YS120..ROY,SAL198308-198509

main69801-30150iMS12#..SED,WG198509-198708

W/*PW

main69801-30160iMS122,125..HT198509-198708

main69810-30280iLS120,MS122,YS120..(DLX,STD)..GEN198308-198703

sub69810-30281

main69810-30281iLS120,MS122,YS120..(DLX,STD)..GEN198703-198708

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-30150iMS12#..SED,WG198509-198708

W/*PW

main69802-30150iLS120,MS12#,YS120..ROY,SAL198308-198509

main69802-30160iMS122,125..HT198509-198708

main69820-30200iLS120,MS122,YS120..(DLX,STD)..GEN198308-198703

sub69820-30201

main69820-30201iLS120,MS122,YS120..(DLX,STD)..GEN198703-198708

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-30100iLS120,MS12#,YS120..SED,WG198308-198708

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-30070iLS120,MS12#,YS120..SED,WG198308-198708

8511

9011908624

main90119-08624

9016850024

main90168-50024

9165140612

main91651-40612

16 parts on this diagram · 2 diagrams in section
