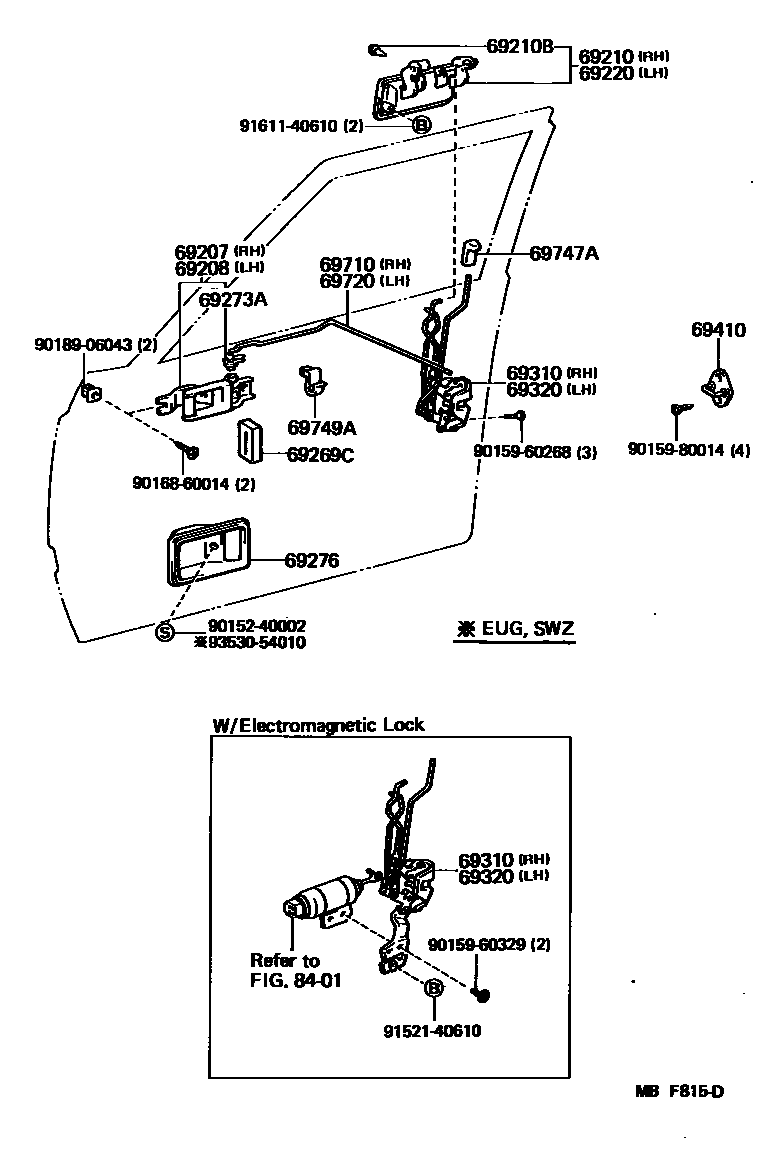

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30020iLS120,MS12#,YS120198505-198708

main69205-30030iLS120,MS12#,YS120198308-198505

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30020iLS120,MS12#,YS120198308-198505

main69206-30030iLS120,MS12#,YS120198505-198708

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-30170iLS120,MS12#,YS120198308-198708

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iLS120,MS12#,YS120198308-198708

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-30140iLS120,MS12#,YS120198308-198708

69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)

main69269-30010iMS123..EUG198308-198509

COLD SPEC

69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)

main69759-24010iLS120,MS12#,YS120198308-198708

RH

main69759-24020iLS120,MS12#,YS120198308-198708

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-30040iLS120,MS12#,YS120..ARL,GEN,SAA198308-198708

main69277-32020-04iMS123..SAL198308-198509

BLUE,BLUE,TRIM8#

sub69277-32020

sub69277-89104

main69277-32020-12iMS123..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub69277-32020

sub69277-89104

main69277-32020-35iMS123..SAL198308-198509

BEIGE,BEIGE,TRIM4#

sub69277-32020

sub69277-89104

69310LOCK ASSY, FRONT DOOR, RH

main69310-30290iLS120,YS120..RHD198509-198708

sub69310-30570

main69310-30460iLS120,YS120..RHD..STD198308-198509

sub69310-30290

main69310-30470iLS120,YS120..LHD..STD198308-198509

sub69310-30550

main69310-30480iLS120,MS12#,YS120..LHD..(ROY,SAL)..GEN198308-198509

sub69310-30580

main69310-30500iLS120,MS12#..RHD..(ROY,SAL)..GEN198308-198509

sub69310-30560

main69310-30530iMS123..ARL198308-198509

sub69310-30590

main69310-30540iMS123..LHD..GEN;MS122..LHD..(4FC,5F)..SAL198308-198401

*SAA

sub69310-30600

main69310-30540iMS12#..SAA198401-198509

sub69310-30600

main69310-30550iLS120,YS120..LHD198509-198708

sub69310-30580

main69310-30570iMS122,125..RHD198509-198708

main69310-30580iMS122,125..LHD..GEN198509-198708

main69310-30590iMS123198509-198708

main69310-30600iMS122,125..(SED,WG)..SAA198509-198708

main69310-30640iMS122,125..HT198509-198708

69320LOCK ASSY, FRONT DOOR, LH

main69320-30440iLS120,YS120..RHD..STD198308-198509

sub69320-30520

main69320-30450iLS120,YS120..LHD..STD198308-198509

sub69320-30530

main69320-30470iLS120,MS12#,YS120..LHD..(ROY,SAL)..GEN198308-198509

sub69320-30560

main69320-30480iLS120,MS12#..RHD..(ROY,SAL)..GEN198308-198509

sub69320-30540

main69320-30500iMS123..ARL198308-198509

sub69320-30570

main69320-30510iMS123..LHD..GEN;MS122..LHD..(4FC,5F)..SAL198308-198401

*SAA

sub69320-30590

main69320-30510iMS12#..SAA198401-198509

sub69320-30590

main69320-30520iLS120,YS120..RHD198509-198708

sub69320-30540

main69320-30530iLS120,YS120..LHD198509-198708

sub69320-30560

main69320-30540iMS122,125..RHD198509-198708

main69320-30550iMS122..DLX..GEN198509-198708

sub69320-30560

main69320-30560iMS122,125..LHD..GEN198509-198708

main69320-30570iMS123198509-198708

main69320-30580iMS122..DLX..SAA198509-198708

main69320-30590iMS122,125..(SED,WG)..(ROY,SAL)..SAA198509-198708

main69320-30620iMS122,125..HT198509-198708

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iLS120,MS12#,YS120198308-198708

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-30080iLS120,MS12#,YS120..SED,WG198308-198708

main69711-30090iMS122,125..HT198509-198708

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-30090iLS120,MS12#,YS120..SED,WG198308-198708

main69712-30100iMS122,125..HT198509-198708

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-30030-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub69741-30030

main69741-30030-04iLS120,MS12#,YS120198308-198604

BLUE,BLUE,TRIM8#

sub69741-30030

main69741-30030-05iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

sub69741-30030

main69741-30030-06iLS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC)198509-198708

BROWN,BROWN,TRIM4#

sub69741-30030

main69741-30030-12iMS12#..ROY,SAL198509-198708

MAROON,RED/MAROON,TRIM3#

sub69741-30030

main69741-30030-14iLS120,MS12#,YS120198604-198708

BLUE,BLUE,TRIM8#

sub69741-30030

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-30020iLS120,MS12#,YS120198308-198708

8401

9015240002

main90152-40002

9015960268

main90159-60268

9015960329

main90159-60329

9015980014

main90159-80014

9016860014

main90168-60014

9018906043

main90189-06043

9152140610

main91521-40610

9161140610

main91611-40610

9353054010

main93530-54010

25 parts on this diagram · 2 diagrams in section
