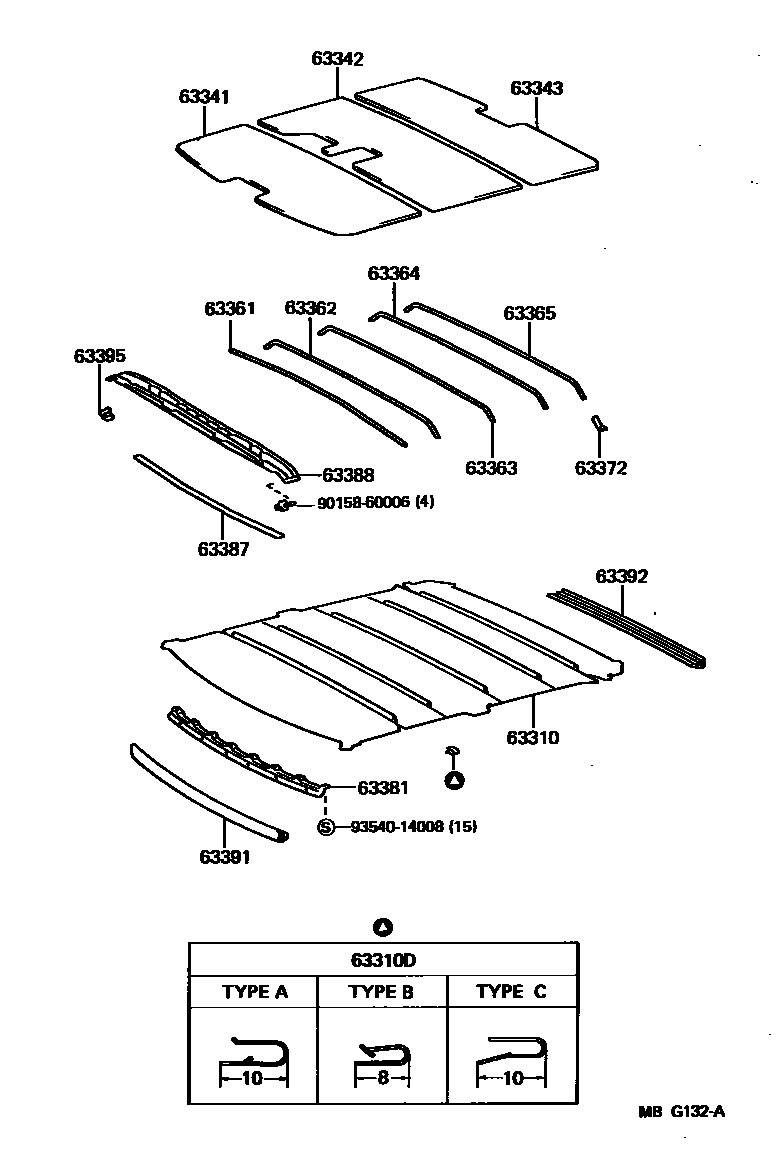

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1 0004 1

63310HEADLINING ASSY, ROOF

main63310-30350-04iLS120,MS122,YS120..DLX,STD198308-198708

BLUE,BLUE,TRIM8#

main63310-30350-05iLS120..4F;LS120..LHD..STD;MS122,YS120..DLX,STD198308-198708

BEIGE,BEIGE,TRIM4#

main63310-30360-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

W/O MOON ROOF,L-BLUE,BLUE,TRIM8#

main63310-30360-05iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

W/O MOON ROOF,BEIGE,BEIGE,TRIM3#,4#

main63310-30370-04iMS12#..SED..(EUG,GEN,SAA,SWZ)198308-198509

W/MOON ROOF,L-BLUE,BLUE,TRIM8#

sub63310-30371

main63310-30370-05iMS12#..SED..(EUG,GEN,SAA,SWZ)198308-198509

W/MOON ROOF,BEIGE,BEIGE,TRIM3#,4#

sub63310-30371

main63310-30371-04iMS122,125..SED..(ROY,SAL)198509-198708

W/MOON ROOF,BLUE,BLUE,TRIM8#

main63310-30371-05iMS122,125..SED..(ROY,SAL)198509-198708

W/MOON ROOF,BEIGE,BEIGE,TRIM3#,4#

main63310-30410-04iYS120..RHD198308-198511

THAILAND SPEC,L-BLUE,BLUE,TRIM8#

main63310-30410-05iYS120..RHD198308-198511

THAILAND SPEC,BEIGE,BEIGE,TRIM3#,4#

main63310-30420-04iYS120..SAL198308-198509

PHILIPPINE SPEC,L-BLUE,BLUE,TRIM8#

main63310-30420-04iMS122..RHD..5F198308-198708

THAILAND SPEC,L-BLUE,BLUE,TRIM8#

main63310-30420-04iMS122..RHD..5F198308-198708

TRINIDAD TOBACO SPEC,L-BLUE,BLUE,TRIM8#

main63310-30420-05iYS120..SAL198308-198509

PHILIPPINE SPEC,BEIGE,BEIGE,TRIM3#,4#

main63310-30420-05iMS122..4HC;MS122..RHD..ROY198308-198708

THAILAND SPEC,BEIGE,BEIGE,TRIM3#,4#

main63310-30420-05iMS122..4HC;MS122..RHD..ROY198308-198708

TRINIDAD TOBACO SPEC,BEIGE,BEIGE,TRIM3#,4#

main63310-30440-04iMS122,125..HT198509-198708

W/MOON ROOF,BLUE,BLUE,TRIM8#

main63310-30440-06iMS122,125..HT198509-198708

W/MOON ROOF,BROWN,BROWN,TRIM4#

main63310-30450-04iMS122,125..HT198509-198708

W/O MOON ROOF,BLUE,BLUE,TRIM8#

main63310-30450-06iMS122,125..HT198509-198708

W/O MOON ROOF,BROWN,BROWN,TRIM4#

main63310-91710-04iMS122..WG198509-198708

BLUE,BLUE,TRIM8#

main63310-91710-05iMS122..WG198308-198708

BEIGE,BEIGE,TRIM3#,4#

63310DCLIP, ROOF HEADLINING

main90468-04008iYS120..SAL198308-198509

PHILIPPINE SPEC,TYPE B

main90468-04008iYS120..SAL198308-198509

MALAYSIA&THAILAND SPEC,TYPE B

main90468-04008iMS122..4HC;MS122..RHD..ROY198308-198708

TRINDAD TOBACO SPEC,TYPE B

main90468-04008iMS122,YS120..RHD..MTM198509-198708

THAILAND SPEC,TYPE B

main90468-04010iMS122,YS120..RHD..MTM198509-198708

THAILAND SPEC TYPE A

sub90468-04073

main90468-04010iMS122..RHD..5F;LS120,MS123,YS120..RHD..(4F,4FC)..GEN198308-198509

PHILIPPINE SPEC,TYPE A

sub90468-04073

main90468-04010iYS120..SAL198308-198509

MALAYSIA&THAILAND SPEC,TYPE A

sub90468-04073

main90468-04010iMS122..4HC;MS122..RHD..ROY198308-198708

TRINDAD TOBACO SPEC,TYPE A

sub90468-04073

main90468-04137iLS120,MS12#,YS120..SED198406-198708

TYPE C

63341PAD, ROOF SILENCER, NO.1

main63341-30100iLS120,MS12#,YS120..SED198308-198708

sub63341-22H92

main63341-30110iMS122,125..HT198509-198708

sub63341-22H92

main63341-91705iMS122..WG198308-198708

sub63341-22H92

63342PAD, ROOF SILENCER, NO.2

main63342-91704iMS122..WG198308-198708

sub63341-22H92

main63345-30020iLS120,MS12#,YS120..SED198308-198708

sub63341-22H92

main63345-30060iMS122,125..HT198509-198708

sub63341-22H92

63343PAD, ROOF SILENCER, NO.3

main63341-30100iLS120,MS12#,YS120..SED198308-198708

sub63341-22H92

main63342-91703iMS122..WG198308-198708

sub63341-22H92

main63343-30070iMS122,125..HT198509-198708

sub63341-22H92

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-30080iLS120,MS122,YS120..DLX,STD198308-198708

L=1059

main63361-30090iLS120,MS122,YS120..DLX,STD198308-198708

L=1062

main63361-30100iMS122,YS120..RHD..MTM198308-198708

THAILAND SPEC,L=1050

main63361-30100iYS120..SAL198308-198509

PHILIPPINE SPEC,L=1050

main63361-30100iMS122,YS120..RHD..MTM198308-198708

TRINDAD TOBACO SPEC,L=1050

main63361-30110iMS122,YS120..RHD..MTM198308-198708

THAILAND SPEC,L=1053

main63361-30110iYS120..SAL198308-198509

PHILIPPINE SPEC,L=1053

main63361-30110iMS122..4HC;MS122..RHD..ROY198308-198708

TRINDAD TOBACO SPEC,L=1053

main63361-91704iMS122..WG198308-198708

main63362-30080iLS120,MS122,YS120..DLX,STD198308-198708

L=1065

sub63362-30090

main63362-30090iLS120,MS122,YS120..DLX,STD198308-198708

L=1068

main63362-30100iYS120..SAL198308-198509

PHILIPPINE SPEC,L=1056

main63362-30100iMS122..4HC;MS122..RHD..ROY198308-198708

TRINDAD TOBACO SPEC,L=1056

main63362-30100iMS122..4HC;MS122..RHD..ROY198308-198708

THAILAND SPEC,L=1056

main63362-30110iYS120..SAL198308-198509

PHILIPPINE SPEC,L=1059

main63362-30110iMS122..4HC;MS122..RHD..ROY198308-198708

TRINDAD TOBACO SPEC,L=1059

main63362-30110iMS122..4HC;MS122..RHD..ROY198308-198708

THAILAND SPEC,L=1059

main63363-30070iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

63362SUPPORT, ROOF HEADLINING, NO.2

main63361-30080iLS120,MS12#,YS120..SED198308-198708

L=1059

main63361-30090iLS120,MS12#,YS120..SED198308-198708

L=1062

main63361-30100iMS122..4HC;MS122..RHD..ROY198308-198708

THAILAND SPEC,L=1050

main63361-30100iYS120..SAL198308-198509

PHILIPPINE SPEC,L=1050

main63361-30100iMS122,YS120..RHD..MTM198308-198708

TRINDAD TOBACO SPEC,L=1050

main63361-30110iMS122,YS120..RHD..MTM198308-198708

THAILAND SPEC,L=1053

main63361-30110iMS122,YS120..RHD..MTM198308-198708

TRINDAD TOBACO SPEC,L=1053

main63361-30110iYS120..SAL198308-198509

PHILIPPINE SPEC,L=1053

main63362-30080iLS120,MS12#,YS120..SED198308-198708

L=1065

sub63362-30090

main63362-30090iLS120,MS12#,YS120..SED198308-198708

L=1068

main63362-30100iMS122..4HC;MS122..RHD..ROY198308-198708

THAILAND SPEC,L=1056

main63362-30100iYS120..SAL198308-198509

PHILIPPINE SPEC,L=1056

main63362-30100iMS122..4HC;MS122..RHD..ROY198308-198708

TRINDAD TOBACO SPEC,L=1056

main63362-30110iYS120..SAL198308-198509

PHILIPPINE SPEC,L=1059

main63362-30110iMS122..4HC;MS122..RHD..ROY198308-198708

TRINDAD TOBACO SPEC,L=1059

main63362-30110iMS122..4HC;MS122..RHD..ROY198308-198708

THAILAND SPEC,L=1059

main63362-91704iMS122..WG198308-198708

63363SUPPORT, ROOF HEADLINING, NO.3

main63361-30080iLS120,MS12#,YS120..SED198308-198708

L=1059

main63361-30090iLS120,MS12#,YS120..SED198308-198708

L=1062

main63361-30100iYS120..SAL198308-198509

PHILIPPINE SPEC,L=1050

main63361-30100iMS122..4HC;MS122..RHD..ROY198308-198708

TRINDAD TOBACO SPEC,L=1050

main63361-30100iMS122..4HC;MS122..RHD..ROY198308-198708

THAILAND SPEC,L=1050

main63361-30110iMS122,YS120..RHD..MTM198308-198708

THAILAND SPEC,L=1053

main63361-30110iMS122..4HC;MS122..RHD..ROY198308-198708

TRINDAD TOBACO SPEC,L=1053

main63361-30110iYS120..SAL198308-198509

PHILIPPINE SPEC,L=1053

main63362-30080iLS120,MS12#,YS120..SED198308-198708

L=1065

sub63362-30090

main63362-30090iLS120,MS12#,YS120..SED198308-198708

L=1068

main63362-30100iMS122..4HC;MS122..RHD..ROY198308-198708

THAILAND SPEC,L=1056

main63362-30100iYS120..SAL198308-198509

PHILIPPINE SPEC,L=1056

main63362-30100iMS122..4HC;MS122..RHD..ROY198308-198708

TRINDAD TOBACO SPEC,L=1056

main63362-30110iMS122,YS120..RHD..MTM198308-198708

THAILAND SPEC,L=1059

main63362-30110iYS120..SAL198308-198509

PHILIPPINE SPEC,L=1059

main63362-30110iMS122..4HC;MS122..RHD..ROY198308-198708

TRINDAD TOBACO SPEC,L=1059

main63362-91704iMS122..WG198308-198708

63364SUPPORT, ROOF HEADLINING, NO.4

main63361-30080iLS120,MS12#,YS120..SED198308-198708

L=1059

main63361-30090iLS120,MS12#,YS120..SED198308-198708

L=1062

main63361-30100iMS122,YS120..RHD..MTM198308-198708

TRINDAD TOBACO SPEC,L=1050

main63361-30100iMS122..4HC;MS122..RHD..ROY198308-198708

THAILAND SPEC,L=1050

main63361-30100iYS120..SAL198308-198509

PHILIPPINE SPEC,L=1050

main63361-30110iMS122,YS120..RHD..MTM198308-198708

TRINDAD TOBACO SPEC,L=1053

main63361-30110iMS122..4HC;MS122..RHD..ROY198308-198708

THAILAND SPEC,L=1053

main63361-30110iYS120..SAL198308-198509

PHILIPPINE SPEC,L=1053

main63362-30080iLS120,MS12#,YS120..SED198308-198708

L=1065

sub63362-30090

main63362-30090iLS120,MS12#,YS120..SED198308-198708

L=1068

main63362-30100iMS122..4HC;MS122..RHD..ROY198308-198708

TRINDAD TOBACO SPEC,L=1056

main63362-30100iMS122..4HC;MS122..RHD..ROY198308-198708

THAILAND SPEC,L=1056

main63362-30100iYS120..SAL198308-198509

PHILIPPINE SPEC,L=1056

main63362-30110iMS122,YS120..RHD..MTM198308-198708

THAILAND SPEC,L=1059

main63362-30110iMS122..4HC;MS122..RHD..ROY198308-198708

TRINDAD TOBACO SPEC,L=1059

main63362-30110iYS120..SAL198308-198509

PHILIPPINE SPEC,L=1059

main63363-91704iMS122..WG198308-198708

63365SUPPORT, ROOF HEADLINING, NO.5

main63361-30080iLS120,MS12#,YS120..SED198308-198708

L=1059

main63361-30090iLS120,MS12#,YS120..SED198308-198708

L=1062

main63361-30100iMS122..4HC;MS122..RHD..ROY198308-198708

TRINDAD TOBACO SPEC,L=1050

main63361-30100iYS120..SAL198308-198509

PHILIPPINE SPEC,L=1050

main63361-30100iMS122..4HC;MS122..RHD..ROY198308-198708

THAILAND SPEC,L=1050

main63361-30110iMS122,YS120..RHD..MTM198308-198708

THAILAND SPEC,L=1053

main63361-30110iYS120..SAL198308-198509

PHILIPPINE SPEC,L=1053

main63361-30110iMS122,YS120..RHD..MTM198308-198708

TRINDAD TOBACO SPEC,L=1053

main63362-30080iLS120,MS12#,YS120..SED198308-198708

L=1065

sub63362-30090

main63362-30090iLS120,MS12#,YS120..SED198308-198708

L=1068

main63362-30100iMS122,YS120..RHD..MTM198308-198708

TRINDAD TOBACO SPEC,L=1056

main63362-30100iMS122..4HC;MS122..RHD..ROY198308-198708

THAILAND SPEC,L=1056

main63362-30100iYS120..SAL198308-198509

PHILIPPINE SPEC,L=1056

main63362-30110iMS122..4HC;MS122..RHD..ROY198308-198708

THAILAND SPEC,L=1059

main63362-30110iMS122..4HC;MS122..RHD..ROY198308-198708

TRINDAD TOBACO SPEC,L=1059

main63362-30110iYS120..SAL198308-198509

PHILIPPINE SPEC,L=1059

main63363-91704iMS122..WG198308-198708

63372RETAINER, HEADLINING SUPPORT

main63371-12050iMS122..4HC;MS122..RHD..ROY198308-198708

THILAND SPEC

main63371-12050iYS120..SAL198308-198509

PHILIPPINE SPEC

main63371-12050iMS122..4HC;MS122..RHD..ROY198308-198708

TRINIDAD TOBACO SPEC

main63371-30060iLS120,MS122,YS120..DLX,STD198308-198708

63381RETAINER, HEADLINING, FRONT

main63381-30050iLS120,MS12#,YS120198308-198708

main63381-30060iMS122,125..HT198509-198708

63387PAD, ROOF HEADLINING FORMING

main63387-30020iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

63388FRAME, ROOF HEADLINING FORMING

main63385-30030iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

63391TRIM, ROOF HEADLINING, FRONT

main63391-30060-02iMS122..WG198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub63391-30060

main63391-30060-04iLS120,YS120..STD198308-198708

BLUE,BLUE,TRIM8#

sub63391-30060

main63391-30060-05iLS120..4F;YS120..STD;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

sub63391-30060

main63391-30060-06iLS120..4F;LS120..LHD;MS122,YS120..DLX,STD198509-198708

BROWN,BROWN,TRIM4#

sub63391-30060

main63391-30060-12iMS122..WG198509-198708

MAROON,MAROON,TRIM3#

sub63391-30060

main63391-30070-02iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main63391-30070-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

BLUE,BLUE,TRIM8#

main63391-30070-05iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main63391-30070-06iMS12#..SED..(ROY,SAL)198509-198708

BROWN,BROWN,TRIM4#

main63391-30070-12iMS12#..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

main63391-30080-04iMS122,125..HT198509-198708

BLUE,BLUE,TRIM8#

sub63391-30080

main63391-30080-06iMS122..HT198509-198708

BROWN,BROWN,TRIM4#

sub63391-30080

main63391-30080-12iMS122,125..HT198509-198708

MAROON,MAROON,TRIM3#

sub63391-30080

63392TRIM, ROOF HEADLINING, REAR

main63392-30080-02iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub63392-30080

main63392-30080-04iLS120,MS12#,YS120..SED198308-198708

BLUE,BLUE,TRIM8#

sub63392-30080

main63392-30080-05iMS122..SED198308-198509

BEIGE,BEIGE,TRIM4#

sub63392-30080

main63392-30080-06iLS120..4F;LS120..LHD;MS12#,YS120..SED198509-198708

BROWN,BROWN,TRIM4#

sub63392-30080

main63392-30080-12iMS12#..SED..(ROY,SAL)198509-198708

MAROON,MAROON,TRIM3#

sub63392-30080

63395CLIP, ROOF HEADLINING TRIM

main63395-30010iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

9015860006

main90158-60006

9354014008

main93540-14008

19 parts on this diagram · 4 diagrams in section
